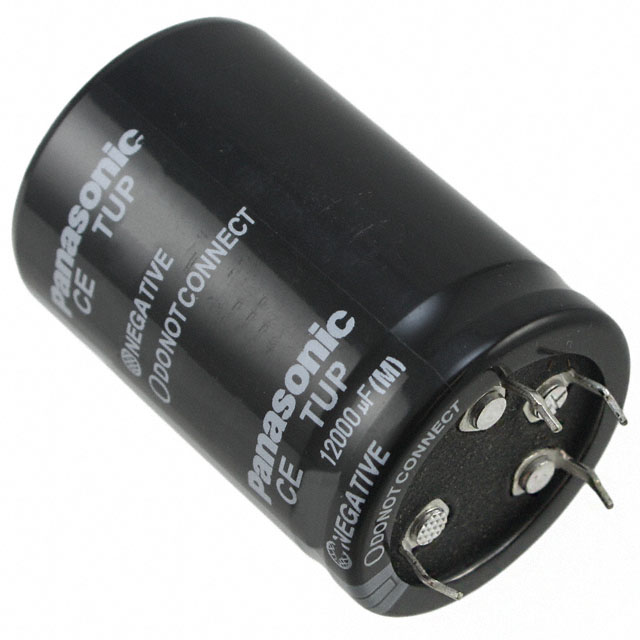

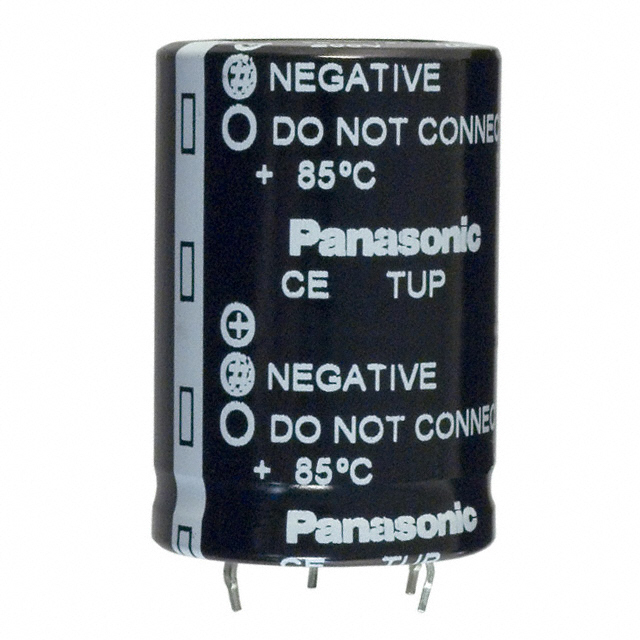

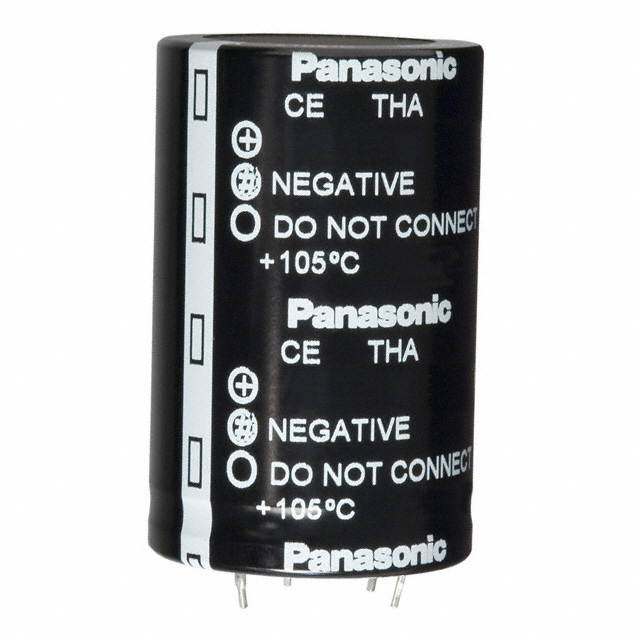

ECE-T1 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP ALUM 27000UF 20% 50V SNAP TH

Part	Applications	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Ripple Current @ Low Frequency	Mounting Type	Ripple Current @ High Frequency	Polarization	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components ECE-T1HP273EA	General Purpose	18 mOhm	3000 Hrs	1.378 "	35 mm	0.886 in	22.5 mm	20 %	85 °C	-40 C	50 VDC	8.31 A	Through Hole	9.557 A	Polar	27 mF	2.48 in	63 mm	Radial Can - Snap-In - 4 Lead
Panasonic Electronic Components ECE-T1CA104EA	General Purpose	15 mOhm	3000 Hrs	1.378 "	35 mm	0.886 in	22.5 mm	20 %	105 ░C	-40 C	16 V	8.03 A	Through Hole	9.235 A	Polar	100000 µF			Radial Can - Snap-In - 4 Lead	3.15 "	80 mm
Panasonic Electronic Components ECE-T1CP124FA	General Purpose	17 mOhm	3000 Hrs	1.575 in	40 mm	0.886 in	22.5 mm	20 %	85 °C	-40 C	16 V	12.42 A 120 Hz	Through Hole	14.28 A	Polar	0.12 F			Radial Can - Snap-In - 4 Lead	3.15 "	80 mm
Panasonic Electronic Components ECE-T1CA124FA	General Purpose	14 mOhms	3000 Hrs	1.575 in	40 mm	0.886 in	22.5 mm	20 %	105 ░C	-40 C	16 V	8.79 A	Through Hole	10.11 A	Polar	0.12 F			Radial Can - Snap-In - 4 Lead	3.15 "	80 mm
Panasonic Electronic Components ECE-T1EP563EA	General Purpose	15 mOhm	3000 Hrs	1.378 "	35 mm	0.886 in	22.5 mm	20 %	85 °C	-40 C	25 VDC	8.85 A	Through Hole	10.18 A	Polar	56000 µF	2.48 in	63 mm	Radial Can - Snap-In - 4 Lead
Panasonic Electronic Components ECE-T1JP223FA	General Purpose	23 mOhm	3000 Hrs	1.575 in	40 mm	0.886 in	22.5 mm	20 %	85 °C	-40 C	63 V		Through Hole		Polar	22000 µF			Radial Can - Snap-In - 4 Lead	3.15 "	80 mm
Panasonic Electronic Components ECE-T1EP104FA	General Purpose	12 mOhm	3000 Hrs	1.575 in	40 mm	0.886 in	22.5 mm	20 %	85 °C	-40 C	25 VDC	12.08 A	Through Hole	13.89 A	Polar	100000 µF			Radial Can - Snap-In - 4 Lead	3.15 "	80 mm
Panasonic Electronic Components ECE-T1HP333EA	General Purpose	15 mOhm	3000 Hrs	1.378 "	35 mm	0.886 in	22.5 mm	20 %	85 °C	-40 C	50 VDC	9.23 A	Through Hole	10.61 A	Polar	33000 µF			Radial Can - Snap-In - 4 Lead	3.15 "	80 mm
Panasonic Electronic Components ECE-T1VP333EA	General Purpose	18 mOhm	3000 Hrs	1.378 "	35 mm	0.886 in	22.5 mm	20 %	85 °C	-40 C	35 V	7.15 A	Through Hole	8.223 A	Polar	33000 µF	1.969 in	50 mm	Radial Can - Snap-In - 4 Lead
Panasonic Electronic Components ECE-T1JA153EA	General Purpose	24 mOhms	3000 Hrs	1.378 "	35 mm	0.886 in	22.5 mm	20 %	105 ░C	-40 C	63 V	4.92 A	Through Hole	5.658 A	Polar		2.48 in	63 mm	Radial Can - Snap-In - 4 Lead
