SC1566I Series

Catalog

IC REG LINEAR 1.8V 3A TO220-3

Part	Number of Regulators	Protection Features	Package / Case	Supplier Device Package	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Current - Output	Voltage - Output (Min/Fixed)	Current - Supply (Max) [Max]	Voltage Dropout (Max)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Control Features
Semtech Corporation SC1566IT-1.8T	1	Over Current Over Temperature	TO-220-3	TO-220	35 µA	5.5 V	3 A	1.8 V	1.75 mA	0.6 V	Through Hole	-40 C	150 °C	Positive
Semtech Corporation SC1566I5M2.5TRT	1	Over Current Over Temperature	D2PAK TO-263-6 TO-263BA	TO-263-5	35 µA	5.5 V	3 A	2.5 V	1.75 mA	0.6 V	Surface Mount	-40 C	150 °C	Positive	Enable
Semtech Corporation SC1566I5T-1.8T	1	Over Current Over Temperature	TO-220-5	TO-220-5	35 µA	5.5 V	3 A	1.8 V	1.75 mA	0.6 V	Through Hole	-40 C	150 °C	Positive	Enable
Semtech Corporation SC1566IM-1.8TRT	1	Over Current Over Temperature	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA	TO-263	35 µA	5.5 V	3 A	1.8 V	1.75 mA	0.6 V	Surface Mount	-40 C	150 °C	Positive
Semtech Corporation SC1566I5M1.8TRT	1	Over Current Over Temperature	D2PAK TO-263-6 TO-263BA	TO-263-5	35 µA	5.5 V	3 A	1.8 V	1.75 mA	0.6 V	Surface Mount	-40 C	150 °C	Positive	Enable

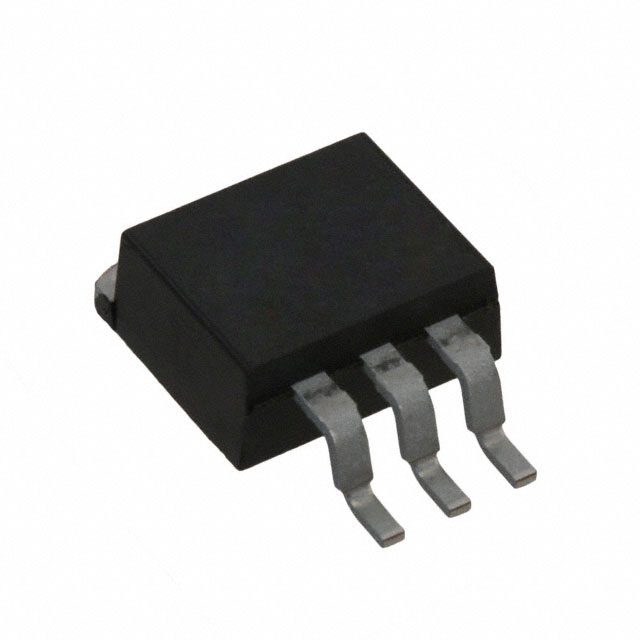

Semtech Corporation SC1566IM-2.5TRT	1	Over Current Over Temperature	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA	TO-263	35 µA	5.5 V	3 A	2.5 V	1.75 mA	0.6 V	Surface Mount	-40 C	150 °C	Positive
Semtech Corporation SC1566I5T-2.5T	1	Over Current Over Temperature	TO-220-5	TO-220-5	35 µA	5.5 V	3 A	2.5 V	1.75 mA	0.6 V	Through Hole	-40 C	150 °C	Positive	Enable
