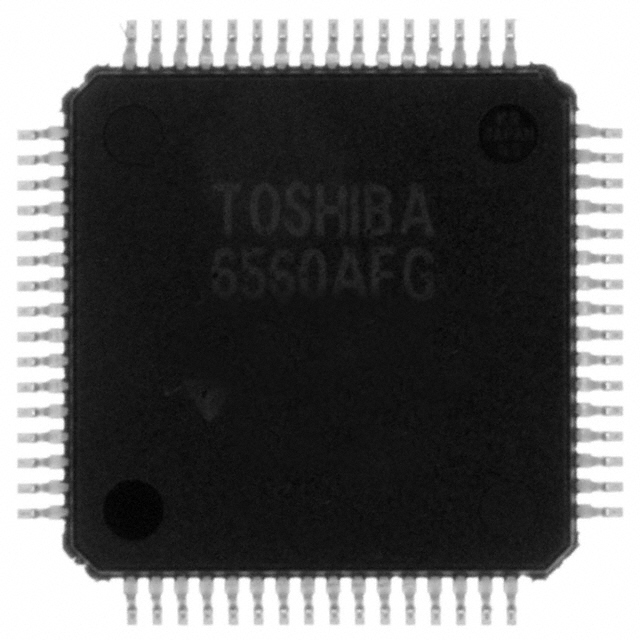

TB6560 Series
Manufacturer: Toshiba Semiconductor and Storage
Beta
⌘K
STEPPING MOTOR DRIVER, 40V/3.5A,
| Part | Supplier Device Package | Technology | Applications | Interface | Voltage - Supply [Max] | Voltage - Supply [Min] | Voltage - Load [Min] | Voltage - Load [Max] | Current - Output | Mounting Type | Function | Operating Temperature [Max] | Operating Temperature [Min] | Output Configuration | Package / Case | Step Resolution | Motor Type - Stepper |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Toshiba Semiconductor and Storage | 48-QFN (7x7) | Power MOSFET | General Purpose | Parallel | 5.5 V | 4.5 V | 4.5 V | 34 V | 2.5 A | Surface Mount | Driver - Fully Integrated Control and Power Stage | 85 °C | -30 °C | Half Bridge (4) | 48-VFQFN Exposed Pad | 1 1/16 1/2 1/4 1/8 | Bipolar |
Toshiba Semiconductor and Storage | 48-QFN (7x7) | Power MOSFET | General Purpose | Parallel | 5.5 V | 4.5 V | 4.5 V | 34 V | 1.5 A | Surface Mount | Driver - Fully Integrated Control and Power Stage | 85 °C | -30 °C | Half Bridge (4) | 48-VFQFN Exposed Pad | 1 1/16 1/2 1/4 1/8 | Bipolar |
 Toshiba Semiconductor and Storage | 64-HQFP (10x10) | General Purpose | Parallel | 5.5 V | 4.5 V | 4.5 V | 34 V | 1.5 A | Surface Mount | Driver - Fully Integrated Control and Power Stage | 85 °C | -30 ░C | Half Bridge (4) | 64-TQFP Exposed Pad | Bipolar |
