TR9CH9440 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

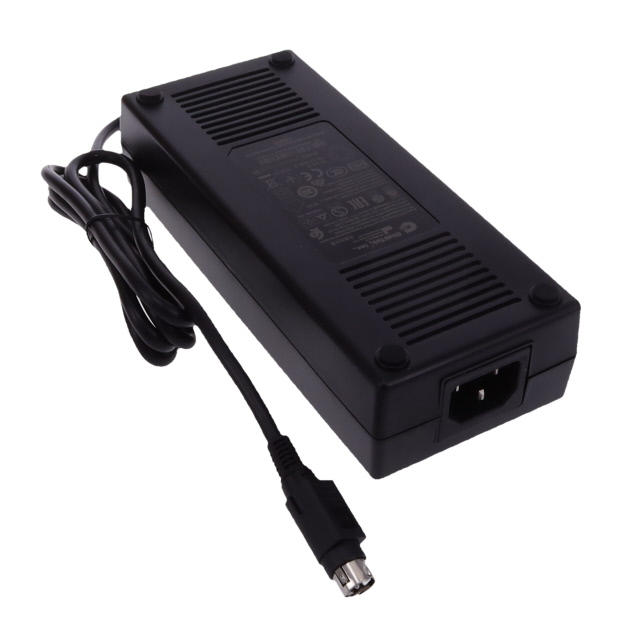

AC/DC DESKTOP ADAPTER 18V 170W
| Part | Power (Watts) | Form | Input Connector | Operating Temperature [Max] | Operating Temperature [Min] | Region Utilized | Input Type | Efficiency | Applications | Current - Output (Max) [Max] | Output Connector | Voltage - Input [Max] | Voltage - Input [Min] | Standard Number | Voltage - Output | No Load Power Consumption | Cord Length | Cord Length | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Polarization | Output Connector [diameter] | Output Connector [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | 170 W | Desktop (Class I) | IEC 320-C14 | 40 °C | -10 °C | International | Cord (Sold Separately) | CoC Tier 1 Level VI | Household Appliances ITE (Commercial) Medical | 9.44 A | Power DIN 4 Pin | 264 VAC | 90 VAC | 60335-1 60601-1 60950-1 62368-1 | 18 V | 150 mW | 1.2 m | 47.2 in | 2.91 in | 6.93 " | 40 mm | 74 mm | 1.58 in | 176 mm | |||
 GlobTek, Inc. | 170 W | Desktop (Class I) | Multi-Blade | 40 °C | -10 °C | International | Cord (Sold Separately) | CoC Tier 2 Level VI | Household Appliances ITE (Commercial) Medical | 9.44 A | Barrel Plug | 264 VAC | 90 VAC | 18 V | 150 mW | 1.2 m | 47.2 in | 2.91 in | 6.93 " | 40 mm | 74 mm | 1.58 in | 176 mm | Positive Center | 2.5 mm 5.5 mm | 11 mm | |
GlobTek, Inc. | 170 W | Desktop (Class I) | IEC 320-C14 | 40 °C | -10 °C | International | Cord (Sold Separately) | CoC Tier 2 Level VI | Household Appliances ITE (Commercial) Medical | 9.44 A | Barrel Plug | 264 VAC | 90 VAC | 18 V | 150 mW | 1.2 m | 47.2 in | 2.91 in | 6.93 " | 40 mm | 74 mm | 1.58 in | 176 mm | Positive Center | 2.1 mm 5.5 mm | 11 mm |
