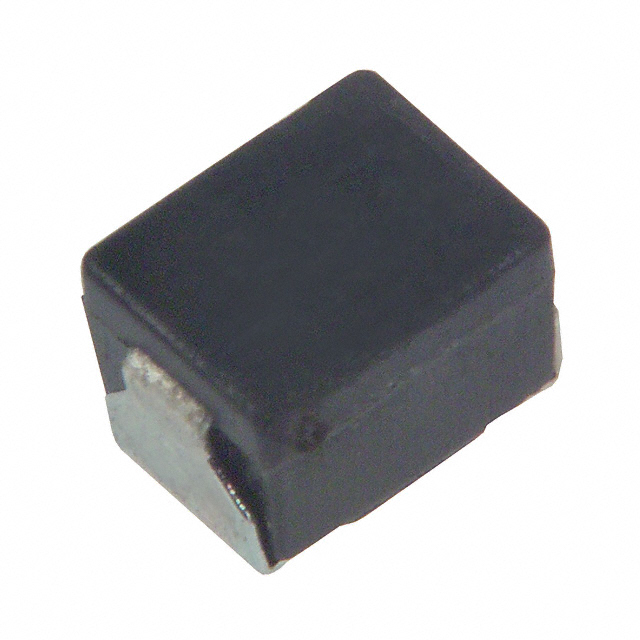

ELJ-NAR Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

FIXED IND 180NH 220MA 810MOHM SM

Part	Type	Inductance Frequency - Test	Q @ Freq	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Current Rating (Amps)	Frequency - Self Resonant	Shielding	Inductance	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material - Core	DC Resistance (DCR) [Max]
Panasonic Industrial Automation Sales ELJ-NAR18MF	Wirewound	25.2 MHz	10 25.2 MHz	20 %	0.094 "	2.4 mm	Surface Mount	0.22 A	320 MHz	Unshielded	180 nH	1210	3225 Metric	3.2 mm	2.5 mm	0.126 in	0.098 in	Non-Magnetic	810 mOhm
Panasonic Industrial Automation Sales ELJ-NAR47KF	Wirewound	1 MHz	10 25.2 MHz	10 %	0.094 "	2.4 mm	Surface Mount	175 mA	180 MHz	Unshielded	470 nH	1210	3225 Metric	3.2 mm	2.5 mm	0.126 in	0.098 in	Non-Magnetic	1.4 Ohm
Panasonic Industrial Automation Sales ELJ-NAR68KF	Wirewound	1 MHz	10 25.2 MHz	10 %	0.094 "	2.4 mm	Surface Mount	155 mA	150 MHz	Unshielded	0.68 µH	1210	3225 Metric	3.2 mm	2.5 mm	0.126 in	0.098 in	Non-Magnetic	1.7 Ohm
Panasonic Industrial Automation Sales ELJ-NAR56KF	Wirewound	1 MHz	10 25.2 MHz	10 %	0.094 "	2.4 mm	Surface Mount	0.17 A	160 MHz	Unshielded	560 nH	1210	3225 Metric	3.2 mm	2.5 mm	0.126 in	0.098 in	Non-Magnetic	1.5 Ohm
Panasonic Industrial Automation Sales ELJ-NAR12MF	Wirewound	25.2 MHz	10 25.2 MHz	20 %	0.094 "	2.4 mm	Surface Mount	0.24 A	400 MHz	Unshielded	120 nH	1210	3225 Metric	3.2 mm	2.5 mm	0.126 in	0.098 in	Non-Magnetic	670 mOhm
Panasonic Industrial Automation Sales ELJ-NAR10MF	Wirewound	100 MHz	10 100 MHz	20 %	0.094 "	2.4 mm	Surface Mount	360 mA	450 MHz	Unshielded	100 nH	1210	3225 Metric	3.2 mm	2.5 mm	0.126 in	0.098 in	Non-Magnetic	300 mOhm
