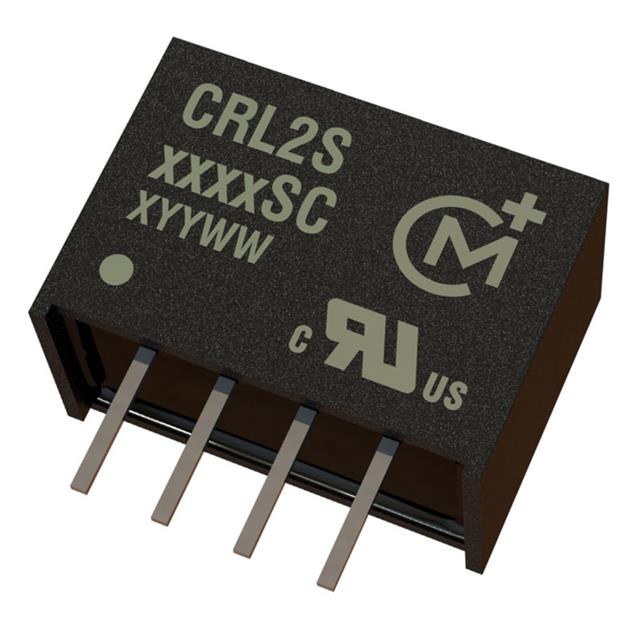

CRL2S Series
Manufacturer: Murata Electronics
Beta
⌘K
DC-DC CONVERTER, 5V, 0.4A
| Part | Number of Outputs | Type | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Package / Case | Applications | Voltage - Input (Max) [Max] | Mounting Type | Voltage - Isolation | Efficiency | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 1 | Isolated Module | 400 mA | 10.8 V | 4-SIP Module | ITE (Commercial) | 13.2 V | Through Hole | 1000 V | 81 % | 5 V | 85 °C | -40 C | 2 W | 7.5 mm | 14 mm | 10 mm | 0.3 " | 0.39 " | 0.55 in |
