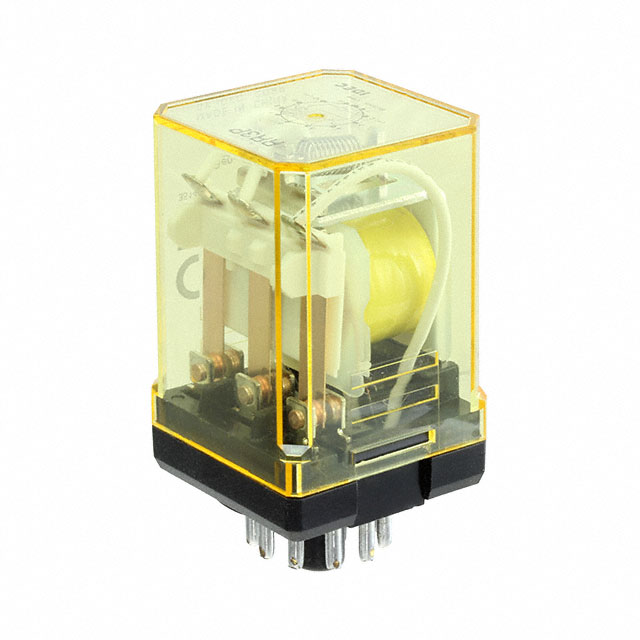

RR3P-U Series

Manufacturer: IDEC

Catalog

RELAY GEN PURPOSE 3PDT 10A 48V

Part	Coil Resistance	Coil Current	Release Time	Mounting Type	Coil Type	Must Operate Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Relay Type	Termination Style	Termination Style	Load - Max Switching	Contact Rating (Current)	Operate Time	Switching Voltage	Coil Voltage	Contact Material	Contact Form	Must Release Voltage	Approval Agency	Features
IDEC RR3P-UDC48V	1.6 kOhms	0.03 A	25 ms	Socketable	Non Latching	38.4 VDC	-25 °C	40 °C	General Purpose	11 Pin	Plug In	300 W 2400 VA	10 A	25 ms	30 VDC 240 VAC	48 VDC	Silver (Ag)	3PDT (3 Form C)	4.8 VDC	CE CSA cURus TUV
IDEC RR3P-UAC120V	2.1 kOhms	20.5 mA	25 ms	Socketable	Non Latching	96 VAC	-25 °C	40 °C	General Purpose	11 Pin	Plug In	300 W 2400 VA	10 A	25 ms	30 VDC 240 VAC	120 VAC	Silver (Ag)	3PDT (3 Form C)	36 VAC	CE CSA cURus TUV
IDEC RR3P-ULAC24V	79 Ohms	105 mA	25 ms	Socketable	Non Latching	19.2 VAC	-25 °C	40 °C	General Purpose	11 Pin	Plug In	300 W 2400 VA	10 A	25 ms	30 VDC 240 VAC	24 VAC	Silver (Ag)	3PDT (3 Form C)	7.2 VAC	CE CSA cURus TUV	Lighted Indicator
IDEC RR3P-UAC240V	8.33 kOhms	10.5 mA	25 ms	Socketable	Non Latching	192 VAC	-25 °C	40 °C	General Purpose	11 Pin	Plug In	300 W 2400 VA	10 A	25 ms	30 VDC 240 VAC	240 VAC/DC	Silver (Ag)	3PDT (3 Form C)	72 VAC/DC	CE CSA cURus TUV
IDEC RR3P-UAC110V	1.68 kOhms	23 mA	25 ms	Socketable	Non Latching	88 VAC/DC	-25 °C	40 °C	General Purpose	11 Pin	Plug In	300 W 2400 VA	10 A	25 ms	30 VDC 240 VAC	110 VAC/DC	Silver (Ag)	3PDT (3 Form C)	33 VAC	CE CSA cURus TUV
IDEC RR3P-ULDC12V	100 Ohms	0.12 A	25 ms	Socketable	Non Latching	9.6 VDC	-25 °C	40 °C	General Purpose	11 Pin	Plug In	300 W 2400 VA	10 A	25 ms	30 VDC 240 VAC	12 VDC	Silver (Ag)	3PDT (3 Form C)	1.2 VDC	CE CSA cURus TUV	Lighted Indicator
