053309 Series

Manufacturer: Molex

Catalog

0.8 BTB WAFERASSY RA SMT 26CKT E

Part	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions	Connector Type	Height Above Board	Height Above Board	Contact Finish
Molex 0533092671
Molex 0533092062

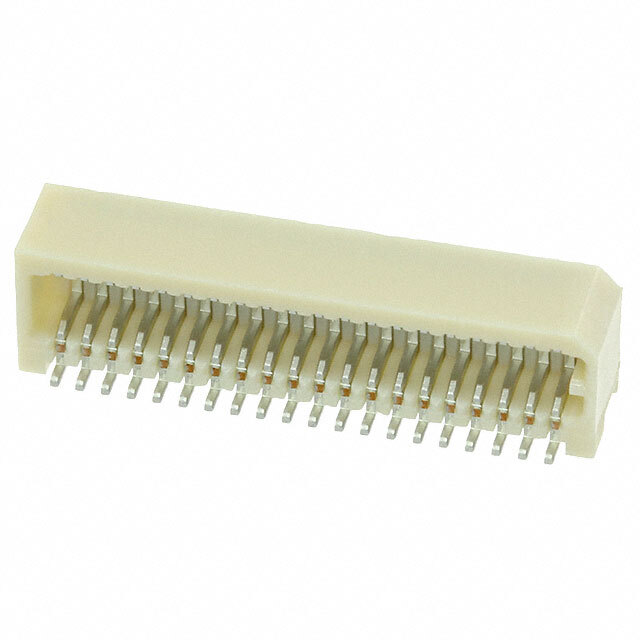

Molex 0533094091	2	120 µin	3.05 µm	Surface Mount Right Angle	0.8 mm	0.031 in	40	Header Outer Shroud Contacts	4.7 mm	0.185 in	Tin

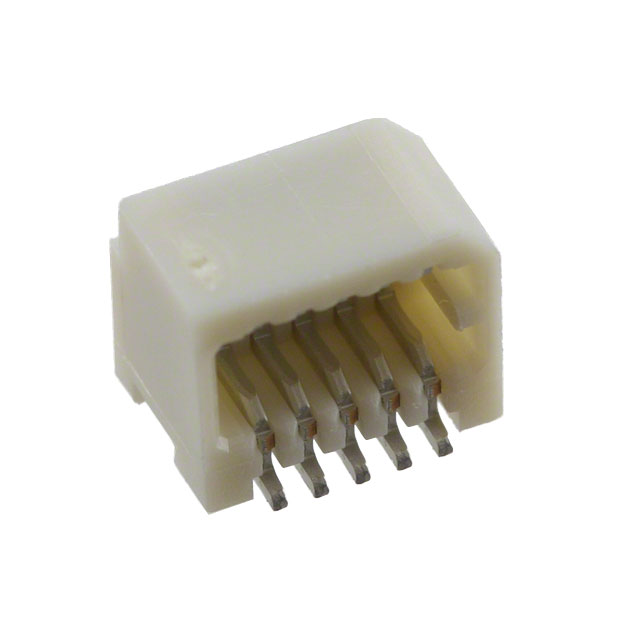

Molex 0533091070	2	120 µin	3.05 µm	Surface Mount Right Angle	0.8 mm	0.031 in	10	Header Outer Shroud Contacts	4.7 mm	0.185 in	Tin
Molex 0533094071	2	120 µin	3.05 µm	Surface Mount Right Angle	0.8 mm	0.031 in	40	Header Outer Shroud Contacts	4.7 mm	0.185 in	Tin
Molex 0533093070	2	120 µin	3.05 µm	Surface Mount Right Angle	0.8 mm	0.031 in	30	Header Outer Shroud Contacts	4.7 mm	0.185 in	Tin
Molex 0533092471	2	120 µin	3.05 µm	Surface Mount Right Angle	0.8 mm	0.031 in	24	Header Outer Shroud Contacts	4.7 mm	0.185 in	Tin
Molex 0533092670	2	120 µin	3.05 µm	Surface Mount Right Angle	0.8 mm	0.031 in	26	Header Outer Shroud Contacts	4.7 mm	0.185 in	Tin

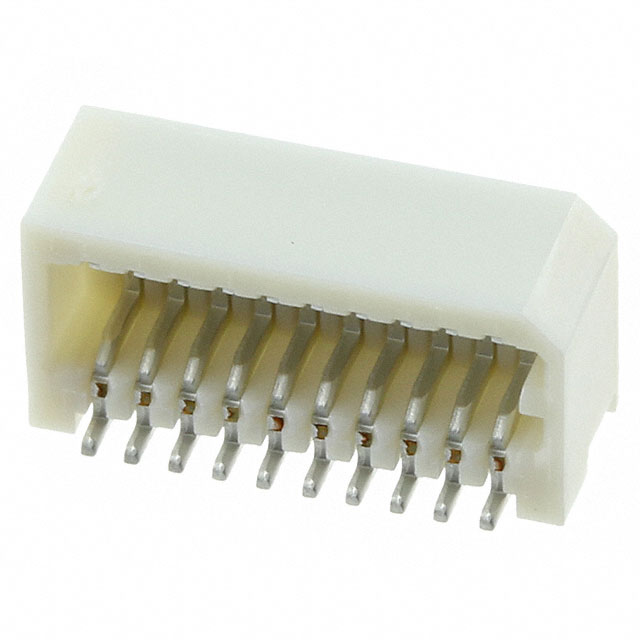

Molex 0533092070	2	120 µin	3.05 µm	Surface Mount Right Angle	0.8 mm	0.031 in	20	Header Outer Shroud Contacts	4.7 mm	0.185 in	Tin
Molex 0533093062
