TPWE121 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

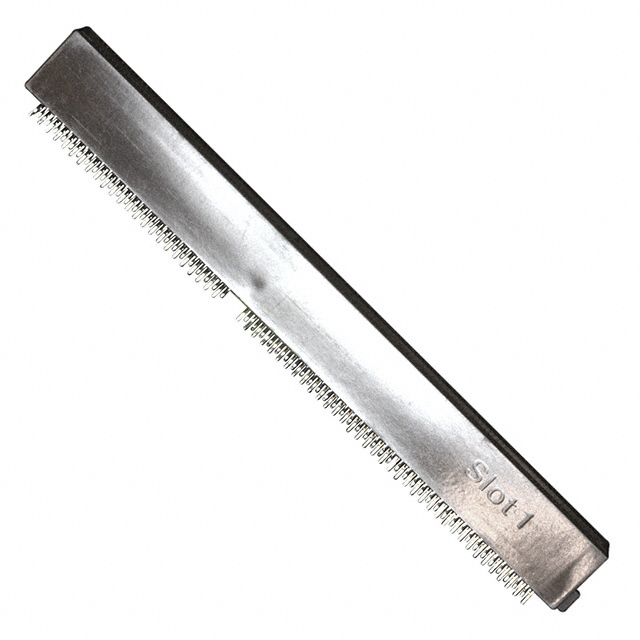

CONN CPU SLOT 1 FEMALE 242POS
| Part | Material - Insulation | Mounting Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Gender | Features | Pitch | Pitch | Card Type | Contact Type | Number of Rows [custom] | Read Out | Color | Number of Positions/Bay/Row | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Board Edge Straddle Mount | Gold | 5 µin | 0.127 µm | -55 C | 85 °C | Phosphor Bronze | Female | Card Extender | 1 mm | 0.039 in | CPU - Slot 1 | Cantilever | 2 | Dual | Brown | 48 73 | Solder |
