TPSM63610 Series
Manufacturer: Texas Instruments
Beta
⌘K

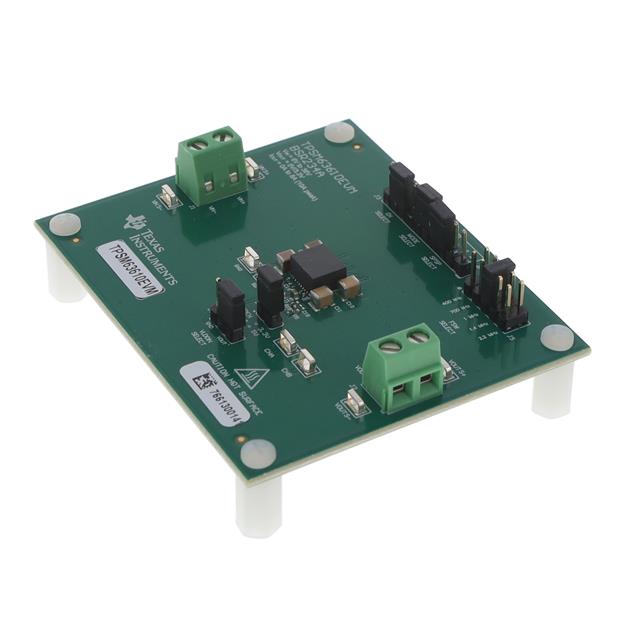

POWER MANAGEMENT IC DEVELOPMENT TOOLS TPSM63610 EVALUATION BOARD FOR 36-V INPU
| Part | Supplied Contents | Outputs and Type | Outputs and Type | Board Type | Regulator Topology | Current - Output | Voltage - Output | Utilized IC / Part | Voltage - Input [Max] | Voltage - Input [Min] | Contents | Main Purpose | Mounting Type | Applications | Number of Outputs | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Input (Min) [Min] | Efficiency | Supplier Device Package [y] | Supplier Device Package | Supplier Device Package [x] | Operating Temperature [Max] | Operating Temperature [Min] | Type | Features | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Buck | 8 A | 5 V | TPSM63610 | 36 V | 3 V | Board(s) | DC/DC Step Down | |||||||||||||||||||||||

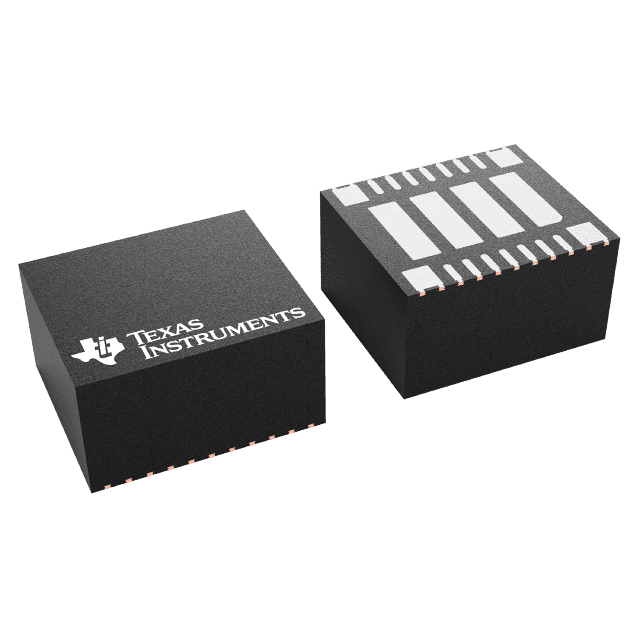

 Texas Instruments | Surface Mount | ITE (Commercial) | 1 | 8 A | 36 V | 0.26 in | 7.5 mm | 4 mm | 0.3 " | 0.16 in | 6.5 mm | 3 V | 94.3 % | 7.5 | 22-B3QFN | 6.5 | 125 °C | -40 C | Non-Isolated PoL Module | Adjustable Output Remote On/Off | 20 V | 1 V | 22-PowerBQFN Module |
