4006-2 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PC PIN CIRC .016DIA GOLD

Part	Length - Below Flange [x]	Length - Below Flange [x]	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Terminal Type	Insulation	Contact Finish	Termination	Mounting Type	Contact Material	Terminal Style	Pin Size - Below Flange [diameter]	Pin Size - Below Flange [diameter]	Length - Overall [x]	Length - Overall [x]	Length - Above Flange [x]	Length - Above Flange [x]
Mill-Max Manufacturing Corp. 4006-2-00-15-00-00-03-0	7.32 mm	0.288 in	0.25 Ám	10 Áin	0.034 in	0.86 mm	0.016 in	0.41 mm	PC Pin	Non-Insulated	Gold	Hex Press-Fit	Through Hole	Brass Alloy	Double End	0.016 in	0.41 mm	0.489 in	12.42 mm	0.118 in	3 mm
Mill-Max Manufacturing Corp. 4006-2-00-21-00-00-03-0	7.32 mm	0.288 in	0.51 µm	20 µin	0.034 in	0.86 mm	0.016 in	0.41 mm	PC Pin	Non-Insulated	Gold	Hex Press-Fit	Through Hole	Brass Alloy	Double End	0.016 in	0.41 mm	0.489 in	12.42 mm	0.118 in	3 mm
Mill-Max Manufacturing Corp. 4006-2-00-01-00-00-03-0	7.32 mm	0.288 in	5.08 Ám	200 Áin	0.034 in	0.86 mm	0.016 in	0.41 mm	PC Pin	Non-Insulated	Tin-Lead	Hex Press-Fit	Through Hole	Brass Alloy	Double End	0.016 in	0.41 mm	0.489 in	12.42 mm	0.118 in	3 mm
Mill-Max Manufacturing Corp. 4006-2-00-80-00-00-03-0	7.32 mm	0.288 in	5.08 Ám	200 Áin	0.034 in	0.86 mm	0.016 in	0.41 mm	PC Pin	Non-Insulated	Tin	Hex Press-Fit	Through Hole	Brass Alloy	Double End	0.016 in	0.41 mm	0.489 in	12.42 mm	0.118 in	3 mm

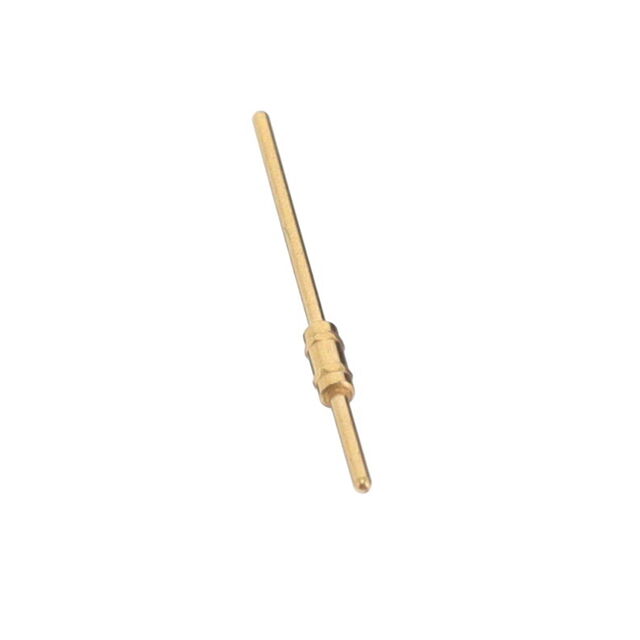

Mill-Max Manufacturing Corp. 4006-2-00-34-00-00-03-0	7.32 mm	0.288 in	1.27 µm	50 µin	0.034 in	0.86 mm	0.016 in	0.41 mm	PC Pin	Non-Insulated	Gold	Hex Press-Fit	Through Hole	Brass Alloy	Double End	0.016 in	0.41 mm	0.489 in	12.42 mm	0.118 in	3 mm
