1744107 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

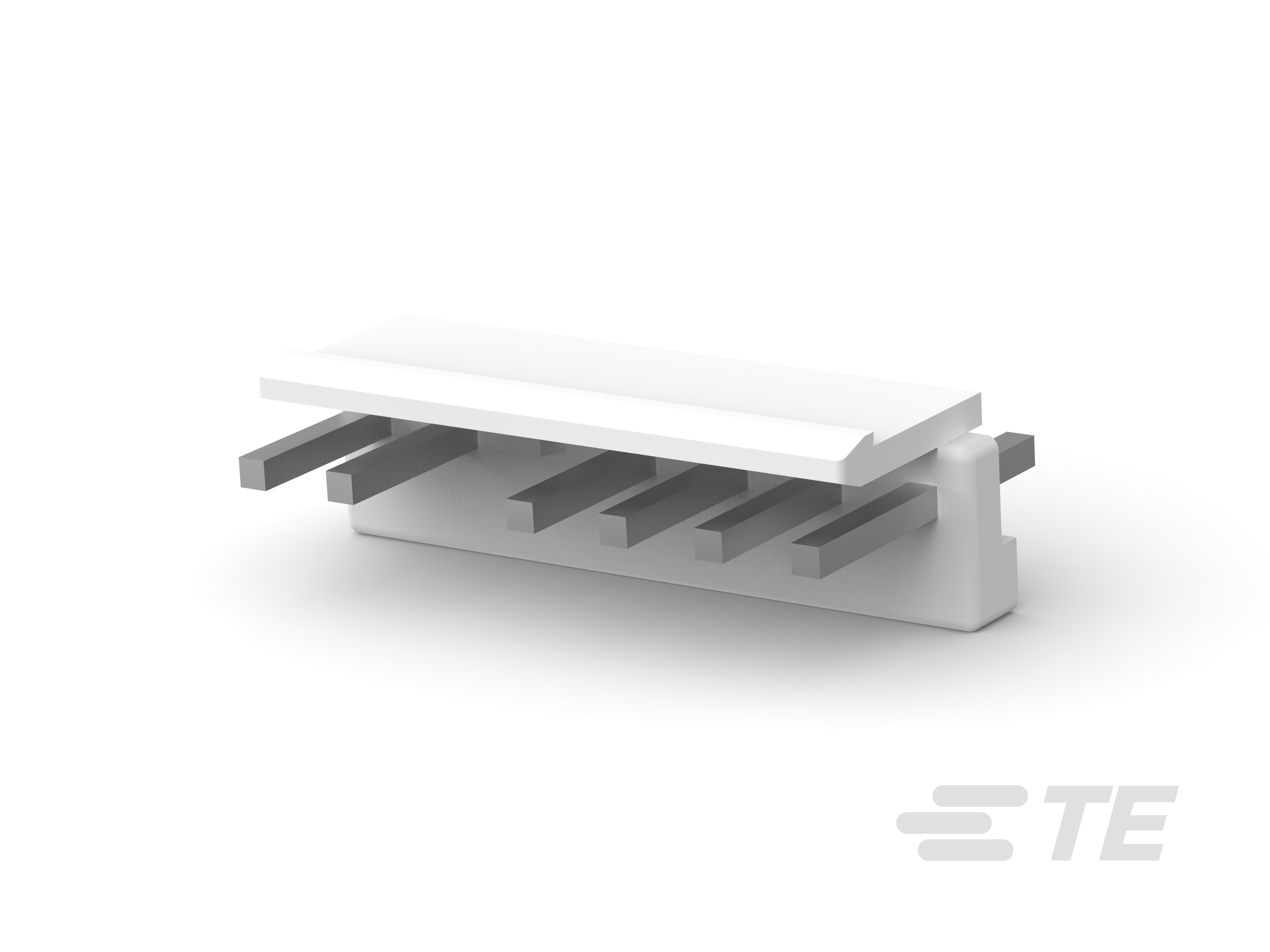

3.96 EPHDR ASSY 7P OMIT #3 PIN
| Part | Shrouding | Mounting Type | Voltage Rating | Overall Contact Length | Overall Contact Length | Material Flammability Rating | Insulation Material | Pitch - Mating | Pitch - Mating | Number of Rows | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Current Rating (Amps) | Contact Length - Mating | Contact Length - Mating | Contact Material | Contact Finish - Post | Contact Length - Post | Contact Length - Post | Contact Type | Termination | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions | Connector Type | Fastening Type | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Shrouded - 1 Wall | Through Hole | 250 VAC | 14.4 mm | 0.567 " | UL94 V-0 | Polybutylene Terephthalate (PBT) | 0.156 in | 3.96 mm | 1 | 1 µm | 39.4 µin | General Purpose Industrial Lighting | 7.5 A | 7.7 mm | 0.303 in | Brass | Tin | 0.145 in | 3.68 mm | Male Pin | Solder | 1 çm | 39.4 çin | 7 | Header | Locking Ramp | Square | -25 °C | 105 ░C | Natural | Board to Cable/Wire |
