SM05B-NS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

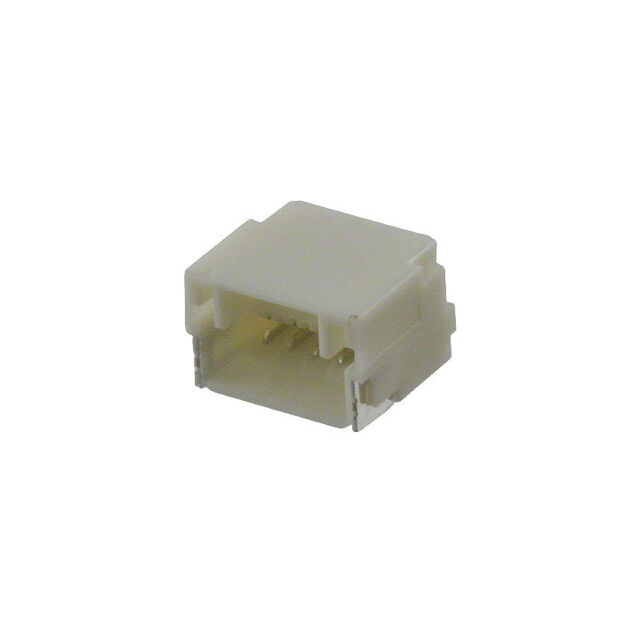

CONN HEADER SMD R/A 5POS 1MM
| Part | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Termination | Connector Type | Style | Shrouding | Material Flammability Rating | Features | Fastening Type | Contact Finish - Post | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Insulation Material | Number of Rows | Voltage Rating | Contact Type | Insulation Color | Number of Positions Loaded | Mounting Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 4.4 mm | 0.173 in | 1 mm | 0.039 in | Solder | Header | Board to Cable/Wire | Shrouded - 4 Wall | UL94 V-0 | Solder Retention | Latch Holder | Tin | 85 °C | -25 °C | 5 | Nylon Polyamide (PA) | 1 | 50 V | Male Pin | Natural | All | Right Angle Surface Mount | Copper Alloy |
