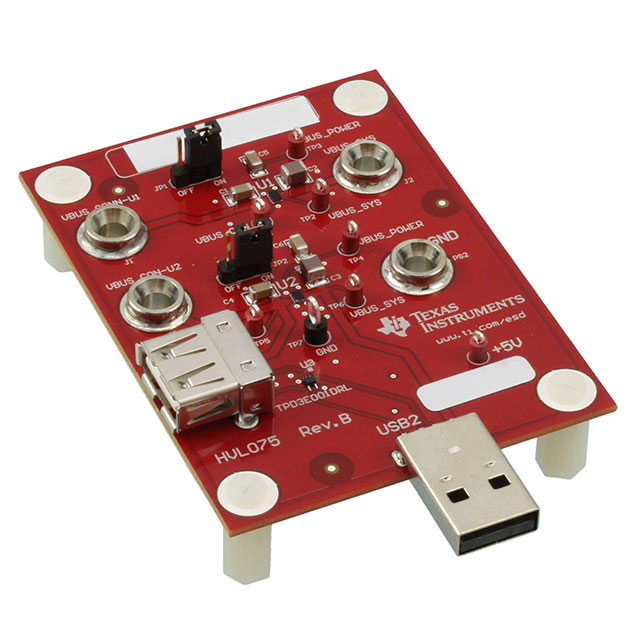

USB charger over voltage Surge and ESD protection
Key Features
• Overvoltage Protection at VBUS_CONup to 30-V DCPrecision OVP ( < ± 1% Tolerance)Low RONnFET Switch Supports Host and Charging ModeDedicated VBUS_POWERPin Offers Flexible Power up Options Under Dead Battery ConditionTransient Protection for VBUSLine:IEC 61000-4-2 Contact Discharge ±15 kVIEC 61000-4-2 Air Gap Discharge ±15 kVIEC 61000-4-5 Open Circuit Voltage 100 VPrecision Clamp Circuit Limits the VBUS_SYSVoltage < VOVPUSB Inrush Current CompliantThermal Shutdown (TSD) FeatureOvervoltage Protection at VBUS_CONup to 30-V DCPrecision OVP ( < ± 1% Tolerance)Low RONnFET Switch Supports Host and Charging ModeDedicated VBUS_POWERPin Offers Flexible Power up Options Under Dead Battery ConditionTransient Protection for VBUSLine:IEC 61000-4-2 Contact Discharge ±15 kVIEC 61000-4-2 Air Gap Discharge ±15 kVIEC 61000-4-5 Open Circuit Voltage 100 VPrecision Clamp Circuit Limits the VBUS_SYSVoltage < VOVPUSB Inrush Current CompliantThermal Shutdown (TSD) Feature
Description
AI
The TPD1S514 Family consists of single-chip protection solutions for 5-V, 9-V or 12-V USB VBUSlines, or other power buses. The bidirectional nFET switch ensures safe current flow in both charging and host mode while protecting the internal system circuits from any over voltage condition at the VBUS_CONpin. On the VBUS_CONpin, this device can handle over voltage protection up to 30-V DC. After theENpin toggles low, any device in the TPD1S514 Family waits 20 ms before turning ON the nFET through a soft start delay.
Typical application interfaces for the TPD1S514 Family are VBUSlines in USB connectors typically found in cell phones, tablets, eBooks, and portable media players. The TPD1S514 Family can also be applied to any system using an interface for a 5-V, 9-V, or 12-V power rail.
The TPD1S514 Family consists of single-chip protection solutions for 5-V, 9-V or 12-V USB VBUSlines, or other power buses. The bidirectional nFET switch ensures safe current flow in both charging and host mode while protecting the internal system circuits from any over voltage condition at the VBUS_CONpin. On the VBUS_CONpin, this device can handle over voltage protection up to 30-V DC. After theENpin toggles low, any device in the TPD1S514 Family waits 20 ms before turning ON the nFET through a soft start delay.
Typical application interfaces for the TPD1S514 Family are VBUSlines in USB connectors typically found in cell phones, tablets, eBooks, and portable media players. The TPD1S514 Family can also be applied to any system using an interface for a 5-V, 9-V, or 12-V power rail.
