RZE30 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FMALE 60POS 0.039
| Part | Material - Insulation | Contact Finish | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Type | Card Thickness | Card Thickness | Color | Termination | Number of Rows [custom] | Number of Positions/Bay/Row | Pitch | Pitch | Gender | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Contact Material | Mounting Type | Read Out | Number of Positions | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

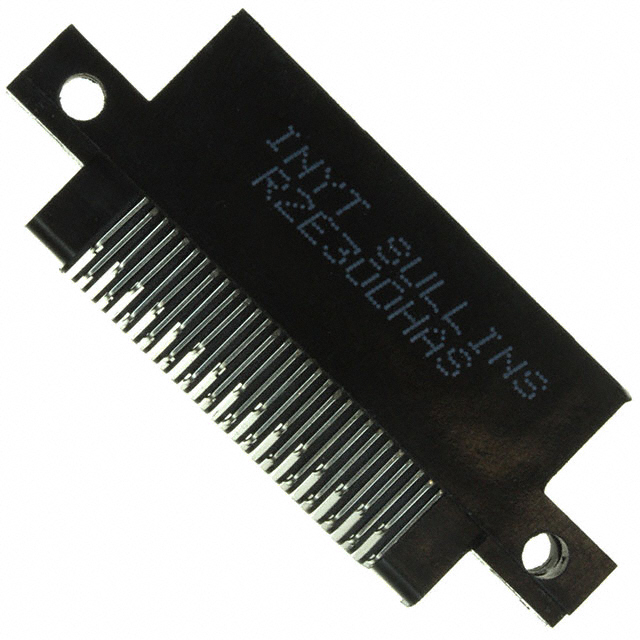

 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Gold | 0.125 " | Side Mount Opening Unthreaded | 3.18 mm | Hairpin Bellows | 1.57 mm | 0.062 in | Black | Solder Staggered | 2 | 30 | 1 mm | 0.039 in | Female | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Non Specified - Dual Edge | Phosphor Bronze | Right Angle Through Hole | Dual | 60 | |
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Gold | Hairpin Bellows | 1.57 mm | 0.062 in | Black | Solder | 2 | 30 | 1 mm | 0.039 in | Female | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Non Specified - Dual Edge | Phosphor Bronze | Board Edge Straddle Mount | Dual | 60 | Card Extender | |||
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Gold | Hairpin Bellows | 1.57 mm | 0.062 in | Black | Solder | 2 | 30 | 1 mm | 0.039 in | Female | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Non Specified - Dual Edge | Phosphor Bronze | Surface Mount | Dual | 60 | Board Lock |
