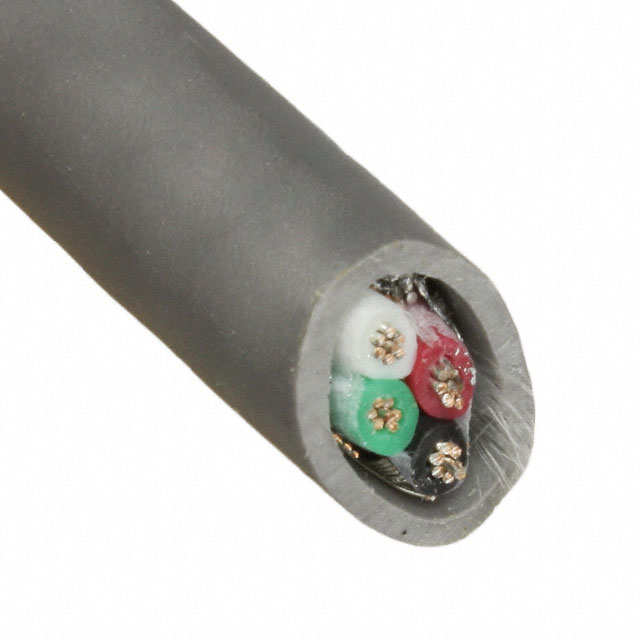

5154C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CBL 4COND 20AWG SHLD 1000=1000'
| Part | Shield Coverage | Shield Material | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Features | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Jacket Color | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Conductor Insulation | Usage | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 4 | -35 °C | 105 ░C | 20 AWG | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 2464 | 6.76 mm | 0.266 in | Copper Tinned | Slate | 300 VDC | 28 AWG | 7 | Multi-Conductor | Braid Foil | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Communication Control | ||||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 4 | -35 °C | 105 ░C | 20 AWG | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 2464 | 6.76 mm | 0.266 in | Copper Tinned | Slate | 300 VDC | 28 AWG | 7 | Multi-Conductor | Braid Foil | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Communication Control | 304.8 m | 1000 ft | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 4 | -35 °C | 105 ░C | 20 AWG | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 2464 | 6.76 mm | 0.266 in | Copper Tinned | Slate | 300 VDC | 28 AWG | 7 | Multi-Conductor | Braid Foil | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Communication Control | 100 ft | 30.5 m |
