AEDB-9340 Series

Catalog

ROTARY ENCODER OPTICAL 2500PPR

Part	Encoder Type	Termination Style	Output Type	Pulses per Revolution	Actuator Type	Mounting Type
Broadcom Limited AEDB-9340-W13C	Optical	Terminal Pins	Quadrature with Index (Incremental)	2500	8mm Open Center	Chassis Mount Motors
Broadcom Limited AEDB-9340-W13A	Optical	Terminal Pins	Quadrature with Index (Incremental)	2500	8mm Open Center	Chassis Mount Motors
Broadcom Limited AEDB-9340-L13A	Optical	Terminal Pins	Quadrature with Index (Incremental)	1250	8mm Open Center	Chassis Mount Motors

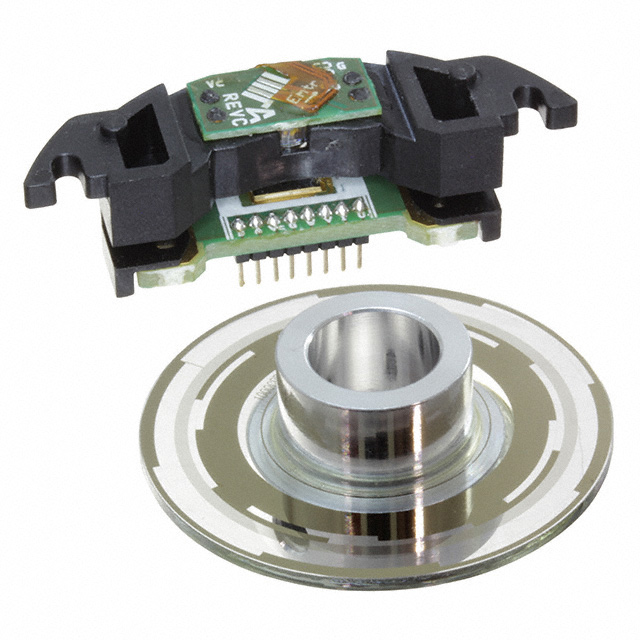

Broadcom Limited AEDB-9340-B13C	Optical	Terminal Pins	Quadrature with Index (Incremental)	1000	8mm Open Center	Chassis Mount Motors
Broadcom Limited AEDB-9340-W14C	Optical	Terminal Pins	Quadrature with Index (Incremental)	2500	5mm Open Center	Chassis Mount Motors
Broadcom Limited AEDB-9340-T13A	Optical	Terminal Pins	Quadrature with Index (Incremental)	2000	8mm Open Center	Chassis Mount Motors
Broadcom Limited AEDB-9340-W06C	Optical	Terminal Pins	Quadrature with Index (Incremental)	2500	1/4" Open Center	Chassis Mount Motors
Broadcom Limited AEDB-9340-T13C	Optical	Terminal Pins	Quadrature with Index (Incremental)	2000	8mm Open Center	Chassis Mount Motors
