KX14-40K Series

Catalog

CONN RCPT 40POS SMD GOLD

Part	Number of Rows [custom]	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Finish	Mounting Type	Number of Positions	Height Above Board [z]	Height Above Board [z]	Connector Type	Mated Stacking Heights
JAE Electronics KX14-40K8D-E650E	2	0.8 mm	0.031 in	0.1 Ám	4 Áin	Board Guide Solder Retention	Gold	Surface Mount	40	0.376 in	9.55 mm	Receptacle Outer Shroud Contacts

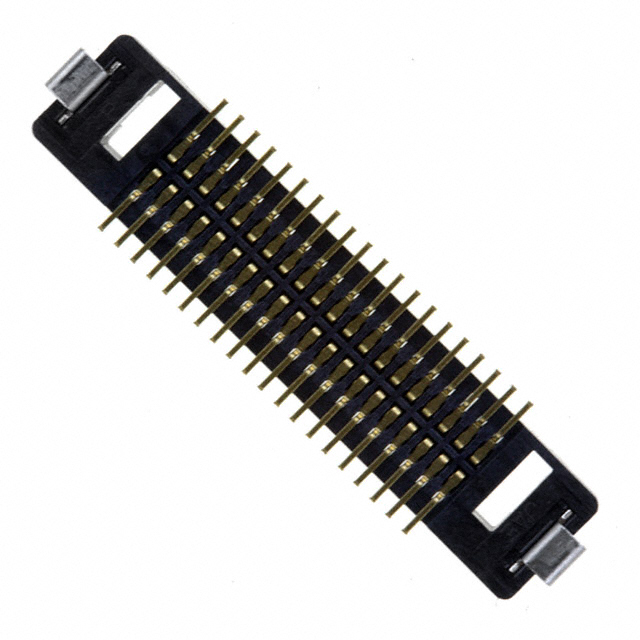

JAE Electronics KX14-40K2D-RE	2	0.8 mm	0.031 in	0.1 Ám	4 Áin	Board Guide Solder Retention	Gold	Surface Mount	40			Receptacle Outer Shroud Contacts	4 mm 5 mm 6 mm
JAE Electronics KX14-40K5D-R-E1000E	2	0.8 mm	0.031 in	0.1 Ám	4 Áin	Board Guide Solder Retention	Gold	Surface Mount	40	0.258 in	6.55 mm	Receptacle Outer Shroud Contacts	7 mm 8 mm 9 mm

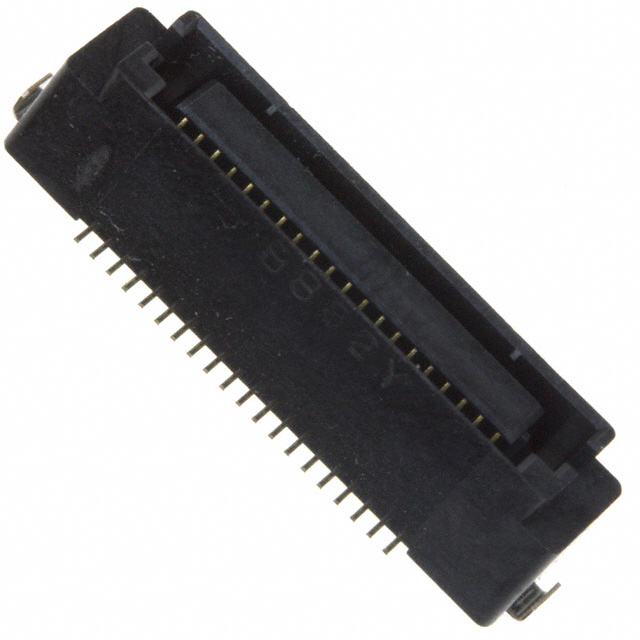

JAE Electronics KX14-40K5D-RE	2	0.8 mm	0.031 in	0.1 Ám	4 Áin	Board Guide Solder Retention	Gold	Surface Mount	40	0.258 in	6.55 mm	Receptacle Outer Shroud Contacts	7 mm 8 mm 9 mm
