796638 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERM BLOCK HDR 23POS 5.08MM

Part	Material Flammability Rating	Contact Material	Contact Tail Length	Contact Tail Length	Insulation Height [z]	Insulation Height [z]	Number of Levels	Number of Positions	Contact Mating Finish	Mounting Type	Color	Header Orientation	Positions Per Level	Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Voltage - UL	Pitch	Pitch	Features	Positions Per Level [custom]
TE Connectivity AMP Connectors 2-796638-3	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.329 in	8.36 mm	1	23	Tin	Through Hole	Green	90° Right Angle	23	Header Male Pins Shrouded (4 Side)	-40 C	110 °C	Solder	300 V	5.08 mm	0.2 in

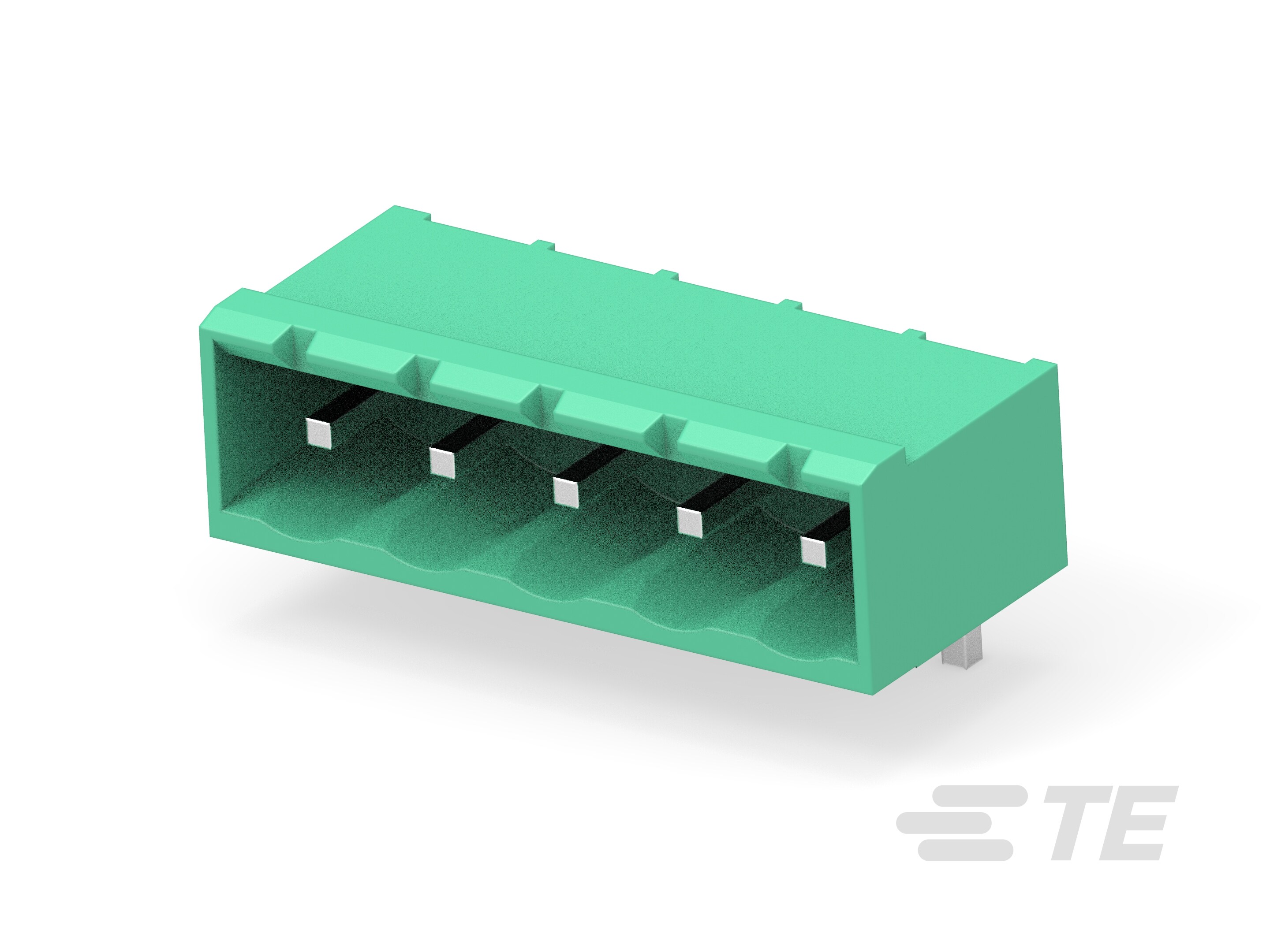

TE Connectivity AMP Connectors 796638-5	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.329 in	8.36 mm	1	5	Tin	Through Hole	Green	90° Right Angle	5	Header Male Pins Shrouded (4 Side)	-40 C	110 °C	Solder	300 V	5.08 mm	0.2 in

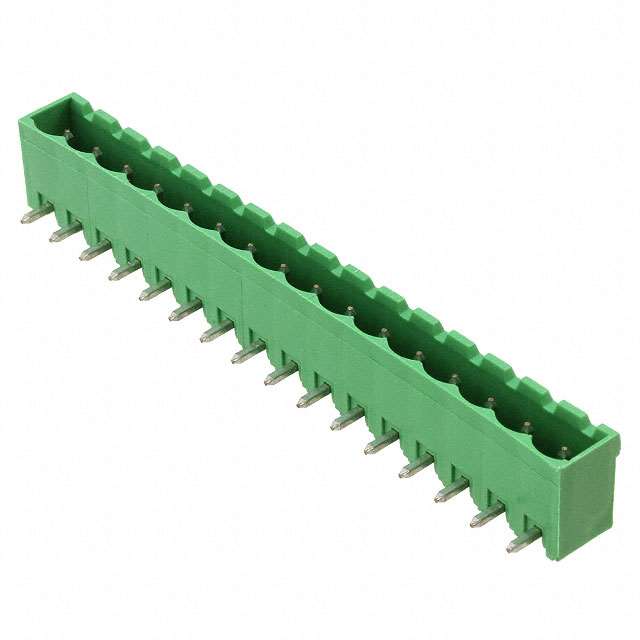

TE Connectivity AMP Connectors 1-796638-6	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.329 in	8.36 mm	1	16	Tin	Through Hole	Green	90° Right Angle	16	Header Male Pins Shrouded (4 Side)	-40 C	110 °C	Solder	300 V	5.08 mm	0.2 in

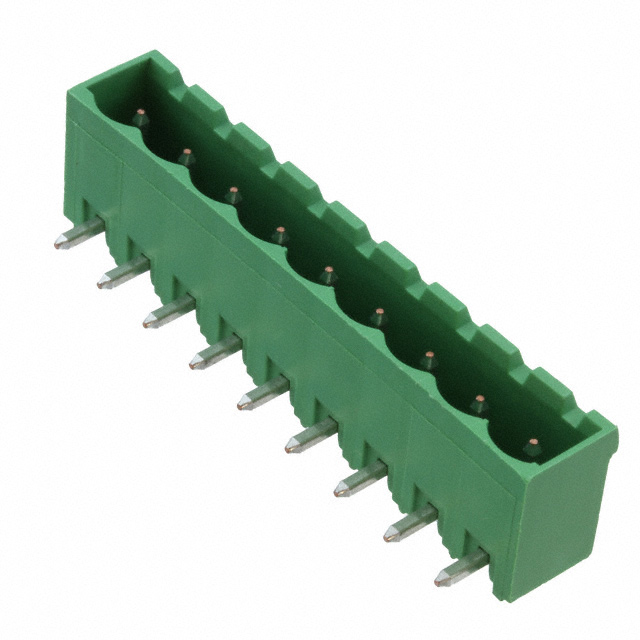

TE Connectivity AMP Connectors 796638-9	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.329 in	8.36 mm	1	9	Tin	Through Hole	Green	90° Right Angle	9	Header Male Pins Shrouded (4 Side)	-40 C	110 °C	Solder	300 V	5.08 mm	0.2 in
TE Connectivity AMP Connectors 2-796638-6	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.329 in	8.36 mm	1	10	Tin	Through Hole	Green	90° Right Angle	10	Header Male Pins Shrouded (4 Side)	-40 C	110 °C	Solder	300 V	5.08 mm	0.2 in	Positions Stamped
TE Connectivity AMP Connectors 1-796638-7	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.329 in	8.36 mm	1		Tin	Through Hole	Green	90° Right Angle	17	Header Male Pins Shrouded (4 Side)	-40 C	110 °C	Solder	300 V	5.08 mm	0.2 in
TE Connectivity AMP Connectors 1-796638-8	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.329 in	8.36 mm	1	18	Tin	Through Hole	Green	90° Right Angle	18	Header Male Pins Shrouded (4 Side)	-40 C	110 °C	Solder	300 V	5.08 mm	0.2 in

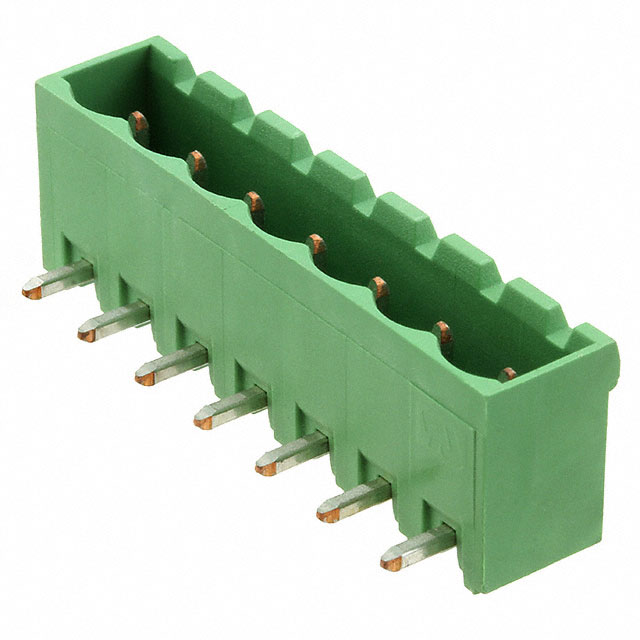

TE Connectivity AMP Connectors 796638-7	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.329 in	8.36 mm	1	7	Tin	Through Hole	Green	90° Right Angle		Header Male Pins Shrouded (4 Side)	-40 C	110 °C	Solder	300 V	5.08 mm	0.2 in		7

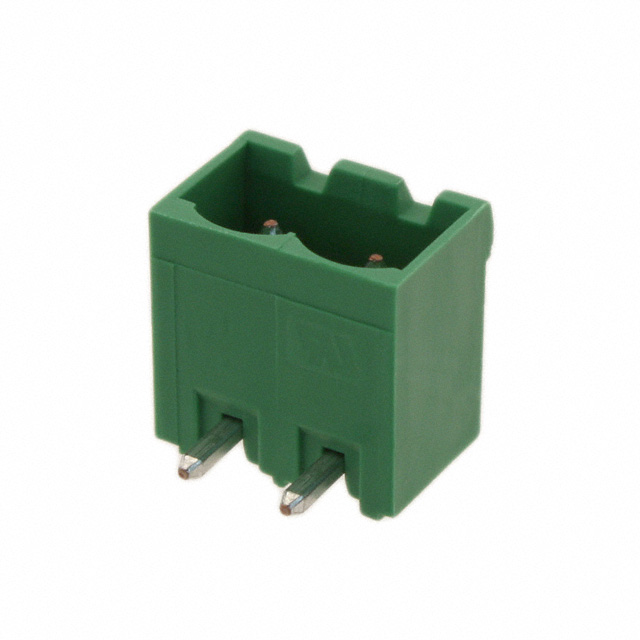

TE Connectivity AMP Connectors 796638-2	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.329 in	8.36 mm	1	2	Tin	Through Hole	Green	90° Right Angle	2	Header Male Pins Shrouded (4 Side)	-40 C	110 °C	Solder	300 V	5.08 mm	0.2 in
TE Connectivity AMP Connectors 2-796638-2	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.329 in	8.36 mm	1	22	Tin	Through Hole	Green	90° Right Angle	22	Header Male Pins Shrouded (4 Side)	-40 C	110 °C	Solder	300 V	5.08 mm	0.2 in
