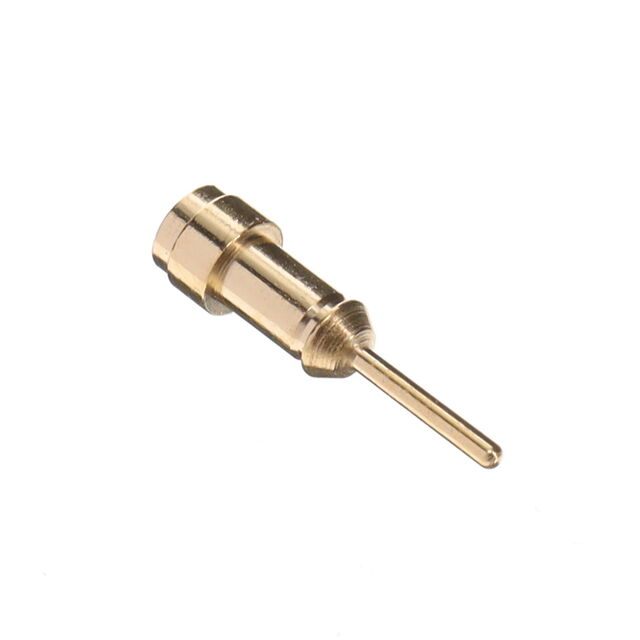

2956-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC
| Part | Contact Finish Thickness | Contact Finish Thickness | Terminal Type | Insulation | Contact Material | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Termination | Length - Above Flange | Length - Above Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Mounting Type | Terminal Style | Contact Finish | Length - Overall [x] | Length - Overall [x] | Length - Below Flange [x] | Length - Below Flange [x] | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.25 Ám | 10 Áin | PC Pin | Non-Insulated | Brass Alloy | 1.6 mm | 0.063 in | Press-Fit | 5.74 mm | 0.226 in | 0.018 in | 0.46 mm | Surface Mount | Single End | Gold | 0.278 in | 7.06 mm | 0.018 " | 0.46 mm | 0.072 " | 1.83 mm |
