LM5006 Series

6-75V Wide Vin, 600mA Constant On-Time Non-Synchronous Buck Regulator

Catalog

6-75V Wide Vin, 600mA Constant On-Time Non-Synchronous Buck Regulator

Part	Voltage - Output (Min/Fixed)	Output Configuration	Mounting Type	Voltage - Input (Min) [Min]	Function	Supplier Device Package	Topology	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Output Type	Current - Output	Voltage - Input (Max) [Max]	Package / Case	Package / Case [x]	Package / Case [x]	Synchronous Rectifier	Voltage - Output (Max) [Max]	Voltage - Output	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Frequency - Switching	Regulator Topology	Main Purpose	Utilized IC / Part	Board Type	Supplied Contents
Texas Instruments LM5006MM/NOPB	2.5 V	Positive	Surface Mount	6 V	Step-Down	10-VSSOP	Buck	-40 °C	125 ¯C	1	Adjustable	600 mA	75 V	10-MSOP 10-TFSOP	3 mm	0.118 in		75 V

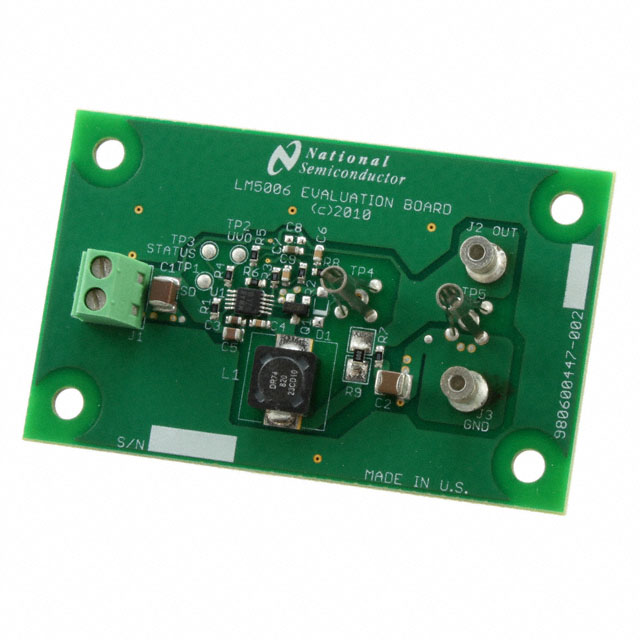

Texas Instruments LM5006EVAL/NOPB												500 mA							5 V	Non-Isolated	1	6 V	75 V	200 kHz	Buck	DC/DC Step Down	LM5006	Fully Populated	Board(s)

Catalog

6-75V Wide Vin, 600mA Constant On-Time Non-Synchronous Buck Regulator

Key Features

• Operating Input Voltage Range: 6V to 75VIntegrated 80V, N-Channel Buck SwitchInternal Start-Up RegulatorNo Loop Compensation RequiredUltra-Fast Transient ResponseOperating Frequency Remains Constant with Line and Load VariationsAdjustable Output Voltage from 2.5VPrecision Internal Reference, ±2.5%Intelligent Current Limit Reduces FoldbackProgrammable Input UV Detector with Status Flag OutputGate Output Driver for Synchronous RectifierPre-Charge Switch Enables Bootstrap Gate Drive with no LoadThermal ShutdownPackageVSSOP - 10All trademarks are the property of their respective owners.Operating Input Voltage Range: 6V to 75VIntegrated 80V, N-Channel Buck SwitchInternal Start-Up RegulatorNo Loop Compensation RequiredUltra-Fast Transient ResponseOperating Frequency Remains Constant with Line and Load VariationsAdjustable Output Voltage from 2.5VPrecision Internal Reference, ±2.5%Intelligent Current Limit Reduces FoldbackProgrammable Input UV Detector with Status Flag OutputGate Output Driver for Synchronous RectifierPre-Charge Switch Enables Bootstrap Gate Drive with no LoadThermal ShutdownPackageVSSOP - 10All trademarks are the property of their respective owners.

Description

The LM5006 Step Down Switching Regulator features all of the functions needed to implement a low cost, efficient Buck bias regulator. This high voltage regulator contains an 80V N-Channel MOSFET Switch and a startup regulator. The device is easy to implement and is provided in an VSSOP-10 package. The regulator’s control scheme uses an on-time inversely proportional to VIN. This feature results in the operating frequency remaining relatively constant with line and load variations. The control scheme requires no loop compensation, resulting in fast transient response. An intelligent current limit is implemented with a forced off-time which is inversely proportional to VOUT. This scheme ensures short circuit control while providing minimum foldback. Other features include: Thermal Shutdown, VCC Under Voltage Lock-out, Max Duty Cycle Limiter, a Pre-charge Switch, a programmable Under Voltage Detector with a status flag output, and a gate driver output for a synchronous rectifier. The LM5006 Step Down Switching Regulator features all of the functions needed to implement a low cost, efficient Buck bias regulator. This high voltage regulator contains an 80V N-Channel MOSFET Switch and a startup regulator. The device is easy to implement and is provided in an VSSOP-10 package. The regulator’s control scheme uses an on-time inversely proportional to VIN. This feature results in the operating frequency remaining relatively constant with line and load variations. The control scheme requires no loop compensation, resulting in fast transient response. An intelligent current limit is implemented with a forced off-time which is inversely proportional to VOUT. This scheme ensures short circuit control while providing minimum foldback. Other features include: Thermal Shutdown, VCC Under Voltage Lock-out, Max Duty Cycle Limiter, a Pre-charge Switch, a programmable Under Voltage Detector with a status flag output, and a gate driver output for a synchronous rectifier.
