XPEBWT Series

Manufacturer: Cree LED

Catalog

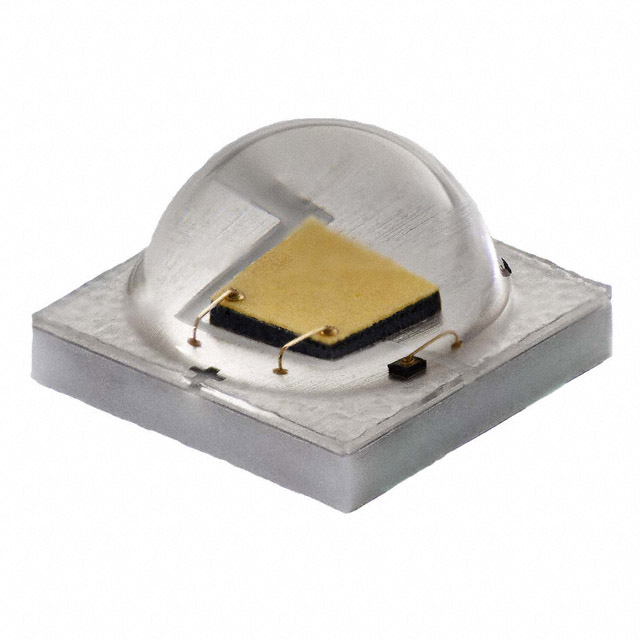

LED XLAMP NEUTRAL WHT 4250K 2SMD

...

Part	Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Max [Max]	Mounting Type	Viewing Angle	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Color	Lumens/Watt @ Current - Test	Thermal Resistance of Package [diameter]	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test	Flux @ 85°C, Current - Test [Min]	CRI (Color Rendering Index)	CCT (K)	Supplier Device Package	Thermal Resistance of Package [custom]
Cree LED XPEBWT-L1-0000-00CF5	350 mA	2.39 mm	0.094 "	1 A	Surface Mount	110 °	3535 Metric	1414	3.45 mm	0.136 in	0.136 in	3.45 mm	2.9 V	Neutral White	102 lm/W	9 °C/W	107 lm	104 lm	100 lm
Cree LED XPEBWT-L1-R250-00DF7	350 mA	2.39 mm	0.094 "	1 A	Surface Mount	110 °	3535 Metric	1414	3.45 mm	0.136 in	0.136 in	3.45 mm	2.9 V	Warm White	109 lm/W	9 °C/W	114 lm	111 lm	107 lm	80	3250 K
Cree LED XPEBWT-L1-0000-009AA	350 mA	2.39 mm	0.094 "	1 A	Surface Mount	110 °	3535 Metric	1414	3.45 mm	0.136 in	0.136 in	3.45 mm	2.9 V	Warm White	83 lm/W	9 °C/W		84			2700 K
Cree LED XPEBWT-L1-0000-00FE1	350 mA	2.39 mm	0.094 "	1 A	Surface Mount	110 °	3535 Metric	1414	3.45 mm	0.136 in	0.136 in	3.45 mm	2.9 V	Cool White		9 °C/W				70	6500 K
Cree LED XPEBWT-H1-R250-006ZA	350 mA	2.39 mm	0.094 "	1 A	Surface Mount	110 °	3535 Metric	1414	3.45 mm	0.136 in	0.136 in	3.45 mm	2.9 V	White	64 lm/W	9 °C/W	67 lm	65 lm	62 lm
Cree LED XPEBWT-L1-0000-00EZ5	350 mA	2.39 mm	0.094 "	1.5 A	Surface Mount	110 °	3535 Metric	1414	3.45 mm	0.136 in	0.136 in	3.45 mm	2.84 V	Neutral White	119 lm/W		122 lm	118 lm	114 lm		4000 K	1414	5.8 °C/W
Cree LED XPEBWT-L1-0000-00DA6	350 mA	2.39 mm	0.094 "	1 A	Surface Mount	110 °	3535 Metric	1414	3.45 mm	0.136 in	0.136 in	3.45 mm	2.9 V	Warm White	109 lm/W	9 °C/W	114 lm	111 lm	107 lm		3500 K
Cree LED XPEBWT-L1-0000-00FZ7	350 mA	2.39 mm	0.094 "	1 A	Surface Mount	110 °	3535 Metric	1414	3.45 mm	0.136 in	0.136 in	3.45 mm	2.84 V	Warm White	127 lm/W	10 °C/W				80		1414
Cree LED XPEBWT-L1-0000-00GF5	350 mA	2.39 mm	0.094 "	1.5 A	Surface Mount	110 °	3535 Metric	1414	3.45 mm	0.136 in	0.136 in	3.45 mm	2.84 V	Neutral White	136 lm/W		139 lm		130 lm			1414	5.8 °C/W
Cree LED XPEBWT-L1-0000-00C53	350 mA	2.39 mm	0.094 "	1 A	Surface Mount	110 °	3535 Metric	1414	3.45 mm	0.136 in	0.136 in	3.45 mm	2.9 V	Cool White	102 lm/W	9 °C/W	107 lm	104 lm	100 lm	70	6000 K
