ATE2E Series

Catalog

SWITCH TOGGLE DPDT 0.05A 48V

Part	Electrical Life	Mounting Type	Switch Function	Actuator Length [x]	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Bushing Thread	Voltage Rating - AC	Circuit	Features	Voltage Rating - DC	Termination Style	Illumination	Current Rating (Amps)
Nidec Components Corporation ATE2E-6M3-10-Z	50000 Cycles	Right Angle Through Hole	On-Off-On	6 mm	Standard Round	85 °C	-20 ░C	Unthreaded	48 V	DPDT	Washable	48 V	PC Pin	Non-Illuminated	50 mA

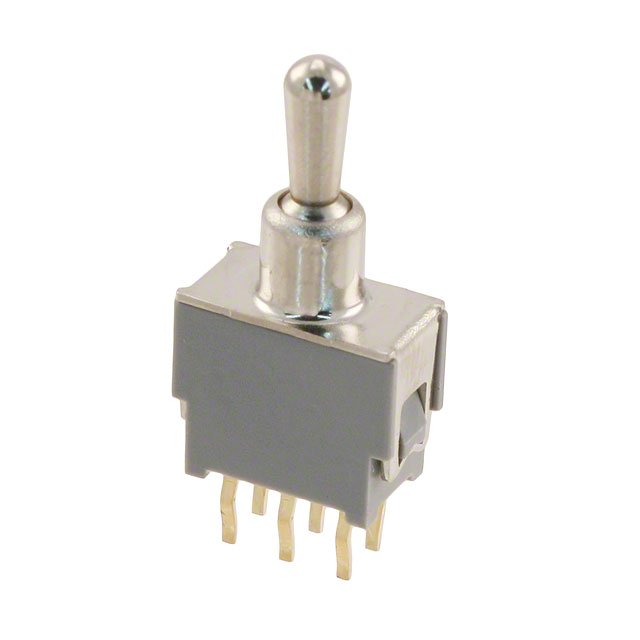

Nidec Components Corporation ATE2E-2M3-10-Z	50000 Cycles	Through Hole	On-Off-On	6 mm	Standard Round	85 °C	-20 ░C	Unthreaded	48 V	DPDT	Washable	48 V	PC Pin	Non-Illuminated	50 mA
Nidec Components Corporation ATE2E-5M3-10-Z	50000 Cycles	Right Angle Through Hole	On-Off-On	6 mm	Standard Round	85 °C	-20 ░C	Unthreaded	48 V	DPDT	Washable	48 V	PC Pin	Non-Illuminated	50 mA
