TPS563201 Series
Manufacturer: Texas Instruments
Beta
⌘K
CONV DC-DC 4.5V TO 17V SYNCHRONOUS STEP DOWN SINGLE-OUT 0.76V TO 7V 3A 6-PIN TSOT-23 T/R
| Part | Function | Supplier Device Package | Number of Outputs | Output Configuration | Current - Output | Voltage - Output (Min/Fixed) | Package / Case | Synchronous Rectifier | Topology | Voltage - Input (Max) [Max] | Frequency - Switching | Voltage - Input (Min) [Min] | Mounting Type | Voltage - Output (Max) [Max] | Output Type | Operating Temperature [Min] | Operating Temperature [Max] | Outputs and Type | Outputs and Type | Supplied Contents | Board Type | Utilized IC / Part | Voltage - Output | Contents | Voltage - Input [Min] | Voltage - Input [Max] | Main Purpose | Regulator Topology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Step-Down | SOT-23-THIN | 1 | Positive | 3 A | 0.768 V | SOT-23-6 Thin TSOT-23-6 | Buck | 17 V | 580 kHz | 4.5 V | Surface Mount | 7 V | Adjustable | -40 C | 125 °C | ||||||||||||
 Texas Instruments | Step-Down | SOT-23-THIN | 1 | Positive | 3 A | 0.768 V | SOT-23-6 Thin TSOT-23-6 | Buck | 17 V | 580 kHz | 4.5 V | Surface Mount | 7 V | Adjustable | -40 C | 125 °C | ||||||||||||

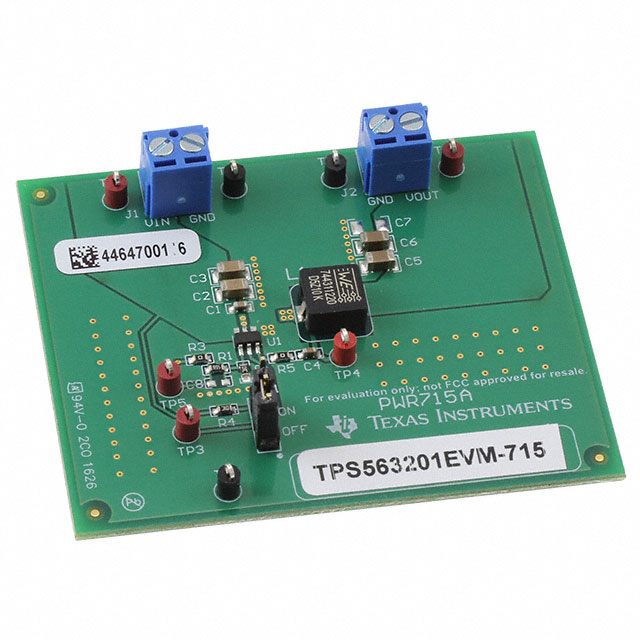

 Texas Instruments | 3 A | 580 kHz | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) | Fully Populated | TPS563201 | 1.05 V | Board(s) | 4.5 V | 17 V | DC/DC Step Down | Buck |
