892-076 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 76POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Bay/Row [custom]	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Card Type	Pitch	Pitch	Number of Rows [custom]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Gender	Contact Type	Read Out	Color	Mounting Type	Contact Finish	Termination	Features
EDAC Inc. 892-076-520-204	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C	38	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	76	Non Specified - Dual Edge	0.1 "	2.54 mm	2	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Female	Cantilever	Dual	Black	Through Hole	Gold	Solder

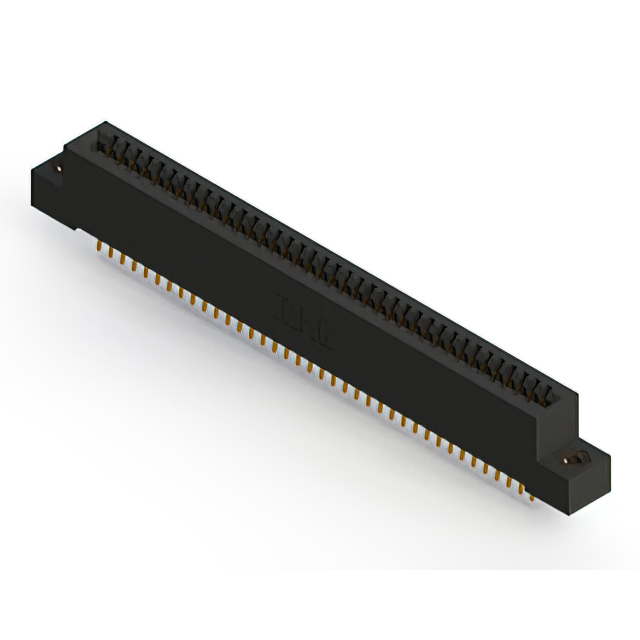

EDAC Inc. 892-076-556-208	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C	38	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	76	Non Specified - Dual Edge	0.1 "	2.54 mm	2	4-40 Flush Mount Threaded Insert Top Opening			Female	Cantilever	Dual	Black	Board Edge Straddle Mount	Gold	Solder	Card Extender
EDAC Inc. 892-076-555-212	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C	38	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	76	Non Specified - Dual Edge	0.1 "	2.54 mm	2	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Female	Cantilever	Dual	Black	Board Edge Straddle Mount	Gold	Solder	Card Extender
EDAC Inc. 892-076-521-208	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C	38	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	76	Non Specified - Dual Edge	0.1 "	2.54 mm	2	4-40 Flush Mount Threaded Insert Top Opening			Female	Cantilever	Dual	Black	Through Hole	Gold	Solder
EDAC Inc. 892-076-540-201	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C	38	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	76	Non Specified - Dual Edge	0.1 "	2.54 mm	2				Female	Cantilever	Dual	Black	Through Hole	Gold	Wire Wrap
EDAC Inc. 892-076-559-212	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C	38	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	76	Non Specified - Dual Edge	0.1 "	2.54 mm	2	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Female	Cantilever	Dual	Black	Right Angle Through Hole	Gold	Solder
EDAC Inc. 892-076-559-202	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C	38	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	76	Non Specified - Dual Edge	0.1 "	2.54 mm	2	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Female	Cantilever	Dual	Black	Right Angle Through Hole	Gold	Solder
EDAC Inc. 892-076-500-203	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C	38	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	76	Non Specified - Dual Edge	0.1 "	2.54 mm	2	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Female	Cantilever	Dual	Black	Through Hole	Gold	Solder Eyelet(s)
EDAC Inc. 892-076-524-201	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C	38	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	76	Non Specified - Dual Edge	0.1 "	2.54 mm	2				Female	Cantilever	Dual	Black	Through Hole	Gold	Solder

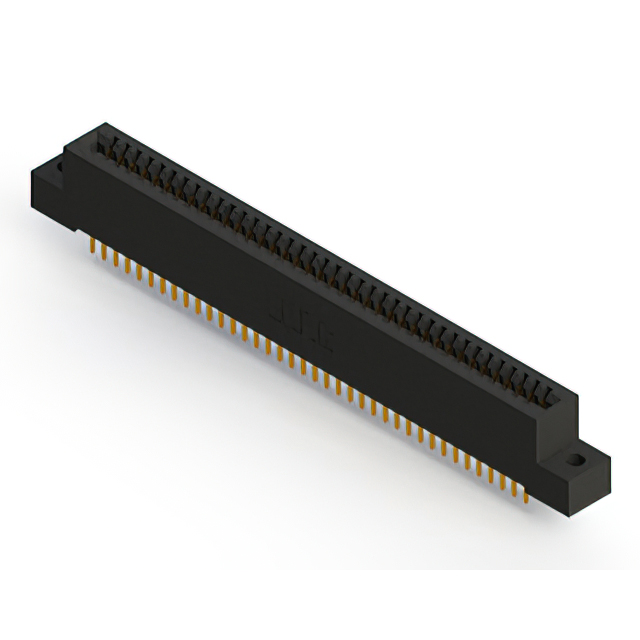

EDAC Inc. 892-076-521-202	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C	38	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	76	Non Specified - Dual Edge	0.1 "	2.54 mm	2	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Female	Cantilever	Dual	Black	Through Hole	Gold	Solder
