892-050 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 50POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Number of Positions	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Termination	Number of Rows [custom]	Contact Material	Read Out	Contact Finish Thickness	Contact Finish Thickness	Gender	Contact Finish	Contact Type	Card Type	Mounting Type	Color	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Number of Rows	Termination Rows	Features
EDAC Inc. 892-050-500-202	2	Polyphenylene Sulfide (PPS)	50	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Solder Eyelet(s)	2	Copper Alloy	Dual	0.25 Ám	10 Áin	Female	Gold	Cantilever	Non Specified - Dual Edge	Through Hole	Black	0.1 "	2.54 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	25
EDAC Inc. 892-050-558-204	2	Polyphenylene Sulfide (PPS)	50	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	Solder	2	Copper Alloy	Dual	0.25 Ám	10 Áin	Female	Gold	Cantilever	Non Specified - Dual Edge	Right Angle Through Hole	Black	0.1 "	2.54 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	25
EDAC Inc. 892-050-523-102		Polyphenylene Sulfide (PPS)	50	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Solder		Copper Alloy	Single	0.25 Ám	10 Áin	Female	Gold	Cantilever	Non Specified - Single Edge	Through Hole	Black	0.1 "	2.54 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	50	1	1

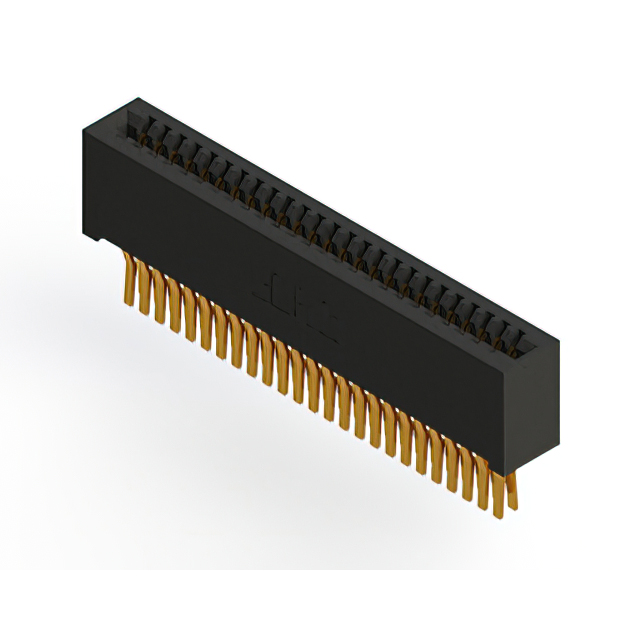

EDAC Inc. 892-050-560-201	2	Polyphenylene Sulfide (PPS)	50				Solder	2	Copper Alloy	Dual	0.25 Ám	10 Áin	Female	Gold	Cantilever	Non Specified - Dual Edge	Board Edge Straddle Mount	Black	0.1 "	2.54 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	25			Card Extender

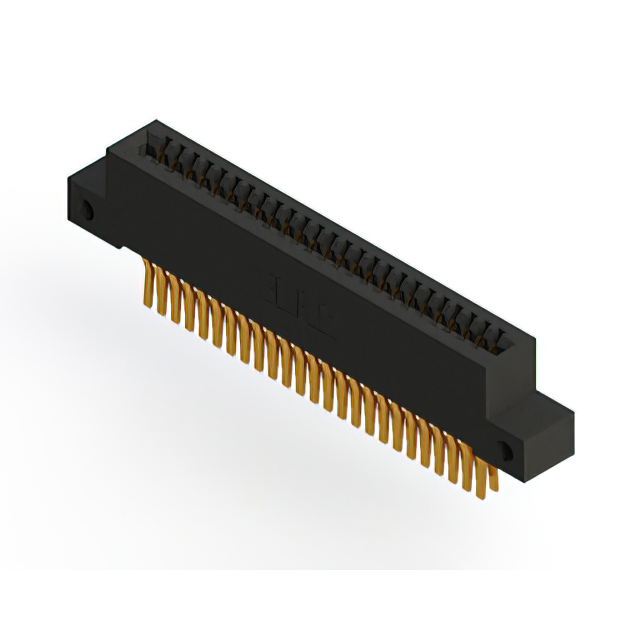

EDAC Inc. 892-050-560-212	2	Polyphenylene Sulfide (PPS)	50	Flush Mount Side Opening Unthreaded	3.25 mm	0.128 "	Solder	2	Copper Alloy	Dual	0.25 Ám	10 Áin	Female	Gold	Cantilever	Non Specified - Dual Edge	Board Edge Straddle Mount	Black	0.1 "	2.54 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	25			Card Extender

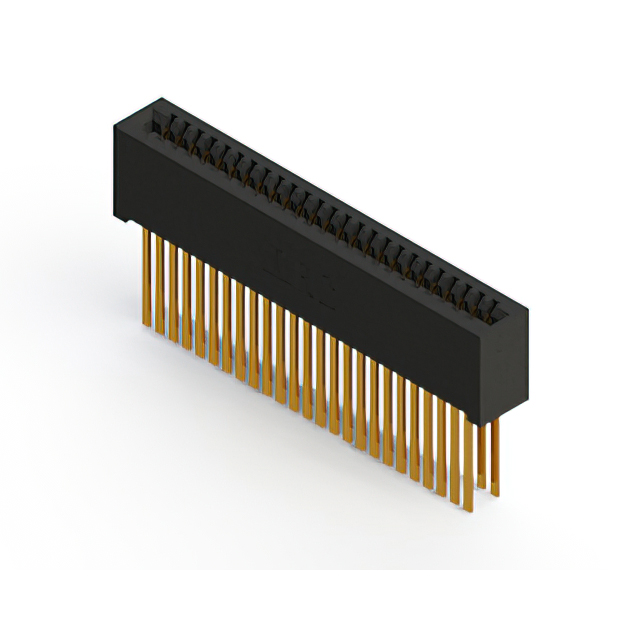

EDAC Inc. 892-050-544-201	2	Polyphenylene Sulfide (PPS)	50				Wire Wrap	2	Copper Alloy	Dual	0.25 Ám	10 Áin	Female	Gold	Cantilever	Non Specified - Dual Edge	Through Hole	Black	0.1 "	2.54 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	25
EDAC Inc. 892-050-500-108		Polyphenylene Sulfide (PPS)	50	4-40 Flush Mount Threaded Insert Top Opening			Solder Eyelet(s)		Copper Alloy	Single	0.25 Ám	10 Áin	Female	Gold	Cantilever	Non Specified - Single Edge	Through Hole	Black	0.1 "	2.54 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	50	1	1
EDAC Inc. 892-050-555-207	2	Polyphenylene Sulfide (PPS)	50	Flush Mount M3 Threaded Insert Top Opening			Solder	2	Copper Alloy	Dual	0.25 Ám	10 Áin	Female	Gold	Cantilever	Non Specified - Dual Edge	Board Edge Straddle Mount	Black	0.1 "	2.54 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	25			Card Extender
EDAC Inc. 892-050-500-212	2	Polyphenylene Sulfide (PPS)	50	Flush Mount Side Opening Unthreaded	3.25 mm	0.128 "	Solder Eyelet(s)	2	Copper Alloy	Dual	0.25 Ám	10 Áin	Female	Gold	Cantilever	Non Specified - Dual Edge	Through Hole	Black	0.1 "	2.54 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	25
EDAC Inc. 892-050-556-207	2	Polyphenylene Sulfide (PPS)	50	Flush Mount M3 Threaded Insert Top Opening			Solder	2	Copper Alloy	Dual	0.25 Ám	10 Áin	Female	Gold	Cantilever	Non Specified - Dual Edge	Board Edge Straddle Mount	Black	0.1 "	2.54 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	25			Card Extender
