PEC11 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 22POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Mounting Type	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Insulation Color	Contact Material	Insulation Material	Pitch - Mating	Pitch - Mating	Fastening Type	Termination	Contact Finish - Post	Connector Type	Number of Positions	Style	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Number of Rows	Contact Length - Post [custom]	Contact Length - Post [custom]	Insulation Height [z]	Insulation Height [z]	Overall Contact Length [x]	Overall Contact Length [x]
Sullins Connector Solutions PEC11DAHN	2.54 µm	100 µin	2	100 çin	2.54 çm	Male Pin	UL94 V-0	0.82 in	20.83 mm	Square	-65 ░C	125 °C	Unshrouded	Through Hole	3 A	0.1 in	2.54 mm	All	0.23 in	5.84 mm	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Push-Pull	Solder	Tin	Header Breakaway	22	Board to Board Cable	29.21 mm	1.15 in	0.1 in	2.54 mm

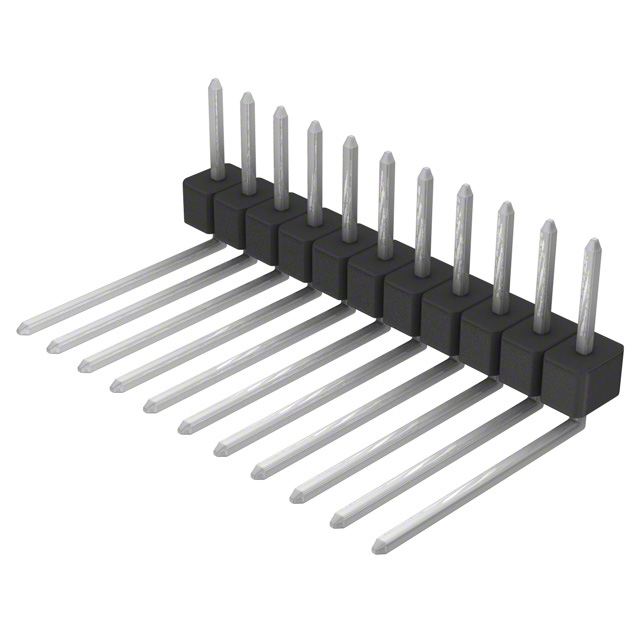

Sullins Connector Solutions PEC11SBEN	2.54 µm	100 µin		100 çin	2.54 çm	Male Pin	UL94 V-0	0.5 "	12.7 mm	Square	-65 ░C	125 °C	Unshrouded	Right Angle Through Hole	3 A			All	0.23 in	5.84 mm	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Push-Pull	Solder	Tin	Header Breakaway	11	Board to Board Cable			0.14 in	3.56 mm	1

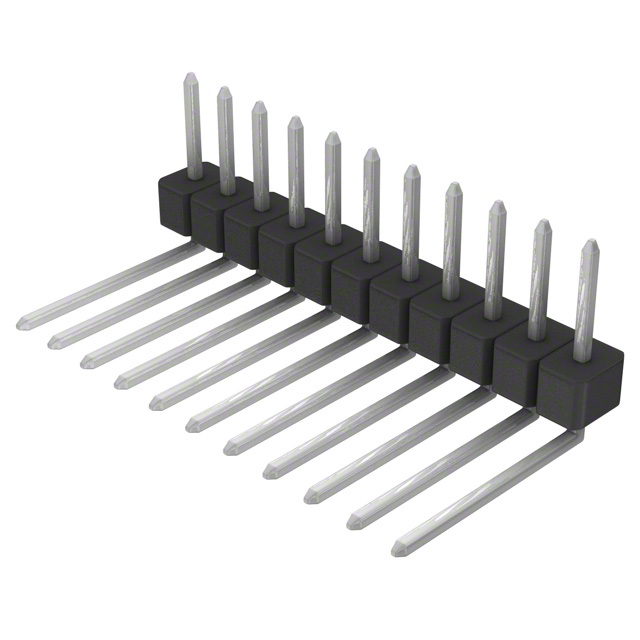

Sullins Connector Solutions PEC11SBDN	2.54 µm	100 µin		100 çin	2.54 çm	Male Pin	UL94 V-0	0.4 in	10.16 mm	Square	-65 ░C	125 °C	Unshrouded	Right Angle Through Hole	3 A			All	0.23 in	5.84 mm	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Push-Pull	Solder	Tin	Header Breakaway	11	Board to Board Cable			0.14 in	3.56 mm	1

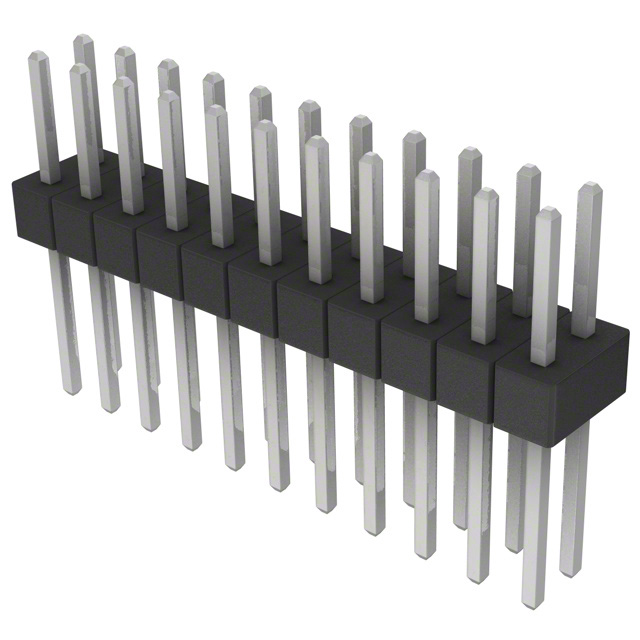

Sullins Connector Solutions PEC11DACN	2.54 µm	100 µin	2	100 çin	2.54 çm	Male Pin	UL94 V-0	0.32 in	8.13 mm	Square	-65 ░C	125 °C	Unshrouded	Through Hole	3 A	0.1 in	2.54 mm	All	0.23 in	5.84 mm	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Push-Pull	Solder	Tin	Header Breakaway	22	Board to Board Cable	16.51 mm	0.65 in	0.1 in	2.54 mm
Sullins Connector Solutions PEC11DBBN	2.54 µm	100 µin	2	100 çin	2.54 çm	Male Pin	UL94 V-0			Square	-65 ░C	125 °C	Unshrouded	Right Angle Through Hole	3 A	0.1 in	2.54 mm	All	0.23 in	5.84 mm	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Push-Pull	Solder	Tin	Header Breakaway	22	Board to Board Cable						5.08 mm	0.2 "	6.1 mm	0.24 in

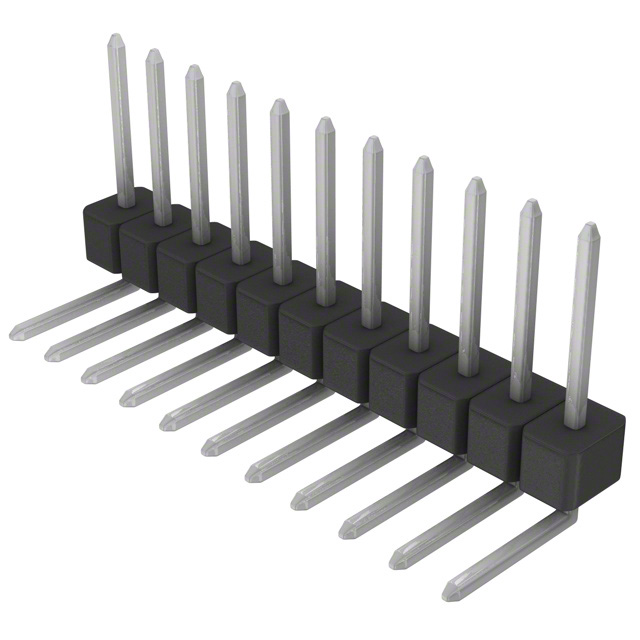

Sullins Connector Solutions PEC11SGBN	2.54 µm	100 µin		100 çin	2.54 çm	Male Pin	UL94 V-0			Square	-65 ░C	125 °C	Unshrouded	Right Angle Through Hole	3 A			All	0.318 in	8.08 mm	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Push-Pull	Solder	Tin	Header Breakaway	11	Board to Board Cable			0.14 in	3.56 mm	1	5.08 mm	0.2 "
Sullins Connector Solutions PEC11SFEN	2.54 µm	100 µin		100 çin	2.54 çm	Male Pin	UL94 V-0	0.52 in	13.21 mm	Square	-65 ░C	125 °C	Unshrouded	Through Hole	3 A			All	0.318 in	8.08 mm	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Push-Pull	Solder	Tin	Header Breakaway	11	Board to Board Cable	23.83 mm	0.938 in	0.1 in	2.54 mm	1

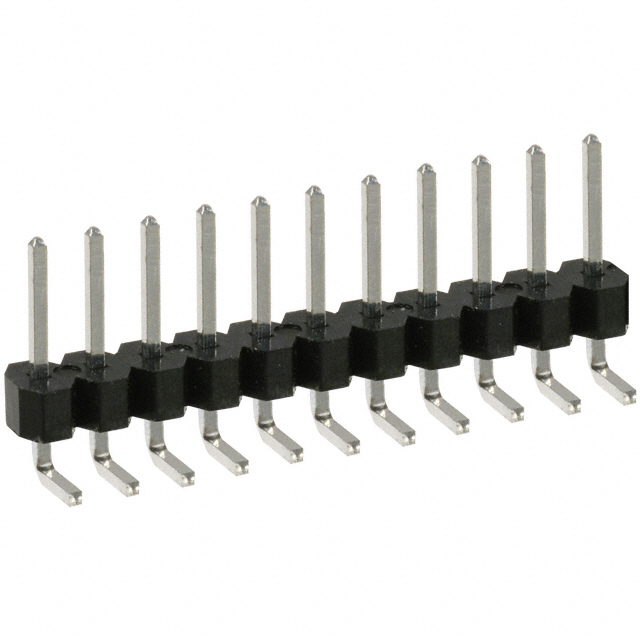

Sullins Connector Solutions PEC11SBAN	2.54 µm	100 µin		100 çin	2.54 çm	Male Pin	UL94 V-0	0.1 in	2.54 mm	Square	-65 ░C	125 °C	Unshrouded	Right Angle Through Hole	3 A			All	0.23 in	5.84 mm	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Push-Pull	Solder	Tin	Header Breakaway	11	Board to Board Cable			0.14 in	3.56 mm	1

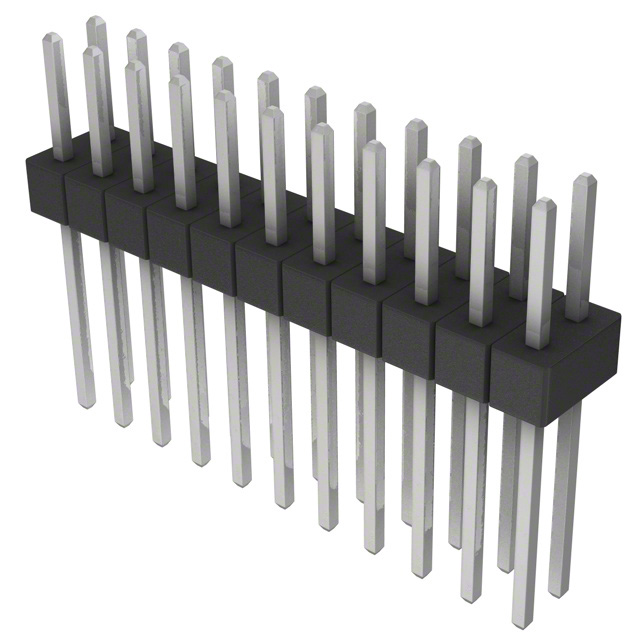

Sullins Connector Solutions PEC11DADN	2.54 µm	100 µin	2	100 çin	2.54 çm	Male Pin	UL94 V-0	0.42 in	10.67 mm	Square	-65 ░C	125 °C	Unshrouded	Through Hole	3 A	0.1 in	2.54 mm	All	0.23 in	5.84 mm	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Push-Pull	Solder	Tin	Header Breakaway	22	Board to Board Cable			0.1 in	2.54 mm						19.05 mm	0.75 in
Sullins Connector Solutions PEC11DAAN	2.54 µm	100 µin	2	100 çin	2.54 çm	Male Pin	UL94 V-0	0.12 in	3.05 mm	Square	-65 ░C	125 °C	Unshrouded	Through Hole	3 A	0.1 in	2.54 mm	All	0.23 in	5.84 mm	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Push-Pull	Solder	Tin	Header Breakaway	22	Board to Board Cable			0.1 in	2.54 mm						11.43 mm	0.45 in
