0522-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

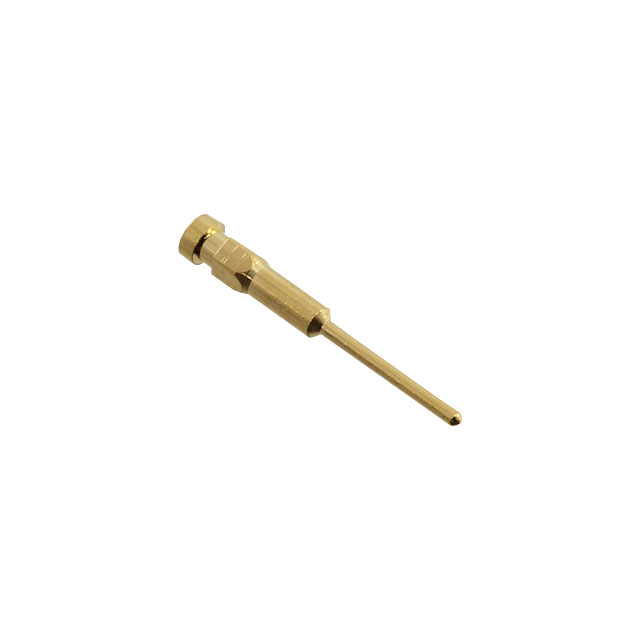

CONN PC PIN CIRC .018DIA TINLEAD
| Part | Length - Overall [x] | Length - Overall [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Flange Diameter | Flange Diameter | Mounting Type | Terminal Type | Length - Above Flange [x] | Length - Above Flange | Termination | Insulation | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Terminal Style | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 9.14 mm | 0.36 " | 0.018 in | 0.46 mm | 0.042 in | 1.07 mm | 0.05 in | 1.27 mm | Through Hole | PC Pin | 0.34 in | 8.64 mm | Pentagon Press-Fit | Non-Insulated | 200 Áin | 5.08 Ám | Brass Alloy | Single End | Tin-Lead |
 Mill-Max Manufacturing Corp. | 9.14 mm | 0.36 " | 0.018 in | 0.46 mm | 0.042 in | 1.07 mm | 0.05 in | 1.27 mm | Through Hole | PC Pin | 0.34 in | 8.64 mm | Pentagon Press-Fit | Non-Insulated | 10 Áin | 0.25 Ám | Brass Alloy | Single End | Gold |
Mill-Max Manufacturing Corp. | 9.14 mm | 0.36 " | 0.018 in | 0.46 mm | 0.042 in | 1.07 mm | 0.05 in | 1.27 mm | Through Hole | PC Pin | 0.34 in | 8.64 mm | Pentagon Press-Fit | Non-Insulated | 20 µin | 0.51 µm | Brass Alloy | Single End | Gold |
