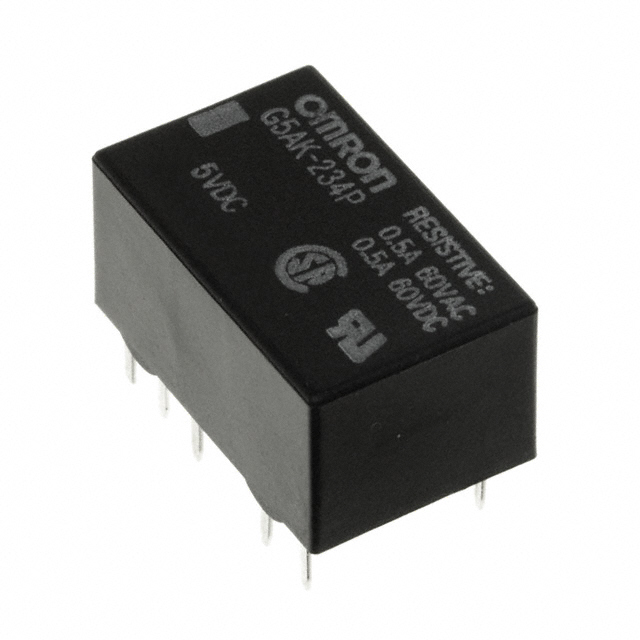

G5AK-234 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 1A 24V
| Part | Relay Type | Must Operate Voltage | Seal Rating | Approval Agency | Coil Voltage | Contact Form | Release Time | Termination Style | Switching Voltage | Coil Resistance | Contact Rating (Current) | Coil Current | Coil Type | Operating Temperature [Min] | Operating Temperature [Max] | Operate Time | Mounting Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | General Purpose | 19.2 VDC | Sealed - Fully | UL | 24 VDC | DPDT (2 Form C) | 5 ms | PC Pin | 125 VAC 125 VDC | 2.88 kOhms | 1 A | 8.3 mA | Latching Dual Coil | -40 °C | 70 °C | 5 ms | Through Hole | Gold (Au) Silver (Ag) |
 Omron Electronics Inc-EMC Div | General Purpose | 4 VDC | Sealed - Fully | UL | 5 VDC | DPDT (2 Form C) | 5 ms | PC Pin | 125 VAC 125 VDC | 125 Ohms | 1 A | 40 mA | Latching Dual Coil | -40 °C | 70 °C | 5 ms | Through Hole | Gold (Au) Silver (Ag) |
Omron Electronics Inc-EMC Div | General Purpose | 7.2 VDC | Sealed - Fully | UL | 9 VDC | DPDT (2 Form C) | 5 ms | PC Pin | 125 VAC 125 VDC | 405 Ohms | 1 A | 22.2 mA | Latching Dual Coil | -40 °C | 70 °C | 5 ms | Through Hole | Gold (Au) Silver (Ag) |
