SFV17R Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

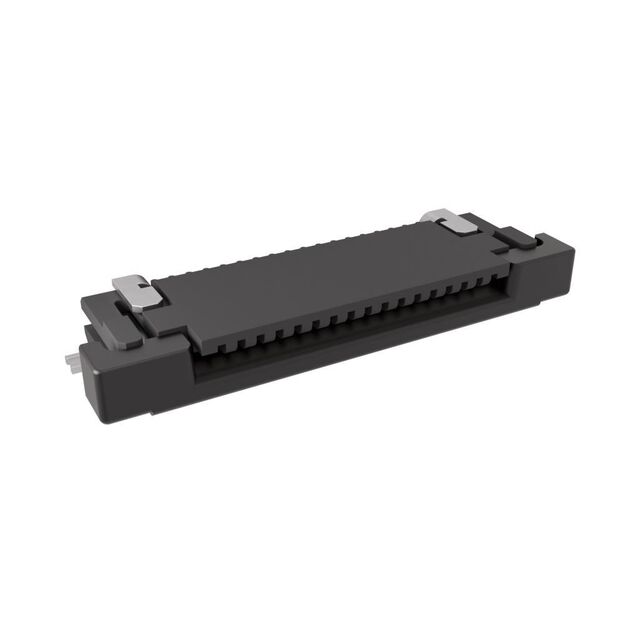

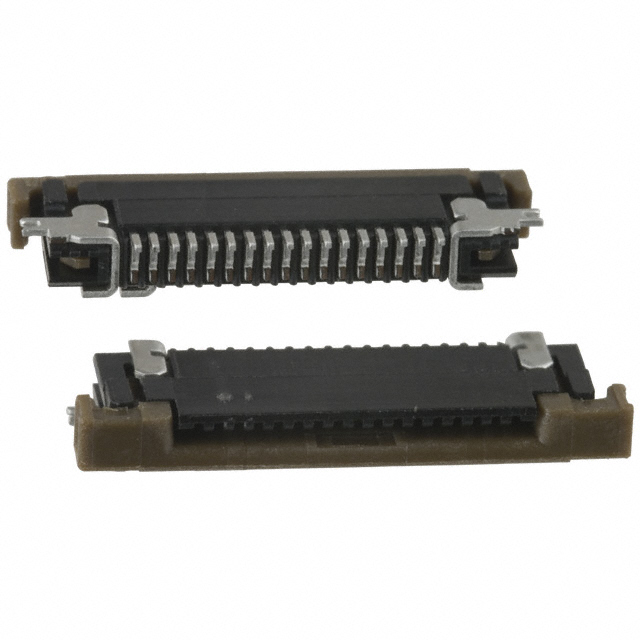

CONN FFC FPC TOP 17POS 0.5MM R/A
| Part | Actuator Color | Housing Color | Current Rating (Amps) | Pitch | Pitch | Features | Housing Material | Connector/Contact Type | Cable End Type | Material Flammability Rating | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | FFC, FCB Thickness [custom] | FFC, FCB Thickness [custom] | Mounting Type | Locking Feature | Voltage Rating | Contact Finish | Actuator Material | Height Above Board [z] | Height Above Board [z] | Flat Flex Type | Mating Cycles | FFC, FCB Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Brown | Black | 0.5 A | 0.02 " | 0.5 mm | Solder Retention Zero Insertion Force (ZIF) | Glass Filled Nylon Polyamide (PA) | Contacts Top | Straight Tapered | UL94 V-0 | Solder | -55 C | 105 ░C | Phosphor Bronze | 0.3 mm | 0.33 mm | Right Angle Surface Mount | Slide Lock | 50 V | Tin | Polyphenylene Sulfide (PPS) Glass Filled | 0.071 in | 1.8 mm | FFC FPC | ||
 Amphenol ICC (FCI) | Brown | Black | 0.5 A | 0.02 " | 0.5 mm | Solder Retention Zero Insertion Force (ZIF) | Glass Filled Nylon Polyamide (PA) | Contacts Bottom | Straight Tapered | UL94 V-0 | Solder | -55 C | 105 ░C | Phosphor Bronze | 0.3 mm | 0.33 mm | Right Angle Surface Mount | Slide Lock | 50 V | Tin Alloy | Polyphenylene Sulfide (PPS) Glass Filled | 0.071 in | 1.8 mm | FFC FPC | 20 | |
Amphenol ICC (FCI) | Brown | Black | 0.5 A | 0.02 " | 0.5 mm | Solder Retention Zero Insertion Force (ZIF) | Glass Filled Nylon Polyamide (PA) | Contacts Bottom | Straight Tapered | UL94 V-0 | Solder | -55 C | 105 ░C | Phosphor Bronze | 0.3 mm | 0.33 mm | Right Angle Surface Mount | Slide Lock | 50 V | Tin | Polyphenylene Sulfide (PPS) Glass Filled | 0.071 in | 1.8 mm | FFC FPC | ||
Amphenol ICC (FCI) | Black | Black | 0.5 A | 0.02 " | 0.5 mm | Solder Retention Zero Insertion Force (ZIF) | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Contacts Top | Straight Tapered | UL94 V-0 | Solder | -55 C | 105 ░C | Phosphor Bronze | 0.3 mm | 0.33 mm | Right Angle Surface Mount | Slide Lock | 50 V | Gold | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 0.071 in | 1.8 mm | FFC FPC | 20 | |
Amphenol ICC (FCI) | Brown | Black | 0.5 A | 0.02 " | 0.5 mm | Solder Retention Zero Insertion Force (ZIF) | Glass Filled Nylon Polyamide (PA) | Contacts Top | Straight Tapered | UL94 V-0 | Solder | -55 C | 105 ░C | Phosphor Bronze | 0.3 mm | 0.33 mm | Right Angle Surface Mount | Slide Lock | 50 V | Tin Alloy | Polyphenylene Sulfide (PPS) Glass Filled | 0.071 in | 1.8 mm | FFC FPC | 20 | |
 Amphenol ICC (FCI) | Black | Black | 0.5 A | 0.02 " | 0.5 mm | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Contacts Top | Straight Tapered | UL94 V-0 | Solder | -55 C | 105 ░C | Phosphor Bronze | 0.3 mm | 0.33 mm | Right Angle Surface Mount | Slide Lock | 50 V | Gold | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 0.071 in | 1.8 mm | FPC | 20 | ||
 Amphenol ICC (FCI) | Black | Black | 0.5 A | 0.02 " | 0.5 mm | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Contacts Top | Straight Tapered | UL94 V-0 | Solder | -55 C | 105 ░C | Phosphor Bronze | 0.3 mm | 0.33 mm | Right Angle Surface Mount | Slide Lock | 50 V | Tin | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 0.071 in | 1.8 mm | FFC FPC | 20 | ||
 Amphenol ICC (FCI) | Black | Black | 0.5 A | 0.02 " | 0.5 mm | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Contacts Top | Tapered | UL94 V-0 | Solder | -55 C | 105 ░C | Phosphor Bronze | Right Angle Surface Mount | Slide Lock | 50 V | Gold | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 0.071 in | 1.8 mm | FFC FPC | 20 | 0.33 mm |
