ADS7951-Q1 Series

Automotive 12 bit, 1 MSPS, 8 Channel, Single-Ended, SAR ADC

Catalog

Automotive 12 bit, 1 MSPS, 8 Channel, Single-Ended, SAR ADC

Part	Number of Inputs	Number of A/D Converters	Reference Type	Operating Temperature [Max]	Operating Temperature [Min]	Configuration	Number of Bits	Data Interface	Supplier Device Package	Input Type	Package / Case	Mounting Type	Architecture	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Sampling Rate (Per Second)	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Ratio - S/H:ADC	Package / Case [x]	Package / Case [y]	Features	Grade	Qualification
Texas Instruments ADS7951SBRGET	8	1	External	125 °C	-40 °C	MUX-S/H-ADC	12 bits	SPI	24-VQFN (4x4)	Single Ended	24-VFQFN Exposed Pad	Surface Mount	SAR	2.7 V	5.25 V	1 M	1.7 V	5.25 V	1:1

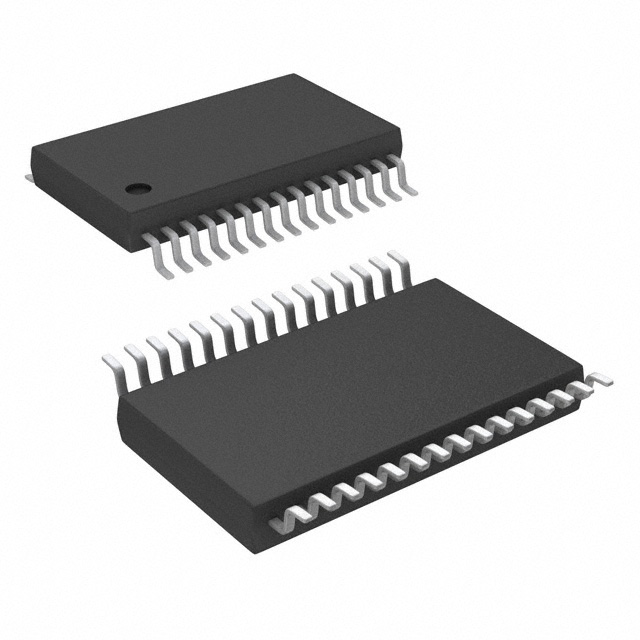

Texas Instruments ADS7951SBDBT	8	1	External	125 °C	-40 °C	MUX-S/H-ADC	12 bits	SPI	30-TSSOP	Single Ended	30-TFSOP	Surface Mount	SAR	2.7 V	5.25 V	1 M	1.7 V	5.25 V	1:1	0.173 in	4.4 mm Width
Texas Instruments ADS7951SRGER	8	1	External	125 °C	-40 °C	MUX-S/H-ADC	12 bits	SPI	24-VQFN (4x4)	Single Ended	24-VFQFN Exposed Pad	Surface Mount	SAR	2.7 V	5.25 V	1 M	1.7 V	5.25 V	1:1
Texas Instruments ADS7951SDBT	8	1	External	125 °C	-40 °C	MUX-S/H-ADC	12 bits	SPI	30-TSSOP	Single Ended	30-TFSOP	Surface Mount	SAR	2.7 V	5.25 V	1 M	1.7 V	5.25 V	1:1	0.173 in	4.4 mm Width
Texas Instruments ADS7951SBRGER	8	1	External	125 °C	-40 °C	MUX-S/H-ADC	12 bits	SPI	24-VQFN (4x4)	Single Ended	24-VFQFN Exposed Pad	Surface Mount	SAR	2.7 V	5.25 V	1 M	1.7 V	5.25 V	1:1
Texas Instruments ADS7951SRGET	8	1	External	125 °C	-40 °C	MUX-S/H-ADC	12 bits	SPI	24-VQFN (4x4)	Single Ended	24-VFQFN Exposed Pad	Surface Mount	SAR	2.7 V	5.25 V	1 M	1.7 V	5.25 V	1:1
Texas Instruments ADS7951QDBTRQ1	8	1	External	125 °C	-40 °C	MUX-PGA-S/H-ADC	12 bits	SPI	30-TSSOP	Single Ended	30-TFSOP	Surface Mount	SAR	2.7 V	5.25 V	1 M	1.7 V	5.25 V	1:1	0.173 in	4.4 mm Width	PGA	Automotive	AEC-Q100
Texas Instruments ADS7951SDBTG4	8	1	External	125 °C	-40 °C	MUX-S/H-ADC	12 bits	SPI	30-TSSOP	Single Ended	30-TFSOP	Surface Mount	SAR	2.7 V	5.25 V	1 M	1.7 V	5.25 V	1:1	0.173 in	4.4 mm Width

Catalog

Automotive 12 bit, 1 MSPS, 8 Channel, Single-Ended, SAR ADC

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Tested with the Following Results:Device Temperature Grade 1: –40°C to 125°CAmbient Operating Temperature RangeDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C4BProduct Family:8-, 10-, and 12-Bit Resolution4-, 8-, 12-Channel Devices Share 16 Channel Footprint1-MHz Sample-Rate Serial DevicesAnalog Supply Range: 2.7 V to 5.25 VI/O Supply Range: 1.7 V to 5.25 VTwo SW-Selectable Unipolar, Input Ranges:(0 V to 2.5 V) or (0 V to 5 V)Auto and Manual Modes for Channel SelectionTwo Programmable Alarm Levels per ChannelFour Individually Configurable GPIOsTypical Power Dissipation: 14.5 mW (V(+VA)= 5 V,V(+VBD)= 3 V) at 1 MSPSPower-Down Current (1 μA)30-Pin and 38-Pin TSSOP PackageQualified for Automotive ApplicationsAEC-Q100 Tested with the Following Results:Device Temperature Grade 1: –40°C to 125°CAmbient Operating Temperature RangeDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C4BProduct Family:8-, 10-, and 12-Bit Resolution4-, 8-, 12-Channel Devices Share 16 Channel Footprint1-MHz Sample-Rate Serial DevicesAnalog Supply Range: 2.7 V to 5.25 VI/O Supply Range: 1.7 V to 5.25 VTwo SW-Selectable Unipolar, Input Ranges:(0 V to 2.5 V) or (0 V to 5 V)Auto and Manual Modes for Channel SelectionTwo Programmable Alarm Levels per ChannelFour Individually Configurable GPIOsTypical Power Dissipation: 14.5 mW (V(+VA)= 5 V,V(+VBD)= 3 V) at 1 MSPSPower-Down Current (1 μA)30-Pin and 38-Pin TSSOP Package

Description

The ADS79xx-Q1 device family consists of multichannel 8-bit, 10-bit and 12-bit analog-to-digital converters (ADCs). The devices include a capacitor-based successive approximation register (SAR) ADC with inherent sample and hold. Multiple features and great performance makes the ADS79xx-Q1 device useful for wide variety of applications where multiple channels should be monitored. The ADS79xx-Q1 device works on a wide analog-supply range from 2.7 V to 5.25 V. These devices are suitable for battery-powered and isolated power-supply applications because of very-low power consumption. The 4- and 8-channel devices are available in 30-pin TSSOP package. The 12- and 16-channel devices are available in 38-pin TSSOP package. SPI is a trademark of Motorola Inc.All other trademarks are the property of their respective owners. The ADS79xx-Q1 device family consists of multichannel 8-bit, 10-bit and 12-bit analog-to-digital converters (ADCs). The devices include a capacitor-based successive approximation register (SAR) ADC with inherent sample and hold. Multiple features and great performance makes the ADS79xx-Q1 device useful for wide variety of applications where multiple channels should be monitored. The ADS79xx-Q1 device works on a wide analog-supply range from 2.7 V to 5.25 V. These devices are suitable for battery-powered and isolated power-supply applications because of very-low power consumption. The 4- and 8-channel devices are available in 30-pin TSSOP package. The 12- and 16-channel devices are available in 38-pin TSSOP package. SPI is a trademark of Motorola Inc.All other trademarks are the property of their respective owners.
