OSTTF03 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

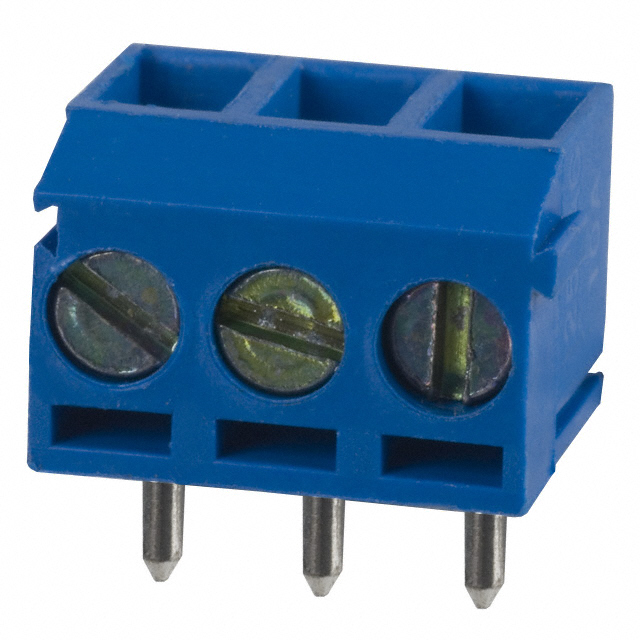

TERM BLK 3P TOP ENTRY 3.5MM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Clamp Material - Plating [custom] | Contact Material - Plating | Torque - Screw | Torque - Screw | Screw Thread | Housing Material | Screw Material - Plating | Mounting Type | Positions Per Level | Features | Wire Gauge [Max] | Wire Gauge [Min] | Color | Number of Levels | Wire Termination | Mating Orientation | Voltage | Current | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | -30 ░C | 105 ░C | Stainless Steel | Brass - Tin Plated | 1.7 Lb-In | 0.2 Nm | M2 | Thermoplastic | Steel - Zinc Plated | Through Hole | 3 | Interlocking (Side) | 26 AWG | 16 AWG | Blue | 1 | Screw - Leaf Spring Wire Guard | Vertical with Board | 125 V | 10 A | 3.5 mm | 0.138 " |
