5200-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

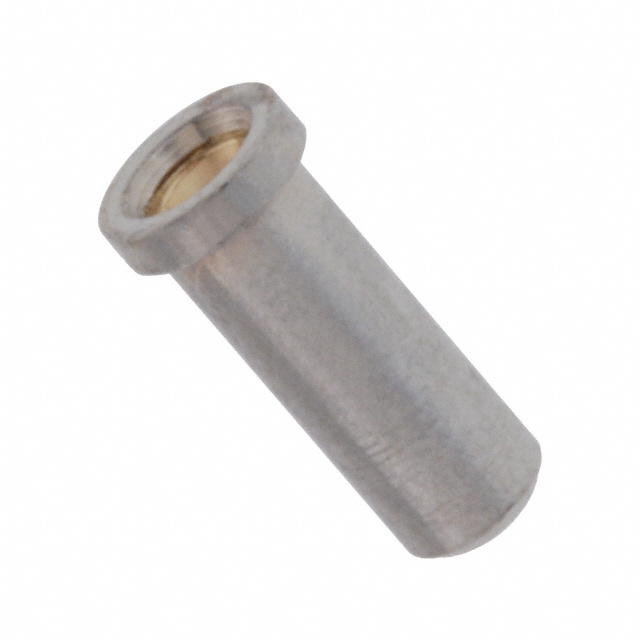

CONN PIN RCPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Max] | Socket Depth | Socket Depth | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish | Length - Overall [x] | Length - Overall [x] | Termination | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Tail Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Material | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.51 mm | 0.02 in | 0.81 mm | 0.032 " | 2.13 mm | 0.084 in | 2.62 mm | 0.103 in | Gold | 0.18 in | 4.57 mm | Surface Mount | 0.047 in | 1.19 mm | No Tail | 0.093 in | 2.36 mm | Beryllium Copper | 30 Áin | 0.76 Ám |
