2302319 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

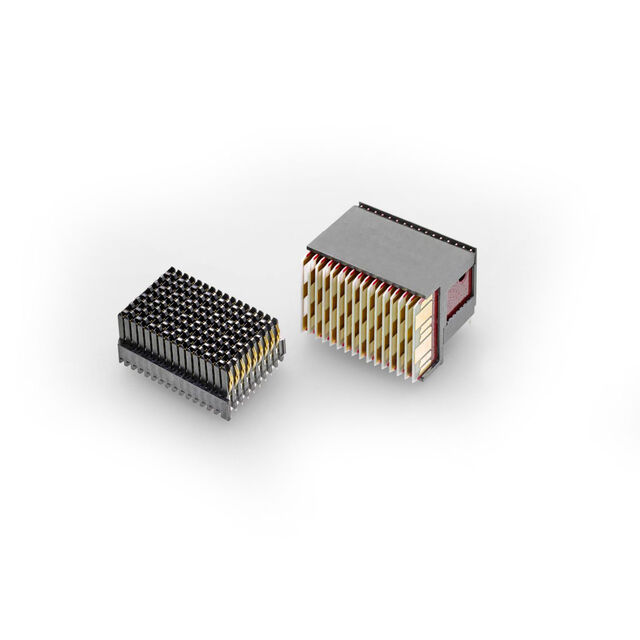

RA ASSY, CENT RP0, MULTIGIG RT 2
| Part | Connector Style | Contact Finish | Number of Columns | Color | Material Flammability Rating | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Connector Type | Number of Positions Loaded | Voltage Rating | Mounting Type | Features | Contact Layout, Typical | Connector Usage | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | Center MULTIG | Gold | 16 | Black | UL94 V-0 | Press-Fit | -55 °C | 125 °C | 7 | Plug Male Blades | All | 50 VAC | Board Edge Right Angle Through Hole | Board Guide | 20 Signal Pairs 31 Ground 5 Single Signal | Daughtercard | 50 µin | 1.27 µm | 112 | 0.071 in | 1.8 mm |
