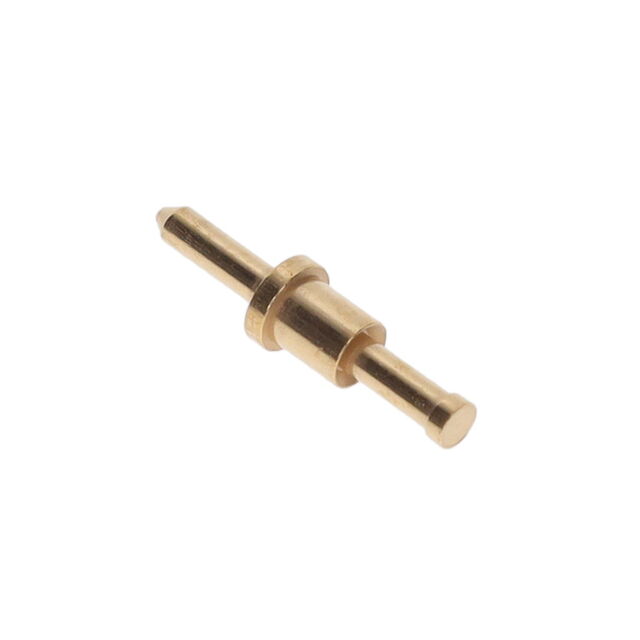

3156-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CIRCUIT PIN PRNTD .050"D .082"L
| Part | Contact Material | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Board Thickness | Board Thickness | Length - Overall [x] | Length - Overall [x] | Mounting Type | Contact Finish | Insulation | Length - Below Flange [x] | Length - Below Flange [x] | Number of Turrets | Termination | Terminal Type | Contact Finish Thickness | Contact Finish Thickness | Length - Above Board [custom] | Length - Above Board [custom] | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Brass Alloy | 1.93 mm | 0.076 in | 1.57 mm | 0.062 " | 0.379 in | 9.63 mm | Through Hole | Gold | Non-Insulated | 0.207 " | 5.26 mm | Single | Swage | Double End Pin | 50 µin | 1.27 µm | 0.15 in | 3.81 mm | 1.27 mm | 0.05 in | 0.093 in | 2.36 mm |
