680M9W4 Series
Manufacturer: NorComp Inc.
Beta
⌘K

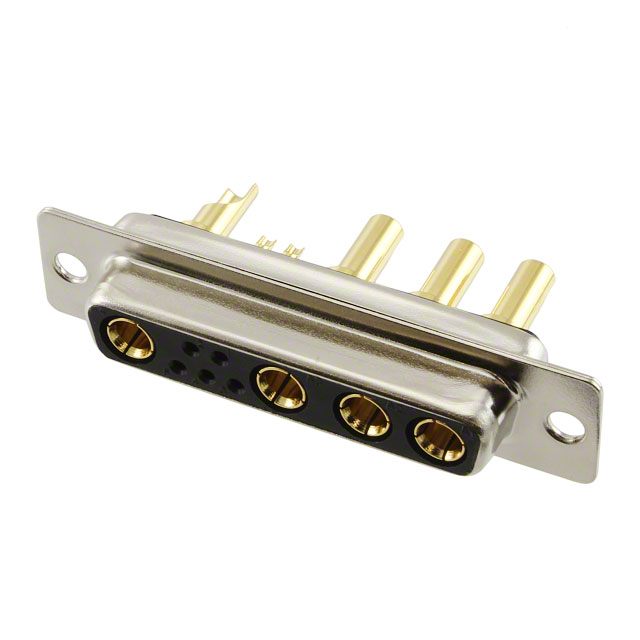

COMBINATION D SUB CONNECTOR, 680M SERIES, DB-9W4, RECEPTACLE, 5, 4, SOLDER ROHS COMPLIANT: YES
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Material | Flange Feature | Current Rating (Amps) | Number of Positions [custom] | Number of Positions [custom] | Connector Type | Mounting Type | Contact Finish Thickness | Shell Material, Finish | Material Flammability Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [x] | Contact Type | Connector Style | Number of Rows [custom] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) | Copper Alloy | Housing/Shell (Unthreaded) | 20A 5A | 4 | 5 | Receptacle Female Sockets | Panel Mount | Flash | Nickel Plated Steel | UL94 V-0 | DB B - 9W4 | 3 | Signal and Power | Combo D-Sub | 2 | Gold |
