747460 Series

Catalog

CONN D-SUB RCPT 15POS R/A SLDR

Part	Voltage Rating	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Connector Style	Termination	Contact Type	Material Flammability Rating	Flange Feature	Mounting Type	Number of Positions	Connector Type	Number of Rows [custom]	Contact Finish	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout	Backset Spacing	Backset Spacing	Contact Finish Thickness	Flange Feature
TE Connectivity AMP Connectors 747460-2	125 VDC	Black	-55 C	105 ░C	Phosphor Bronze	D-Sub	Solder	Signal	UL94 V-0	Housing/Shell (Unthreaded)	Right Angle Through Hole	15	Receptacle Female Sockets	2	Gold	6 A	30 Áin	0.76 Ám	2	0.59 in	14.99 mm
TE Connectivity AMP Connectors 747460-5	125 VDC	Black	-55 C	105 ░C	Phosphor Bronze	D-Sub	Solder	Signal	UL94 V-0	4-40 Mating Side Female Screwlock	Right Angle Through Hole	15	Receptacle Female Sockets	2	Gold	6 A			2	0.59 in	14.99 mm	Flash
TE Connectivity AMP Connectors 747460-4	125 VDC	Black	-55 C	105 ░C	Phosphor Bronze	D-Sub	Solder	Signal	UL94 V-0	Housing/Shell	Right Angle Through Hole	15	Receptacle Female Sockets	2	Gold	6 A	30 Áin	0.76 Ám	2	0.59 in	14.99 mm		4-40

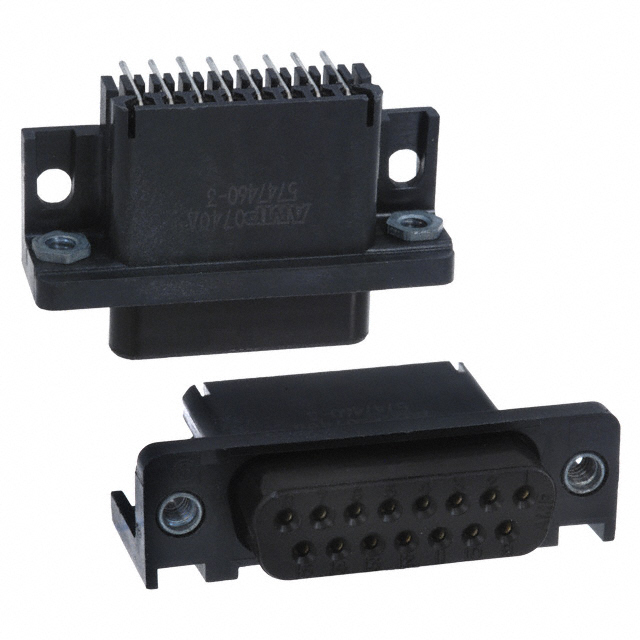

TE Connectivity AMP Connectors 747460-3	125 VDC	Black	-55 C	105 ░C	Phosphor Bronze	D-Sub	Solder	Signal	UL94 V-0	Housing/Shell	Right Angle Through Hole	15	Receptacle Female Sockets	2	Gold	6 A			2	0.59 in	14.99 mm	Flash	4-40
