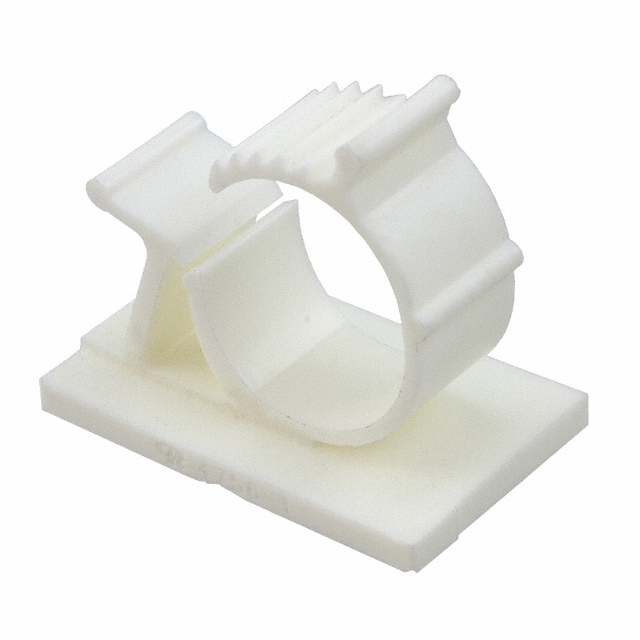

AKKL Series

Catalog

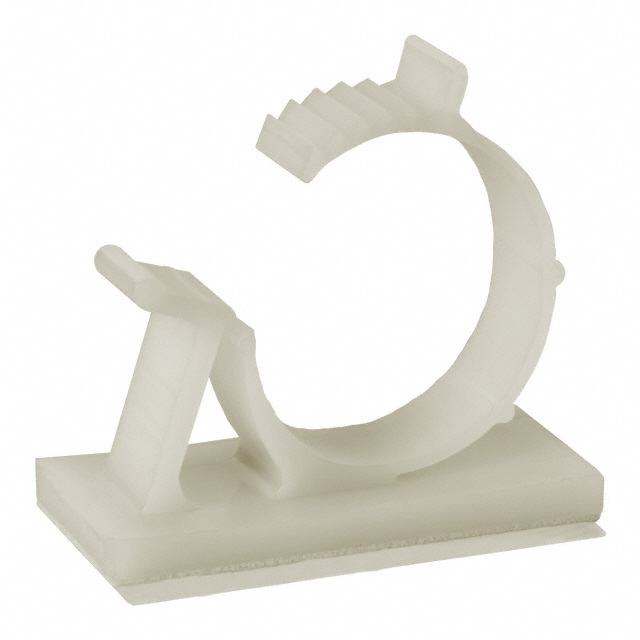

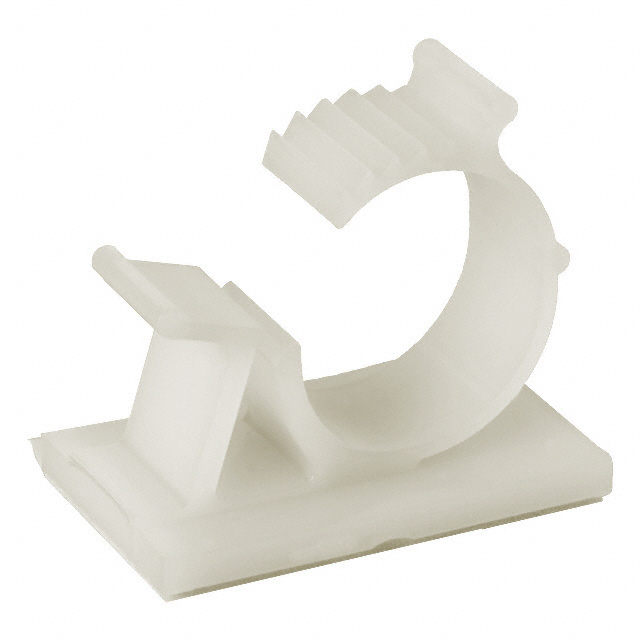

FASTENER, ADHESIVE BACKED CABLE CLAMP, 10.3 MM, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 25.4 MM

Part	Height [z]	Height [z]	Type Attributes	Adhesive	Width [x]	Width [x]	Mounting Type	Color	Length	Length	Material	Material Flammability Rating	Opening Size [Min]	Opening Size [Max]	Opening Size [Max]	Opening Size [Min]	Type	Length [x]	Length [x]	Features	Height	Height

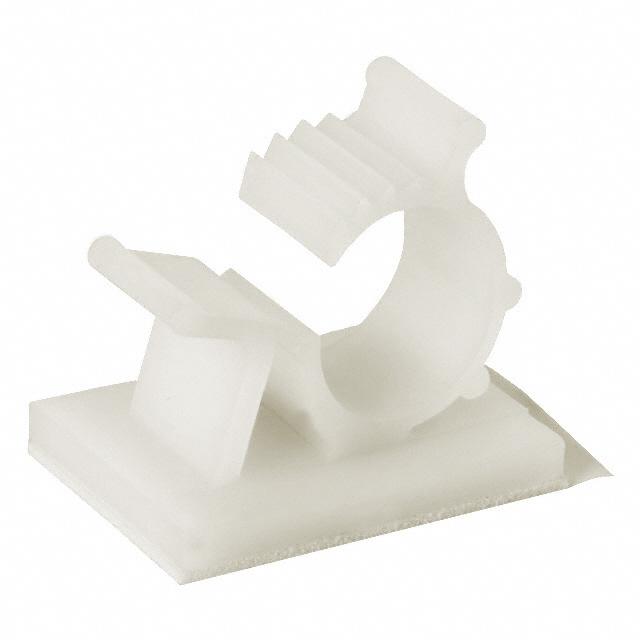

Essentra Components AKKL-3140A-RT	0.866 in	22 mm	Locking Round	Acrylic Based (RMS-15)	19.05 mm	0.75 in	Adhesive	Natural	1 in	25.4 mm	Polyamide (PA66) Nylon 6/6	UL94 V-2	7.92 mm	10.31 mm	0.406 in	0.312 in	Clip C-Type
Essentra Components AKKL-10112A-RT	2 in	50.8 mm	Locking Round	Acrylic Based (RMS-15)	25.4 mm	1 in	Adhesive	Natural			Polyamide (PA66) Nylon 6/6	UL94 V-2	25.4 mm	31.75 mm	1.25 in	1 in	Clip C-Type	63.5 mm	2.5 in

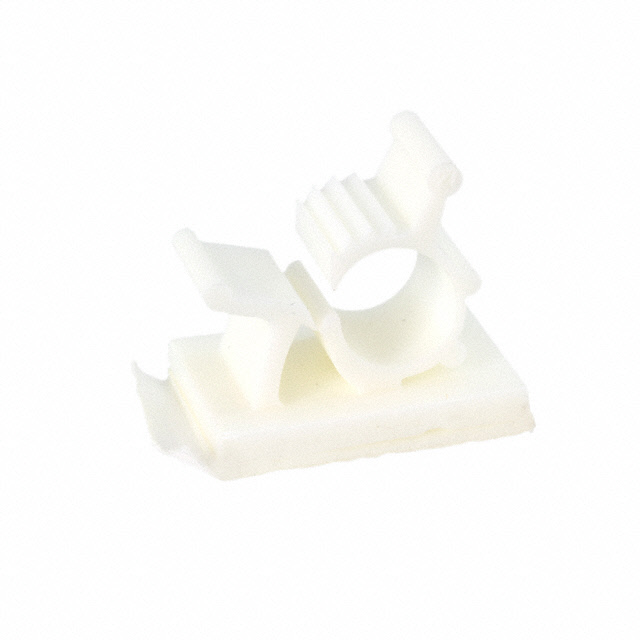

Essentra Components AKKL-2140A-RT	0.708 in	17.98 mm	Locking Round	Rubber Based (RMS-136)	16.51 mm	0.65 in	Adhesive	Natural	0.85 in	21.59 mm	Polyamide (PA66) Nylon 6/6	UL94 V-2	5.46 mm	6.55 mm	0.258 in	0.215 in	Clip C-Type

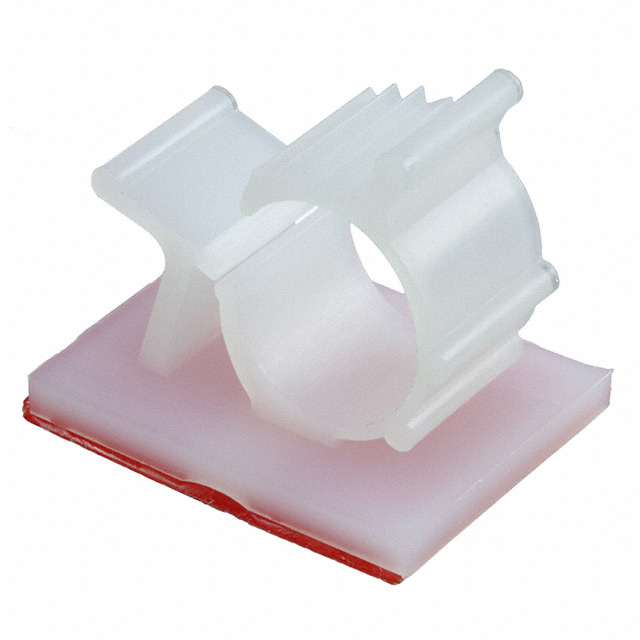

Essentra Components AKKL-3140-DHB	0.866 in	22 mm	Locking Round	Acrylic Based (RMS-500)	19.05 mm	0.75 in	Adhesive	Natural	1 in	25.4 mm	Polyamide (PA66) Nylon 6/6	UL94 V-2	7.92 mm	10.31 mm	0.406 in	0.312 in	Clip C-Type
Essentra Components AKKL-8710A-RT	1.75 in	44.45 mm	Locking Round	Acrylic Based (RMS-15)	25.4 mm	1 in	Adhesive	Natural	2 in	50.8 mm	Polyamide (PA66) Nylon 6/6	UL94 V-2	22.22 mm	25.4 mm	1 in	0.875 in	Clip C-Type
Essentra Components AKKL-3140-19	0.866 in	22 mm	Locking Round		19.05 mm	0.75 in		Natural	1 in	25.4 mm	Polyamide (PA66) Nylon 6/6	UL94 V-0	7.92 mm	10.31 mm	0.406 in	0.312 in	Clip C-Type			Flame Retardant
Essentra Components AKKL-2140A-19	0.708 in	17.98 mm	Locking Round	Rubber Based (RMS-136)	16.51 mm	0.65 in	Adhesive	Natural	0.85 in	21.59 mm	Polyamide (PA66) Nylon 6/6	UL94 V-0	5.46 mm	6.55 mm	0.258 in	0.215 in	Clip C-Type			Flame Retardant

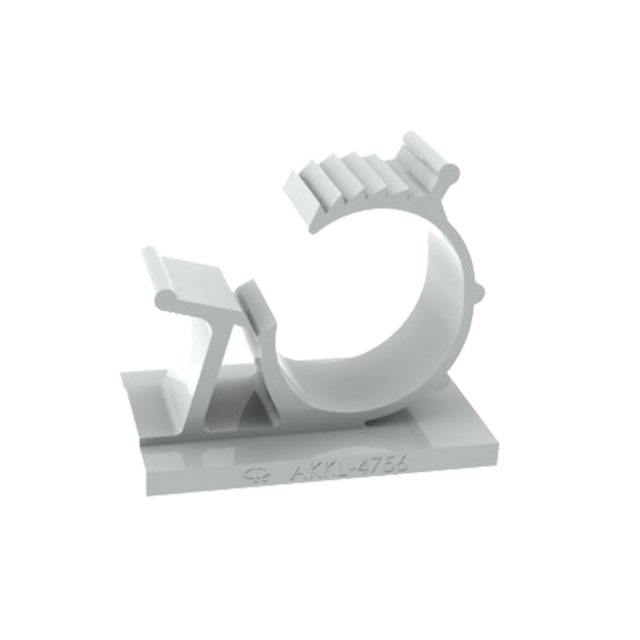

Essentra Components AKKL-4756-DHB			Locking Round	Acrylic Based (RMS-500)	19.05 mm	0.75 in	Adhesive	Natural		31.75 mm	Polyamide (PA66) Nylon 6/6	UL94 V-2	11.91 mm	14.27 mm	0.562 in	0.469 in	Clip C-Type		1.25 in		27.69 mm	1.09 in
Essentra Components AKKL-3140A-19	0.866 in	22 mm	Locking Round	Acrylic Based (RMS-15)	19.05 mm	0.75 in	Adhesive	Natural	1 in	25.4 mm	Polyamide (PA66) Nylon 6/6	UL94 V-0	7.92 mm	10.31 mm	0.406 in	0.312 in	Clip C-Type			Flame Retardant
Essentra Components AKKL-4756-19			Locking Round		19.05 mm	0.75 in		Natural		31.75 mm	Polyamide (PA66) Nylon 6/6	UL94 V-0	11.91 mm	14.27 mm	0.562 in	0.469 in	Clip C-Type		1.25 in	Flame Retardant	27.69 mm	1.09 in
