SSCEB Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

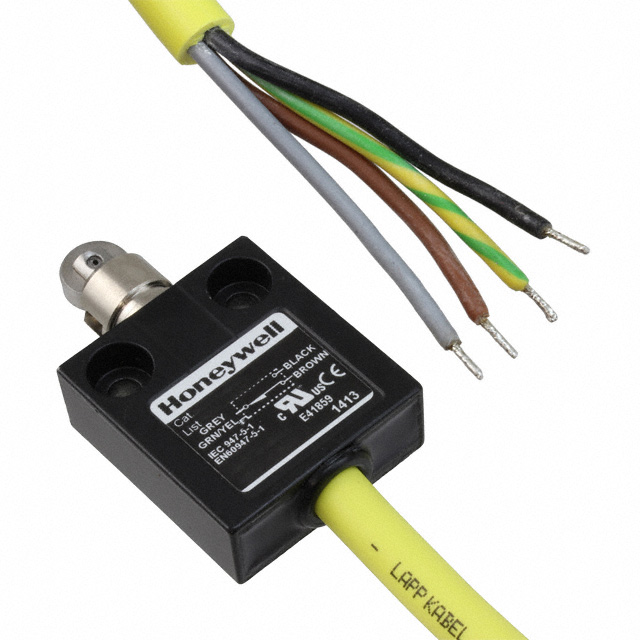

LIMIT SWITCH, TOP ROLLER PLUNGER, 5 A, 240 V, 11.8 N, SSCE SERIES
| Part | Features | Overtravel | Overtravel | Release Force | Switch Function | Voltage Rating - DC | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Pretravel | Pretravel | Actuator Type | Termination Style | Ingress Protection | Mechanical Life | Mounting Type | Differential Travel | Differential Travel | Operating Force | Current Rating (Amps) | Voltage Rating - AC | Operating Position | Operating Position |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Cable Length 3m | 0.118 " | 3 mm | 450 gf | On-Mom | 125 VDC | SPDT | 90 °C | -40 C | 0.04 in | 1 mm | Roller Plunger | Cable Leads | IP68 - Dust Tight Waterproof | 10000000 Cycles | Chassis Mount | 0.1 mm | 0.004 in | 1200 gf | 220 mA 600 mA | 120 V | 1.122 in | 28.5 mm |
