FASTIN-FASTON 250 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

CONN QC TAB 14-20AWG 0.250 CRIMP

...

Part	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Gender	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Mounting Type	Terminal Type	Tab Width [x]	Tab Width [x]	Tab Length	Tab Length	Contact Material	Length - Overall	Length - Overall	Contact Finish	Style	For Use With/Related Products	For Use With/Related Products	For Use With/Related Products	Color	Number of Positions	Terminal Size	Terminal Size	Tab Width [y]	Tab Width [y]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter	Material	Note	Stacking Direction	Wire Gauge [custom]	Wire Gauge [custom]

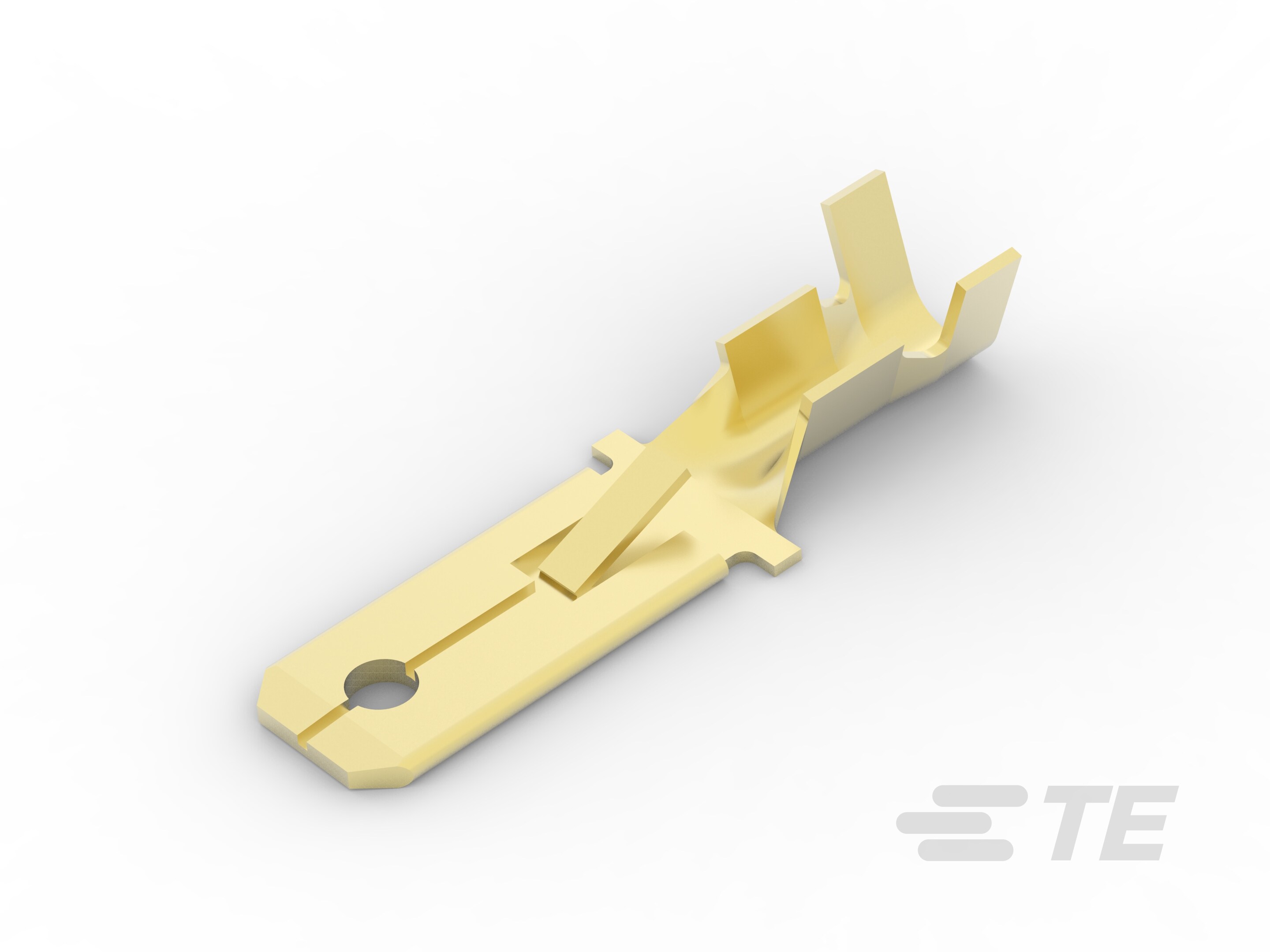

TE Connectivity AMP Connectors 170051-1	2.16 mm	0.085 "	0.135 "	3.43 mm	Male	0.81 mm	0.032 in	25.8 mm	1.016 in	Non-Insulated	20 AWG	14 AWG	Crimp	Free Hanging (In-Line)	Standard	6.35 mm	0.25 in	14 mm	0.551 in	Brass

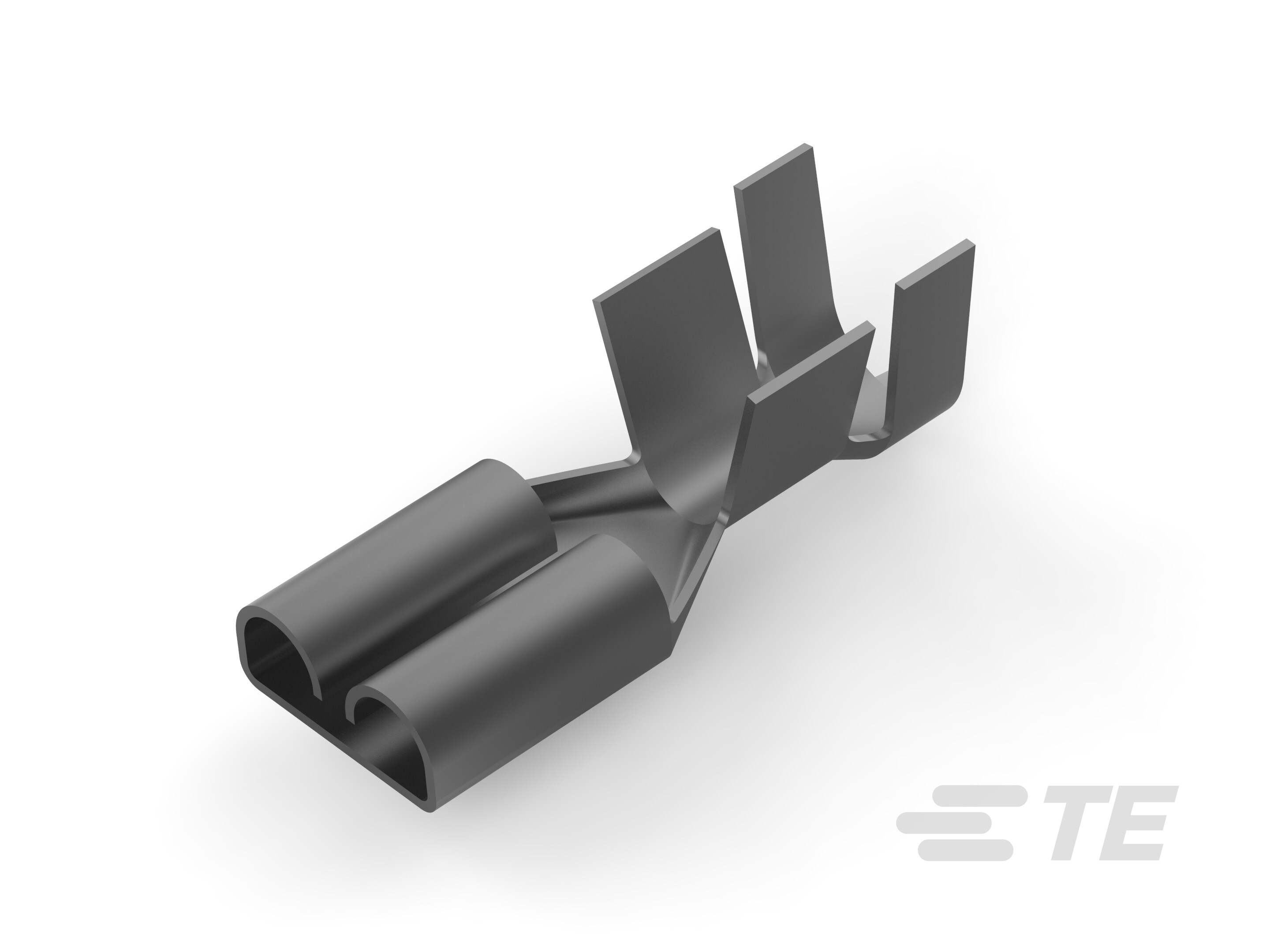

TE Connectivity AMP Connectors 180351-8	3.4 mm	0.134 "	0.201 "	5.1 mm	Female	0.81 mm	0.032 in			Non-Insulated	12 AWG	10 AWG	Crimp	Free Hanging (In-Line)	Standard	6.35 mm	0.25 in	7.7 mm	0.303 in	Brass	0.748 in	19 mm	Tin

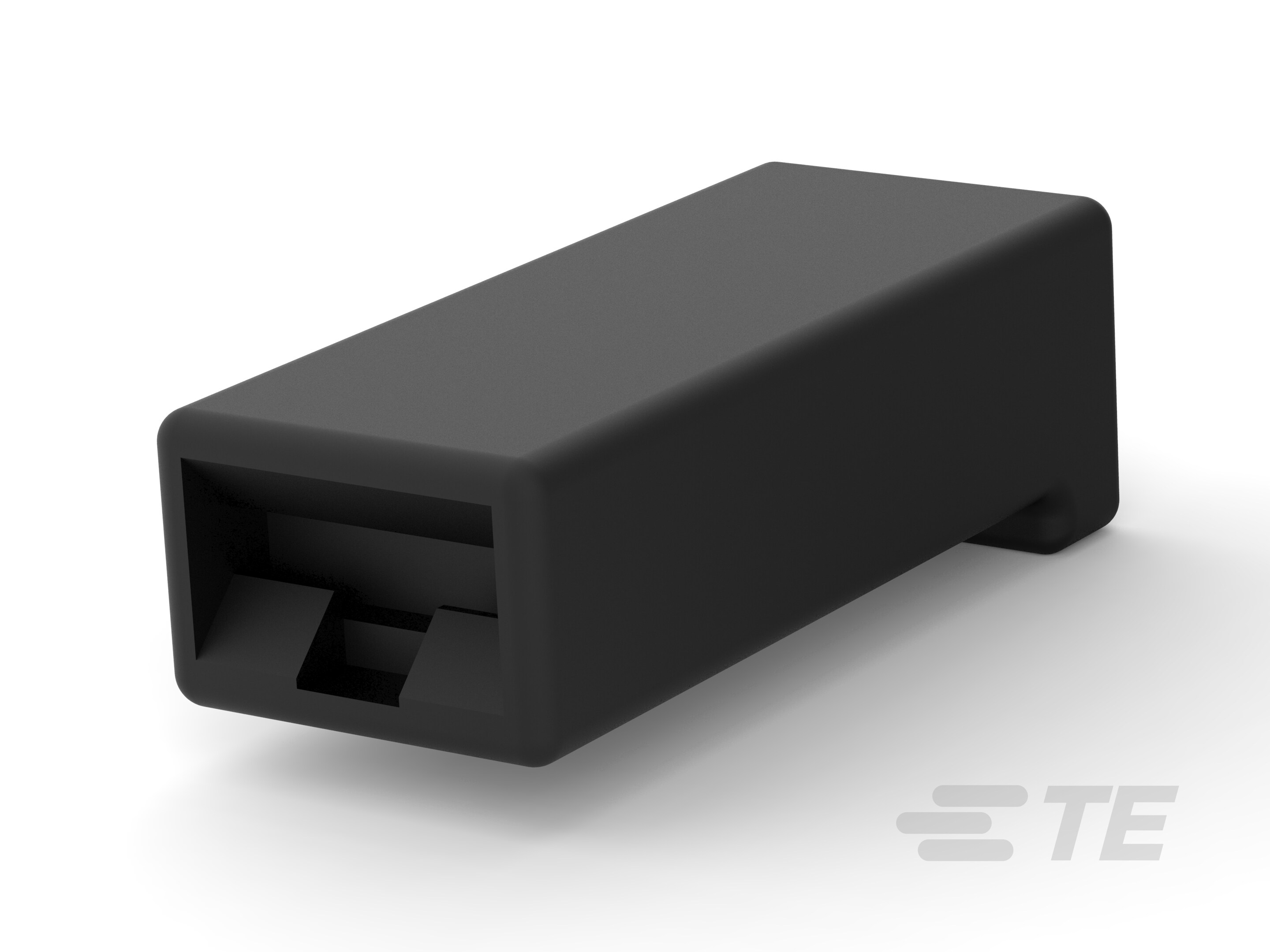

TE Connectivity AMP Connectors 480054-4					Female Receptacle									Free Hanging (In-Line)	Quick Connect Disconnect									Housing	Quick Connects	6.35 mm	0.25 in	Black	1	0.25 in	6.35 mm

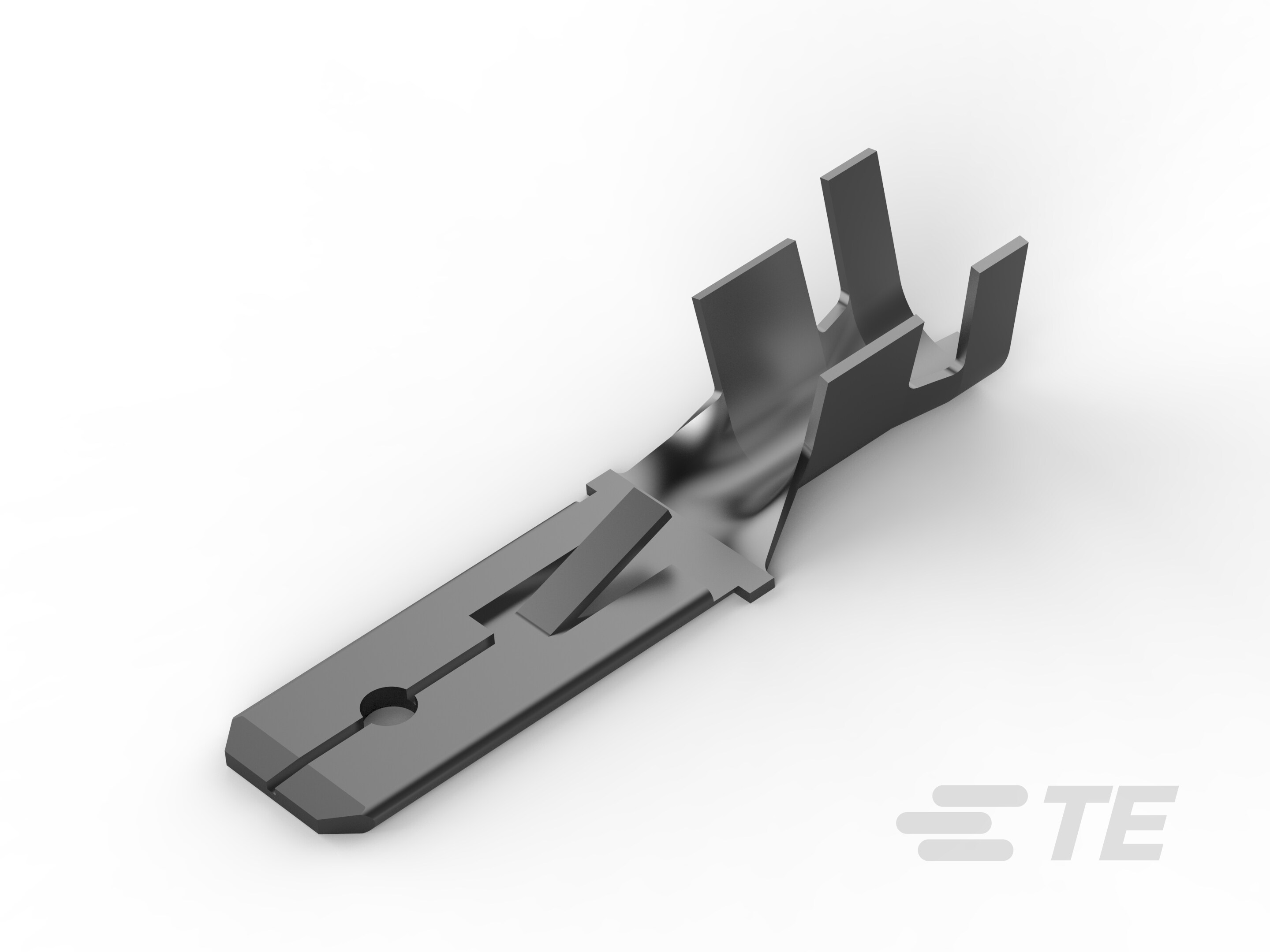

TE Connectivity AMP Connectors 280080-4					Male	0.81 mm	0.032 in			Non-Insulated	11 AWG	10 AWG	Crimp	Free Hanging (In-Line)	Standard	6.35 mm	0.25 in	15.7 mm	0.618 in	Phosphor Bronze			Tin
TE Connectivity AMP Connectors 42663-2					Female	0.81 mm	0.032 in	23.24 mm	0.915 in	Non-Insulated	16 AWG	12 AWG	Crimp	Free Hanging (In-Line)	Standard			9.65 mm	0.38 in	Brass			Tin									7.92 mm	0.312 "

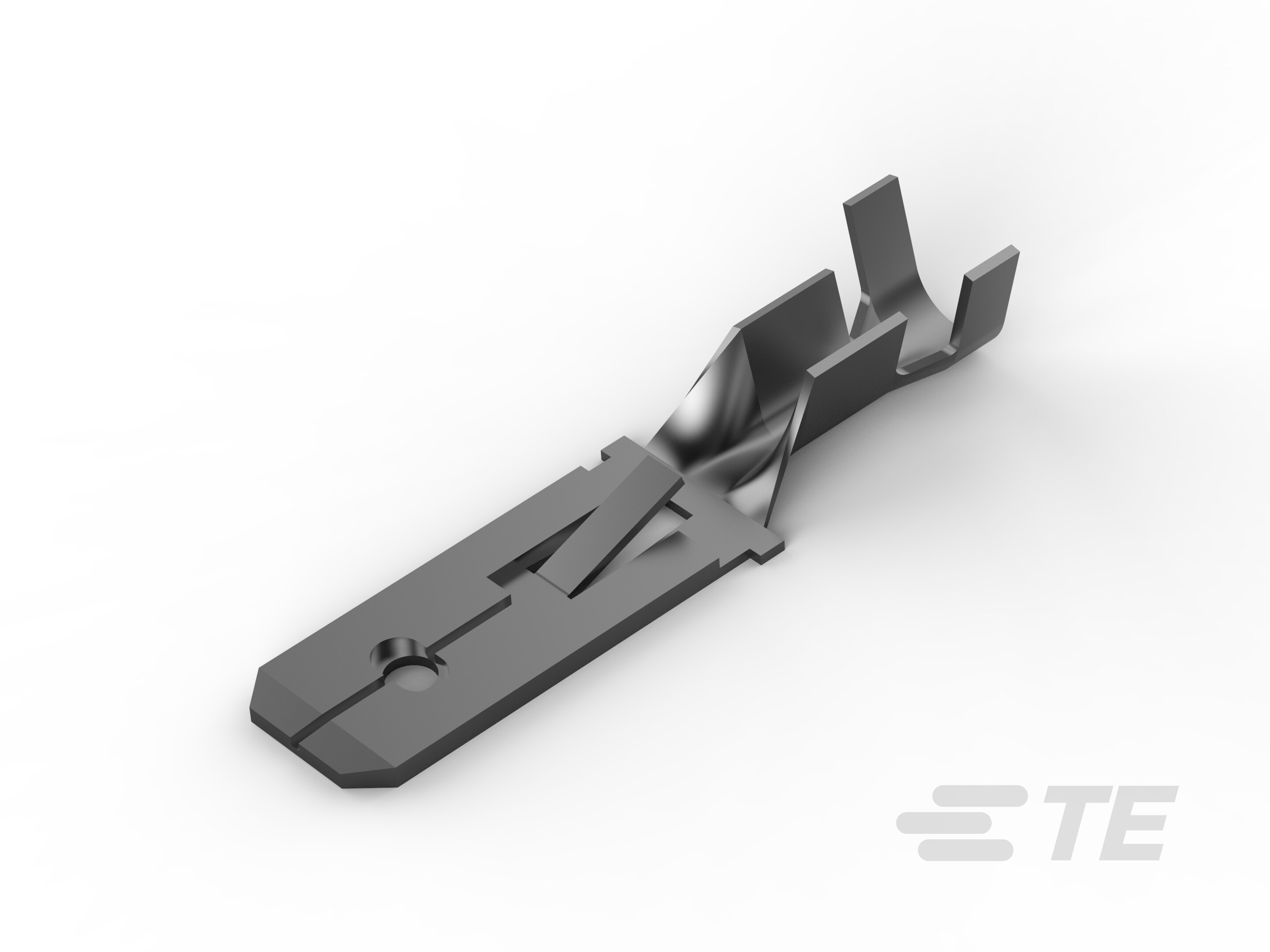

TE Connectivity AMP Connectors 160458-2					Male	0.81 mm	0.032 in			Non-Insulated	18 AWG	14 AWG	Crimp	Free Hanging (In-Line)	Standard	6.35 mm	0.25 in			Phosphor Bronze			Tin											0.122 "	0.161 "	3.1 mm	4.09 mm
TE Connectivity AMP Connectors 1989880-1					Female	0.81 mm	0.032 in	17.2 mm	0.677 "	Non-Insulated	17 AWG	14 AWG	Crimp	Free Hanging (In-Line)	Standard	6.35 mm	0.25 in	7.7 mm	0.303 in	Brass														0.118 in	0.169 in			3 mm 4.29 mm
TE Connectivity AMP Connectors 172130-4					Female Receptacle									Free Hanging (In-Line)	Quick Connect Disconnect									Housing	Quick Connects	6.35 mm	0.25 in	Green	2	0.25 in	6.35 mm								Nylon	Contacts Not Included	Perpendicular
TE Connectivity AMP Connectors 160928-4					Female	0.81 mm	0.032 in	19.2 mm	0.756 in	Non-Insulated			Crimp	Free Hanging (In-Line)	Standard	6.35 mm	0.25 in	7.75 mm	0.305 in	Phosphor Bronze			Tin											0.055 in	0.091 "	1.4 mm	2.31 mm					17	20 AWG
TE Connectivity AMP Connectors 5-160446-5	3 mm	0.118 in	0.161 in	4.09 mm	Female	0.81 mm	0.032 in	19.2 mm	0.756 in	Non-Insulated	17 AWG	14 AWG	Crimp	Free Hanging (In-Line)	Standard	6.35 mm	0.25 in	7.75 mm	0.305 in	Brass			Tin
