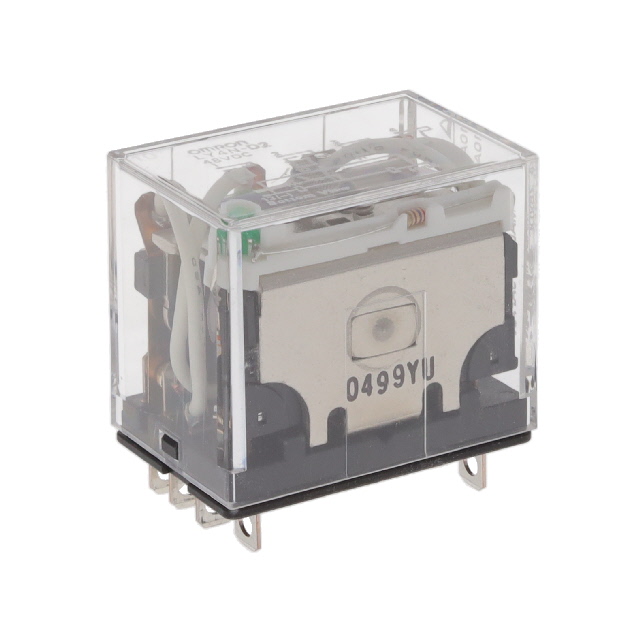

LY4N-D2 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE 4PDT 10A 48V
| Part | Features | Load - Max Switching | Release Time | Operate Time | Termination Style | Contact Rating (Current) | Switching Voltage | Contact Form | Mounting Type | Contact Material | Relay Type | Coil Resistance | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Must Release Voltage | Coil Type | Must Operate Voltage | Coil Voltage | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Lighted Indicator | 1250 W 2500 VA | 25 ms | 25 ms | Plug In | 10 A | 125 VDC 250 VAC | 4PDT (4 Form C) | Socketable | Silver Alloy | General Purpose | 1.6 kOhms | CE CSA TUV UR | -25 °C | 40 °C | 4.8 VDC | Non Latching | 38.4 VDC | 48 VDC | 30 mA |
 Omron Electronics Inc-EMC Div | Lighted Indicator | 1250 W 2500 VA | 25 ms | 25 ms | Plug In | 10 A | 125 VDC 250 VAC | 4PDT (4 Form C) | Socketable | Silver Alloy | General Purpose | 350 Ohms | CE CSA TUV UR | -25 °C | 40 °C | 2.4 VDC | Non Latching | 19.2 VDC | 24 VDC | 69 mA |

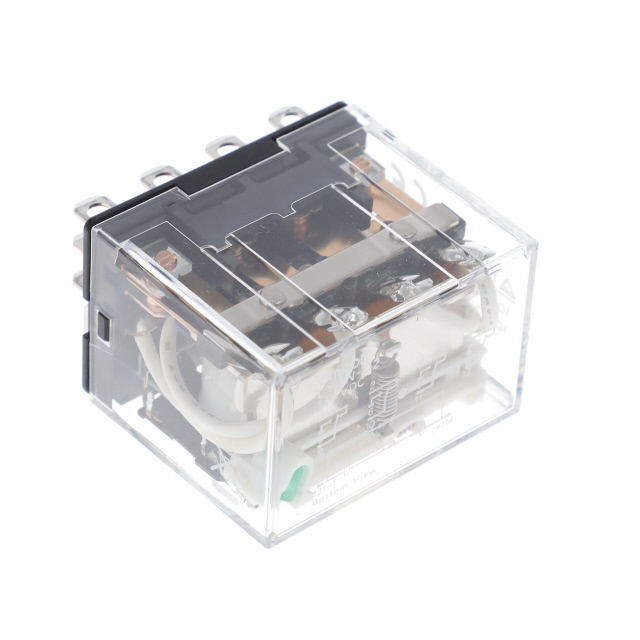

 Omron Electronics Inc-EMC Div | Lighted Indicator | 1250 W 2500 VA | 25 ms | 25 ms | Plug In | 10 A | 125 VDC 250 VAC | 4PDT (4 Form C) | Socketable | Silver Alloy | General Purpose | 10.4 kOhms | CE CSA TUV UR | -25 °C | 40 °C | 12.5 VDC | Non Latching | 100 VDC | 125 VDC | 12 mA |
