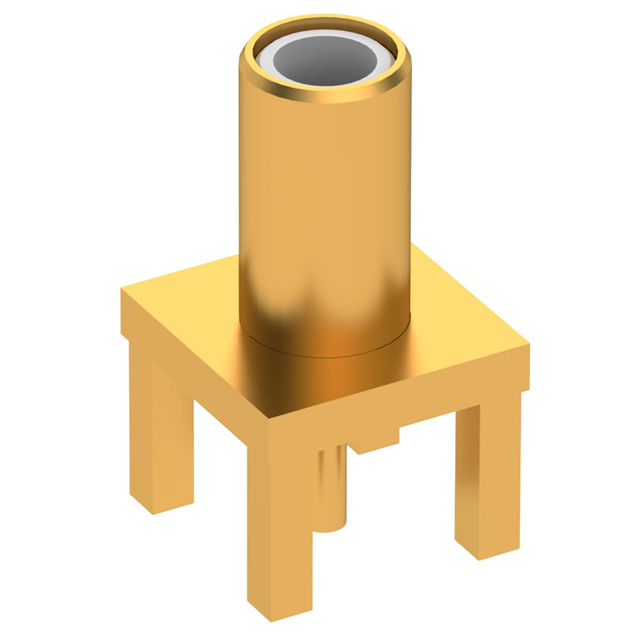

3009-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SLB M STR NA
| Part | Body Finish | Center Contact Plating | Dielectric Material | Insertion Loss | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Center Contact Material | Mounting Type | Number of Ports | Housing Color | Shield Termination | Contact Termination | Connector Type | Frequency - Max [Max] | Fastening Type | Connector Style | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Gold | Polytetrafluoroethylene (PTFE) | 0.3 dB | 500 | -65 ░C | 165 °C | Brass | Brass | Through Hole | 1 | Gold | Solder | Solder | Jack Male Pin | 4 GHz | Snap-On | SLB | 50 Ohms |
 Radiall USA, Inc. | Gold | Gold | Polytetrafluoroethylene (PTFE) | Brass | Brass | Through Hole | 1 | Gold | Solder | Solder | Jack Male Pin | Snap-On | SLB |
