5527 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

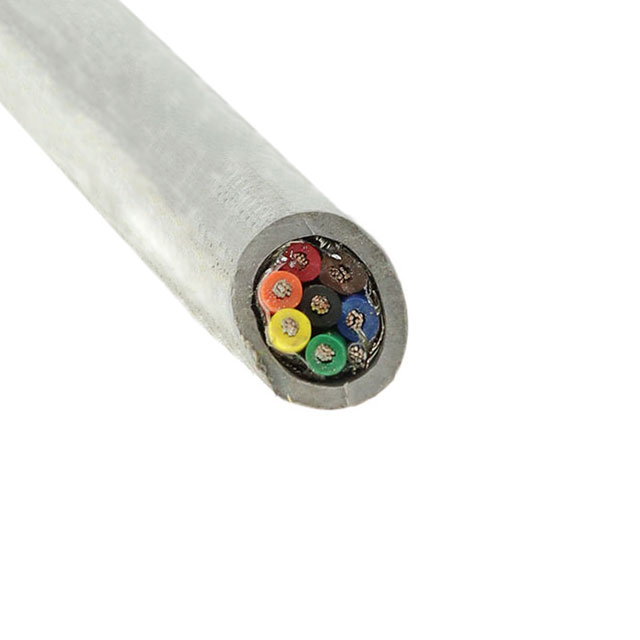

MULTICONDUCTOR CABLE, XTRA GUARD® 1, SHIELDED, 7 CONDUCTOR, 18 AWG, 0.81 MM², 100 FT, 30.5 M
| Part | Ratings | Usage | Length [x] | Length [x] | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Voltage | Conductor Material | Shield Material | Shield Type | Shield Coverage | Cable Type | Features | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Jacket Color | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | ISO 10993 UL Style 2501 | Communication Control | 30.5 m | 100 ft | -30 ░C | 105 ░C | 18 AWG | 600 V | Copper Tinned | Copper Tinned Suprashield® | Braid Foil | 70 % 100 % | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | 16 | 30 AWG | 7 | 1.6 mm | 0.063 in | Poly-Vinyl Chloride (PVC) | 0.494 in | 12.55 mm | Poly-Vinyl Chloride (PVC) | Slate | ||
ALPHA WIRE | ISO 10993 UL Style 2501 | Communication Control | -30 ░C | 105 ░C | 18 AWG | 600 V | Copper Tinned | Copper Tinned Suprashield® | Braid Foil | 70 % 100 % | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | 16 | 30 AWG | 7 | 1.6 mm | 0.063 in | Poly-Vinyl Chloride (PVC) | 0.494 in | 12.55 mm | Poly-Vinyl Chloride (PVC) | Slate | 1000 ft | 304.8 m | ||
ALPHA WIRE | ISO 10993 UL Style 2501 | Communication Control | -30 ░C | 105 ░C | 18 AWG | 600 V | Copper Tinned | Copper Tinned Suprashield® | Braid Foil | 70 % 100 % | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | 16 | 30 AWG | 7 | 1.6 mm | 0.063 in | Poly-Vinyl Chloride (PVC) | 0.494 in | 12.55 mm | Poly-Vinyl Chloride (PVC) | Black | 1000 ft | 304.8 m | ||
 ALPHA WIRE | ISO 10993 UL Style 2501 | Communication Control | 152.4 m | 500 ' | -30 ░C | 105 ░C | 18 AWG | 600 V | Copper Tinned | Copper Tinned Suprashield® | Braid Foil | 70 % 100 % | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | 16 | 30 AWG | 7 | 1.6 mm | 0.063 in | Poly-Vinyl Chloride (PVC) | 0.494 in | 12.55 mm | Poly-Vinyl Chloride (PVC) | Slate | ||
ALPHA WIRE | ISO 10993 UL Style 2501 | Communication Control | -30 ░C | 105 ░C | 18 AWG | 600 V | Copper Tinned | Copper Tinned Suprashield® | Braid Foil | 70 % 100 % | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | 16 | 30 AWG | 7 | 1.6 mm | 0.063 in | Poly-Vinyl Chloride (PVC) | 0.494 in | 12.55 mm | Poly-Vinyl Chloride (PVC) | Slate |
