3603-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

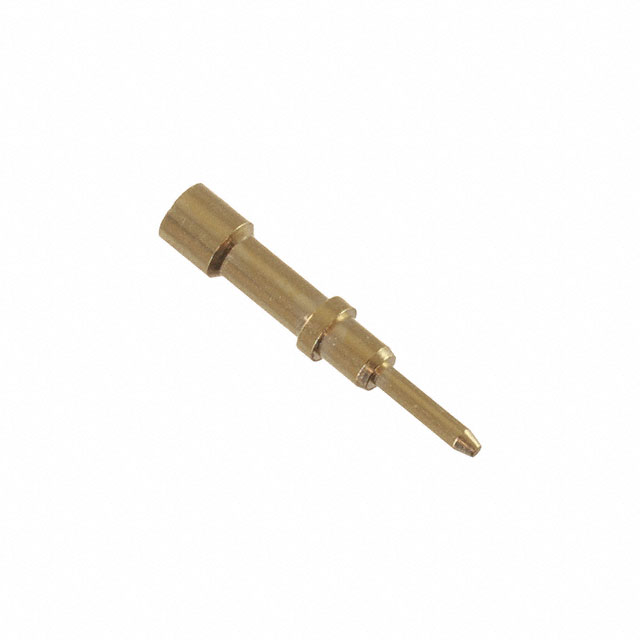

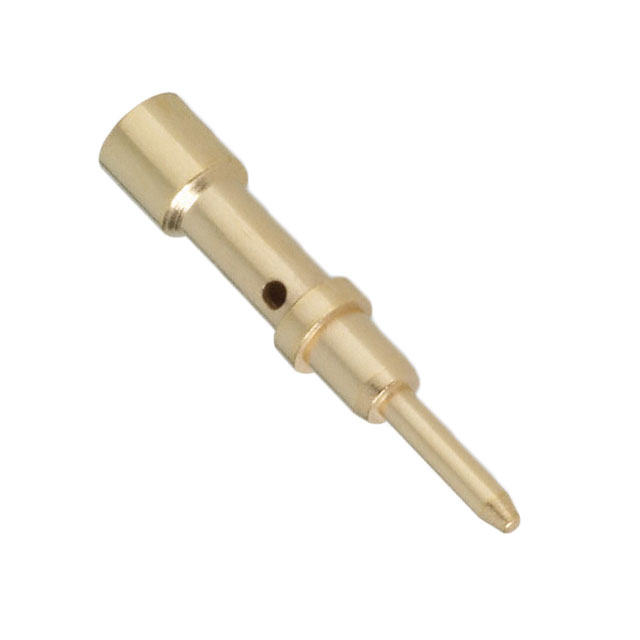

CONN PC PIN CIRC 0.040DIA GOLD
| Part | Terminal Style | Contact Finish | Contact Material | Insulation | Length - Overall [x] | Length - Overall [x] | Termination | Length - Below Flange [x] | Length - Below Flange [x] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Terminal Type | Length - Above Flange [x] | Length - Above Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Wire | Gold | Brass Alloy | Non-Insulated | 0.588 in | 14.94 mm | Crimp | 6.99 mm | 0.275 " | 20 µin | 0.51 µm | Free Hanging (In-Line) | PC Pin | 7.16 mm | 0.282 in | 0.04 in | 1.02 mm |
 Mill-Max Manufacturing Corp. | Wire | Gold | Brass Alloy | Non-Insulated | 0.588 in | 14.94 mm | Crimp | 6.99 mm | 0.275 " | 10 Áin | 0.25 Ám | Free Hanging (In-Line) | PC Pin | 7.16 mm | 0.282 in | 0.04 in | 1.02 mm |
