ECQ-E4823 Series

Manufacturer: Panasonic Electronic Components

Catalog

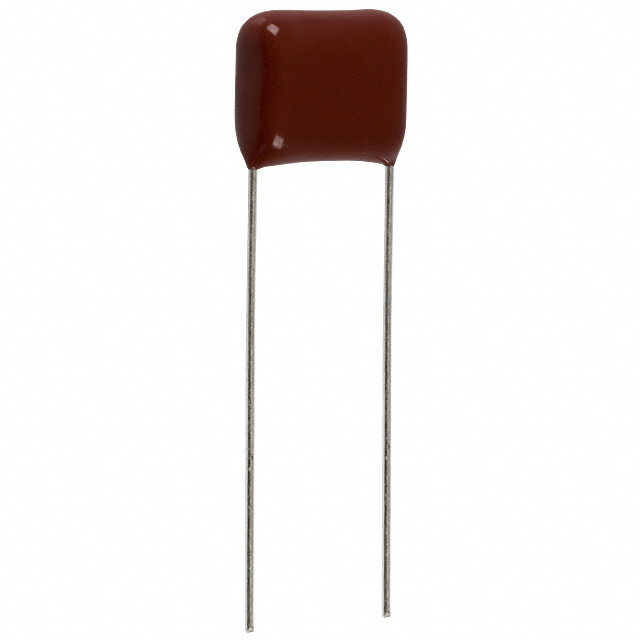

ECQE(F), MET POLYESTER FILM CAP RADIAL L ROHS COMPLIANT: YES

Part	Dielectric Material	Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Termination	Lead Spacing	Lead Spacing	Tolerance	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Height - Seated (Max) [Max]	Height - Seated (Max)
Panasonic Electronic Components ECQ-E4823KFW	Polyester Metallized	82 nF	5.8 mm	12 mm	0.228 in	0.472 in	Radial	PC Pins	0.394 in	10 mm	10 %	General Purpose	16 mm	0.63 in	Through Hole	-40 C	105 ░C	400 V
Panasonic Electronic Components ECQ-E4823JF9	Polyester Metallized	82 nF	5.8 mm	12 mm	0.228 in	0.472 in	Radial	PC Pins	0.197 "	5 mm	5 %	General Purpose	16 mm	0.63 in	Through Hole	-40 C	105 ░C	400 V
Panasonic Electronic Components ECQ-E4823JFW	Polyester Metallized	82 nF	5.8 mm	12 mm	0.228 in	0.472 in	Radial	PC Pins	0.394 in	10 mm	5 %	General Purpose	16 mm	0.63 in	Through Hole	-40 C	105 ░C	400 V
Panasonic Electronic Components ECQ-E4823KF3	Polyester Metallized	82 nF	5.8 mm	12 mm	0.228 in	0.472 in	Radial	PC Pins	0.197 "	5 mm	10 %	General Purpose	16 mm	0.63 in	Through Hole	-40 C	105 ░C	400 V
Panasonic Electronic Components ECQ-E4823KF	Polyester Metallized	82 nF	5.8 mm	12 mm	0.228 in	0.472 in	Radial	PC Pins	0.394 in	10 mm	10 %	General Purpose			Through Hole	-40 C	105 ░C	400 V	0.472 in	12 mm
Panasonic Electronic Components ECQ-E4823JFB	Polyester Metallized	82 nF	5.8 mm	12 mm	0.228 in	0.472 in	Radial	PC Pins	0.394 in	10 mm	5 %	General Purpose	16 mm	0.63 in	Through Hole	-40 C	105 ░C	400 V
Panasonic Electronic Components ECQ-E4823KFB	Polyester Metallized	82 nF	5.8 mm	12 mm	0.228 in	0.472 in	Radial	PC Pins	0.394 in	10 mm	10 %	General Purpose	16 mm	0.63 in	Through Hole	-40 C	105 ░C	400 V
