19K202 Series
Manufacturer: Rosenberger
Beta
⌘K
CONN SMP JACK R/A 50OHM SOLDER
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Center Contact Plating | Includes | Body Finish | Body Material | Voltage Rating | Center Contact Material | Housing Color | Mounting Type | Shield Termination | Frequency - Max [Max] | Impedance | Fastening Type | Contact Termination | Number of Ports | Connector Type | Cable Group | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

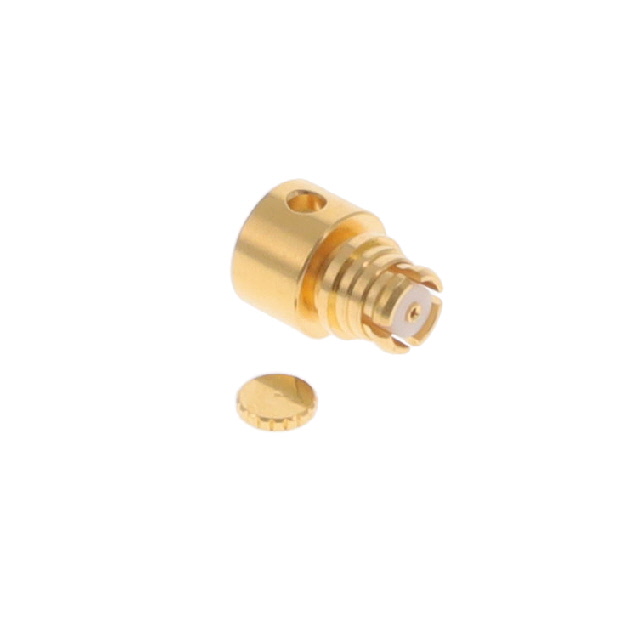

 Rosenberger | 155 C | -65 ░C | Polytetrafluoroethylene (PTFE) | Gold | 1 Connector 1 End Cap 1 Insulator | Gold | Beryllium Copper | 335 V | Beryllium Copper | Gold | Free Hanging (In-Line) Right Angle | Solder | 26.5 GHz | 50 Ohms | Snap-On | Solder | 1 | Female Socket Jack | UT-47 | |

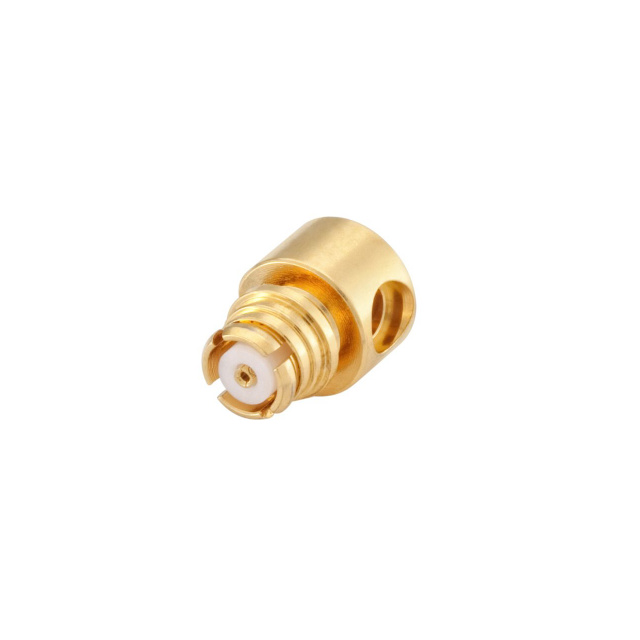

 Rosenberger | 155 C | -65 ░C | Polytetrafluoroethylene (PTFE) | Gold | Gold | Beryllium Copper | 335 V | Beryllium Copper | Gold | Free Hanging (In-Line) | Solder | 26.5 GHz | 50 Ohms | Snap-On | Solder | 1 | Female Socket Jack | UT-47 | 1000 | |

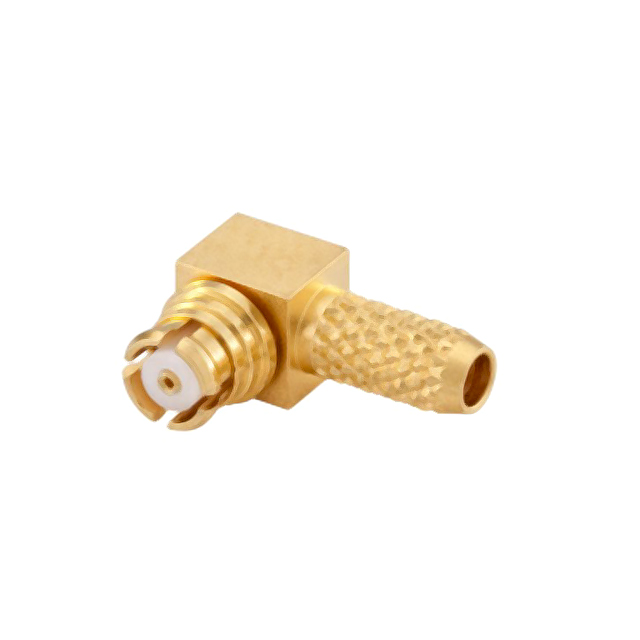

 Rosenberger | 155 C | -65 ░C | Polytetrafluoroethylene (PTFE) | Gold | 1 Connector 1 End Cap | Gold | Brass | 335 V | Beryllium Copper | Gold | Free Hanging (In-Line) Right Angle | Crimp | 26.5 GHz | 50 Ohms | Snap-On | Solder | 1 | Female Socket Jack | 196A RG-178B | |

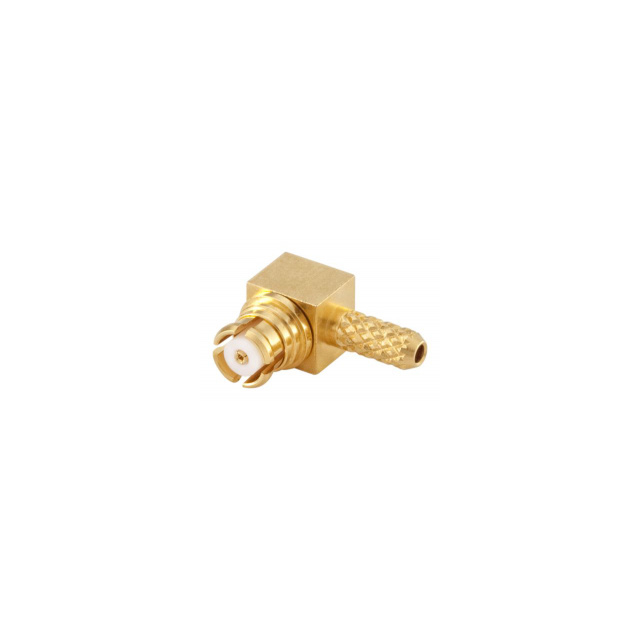

 Rosenberger | 155 C | -65 ░C | Polytetrafluoroethylene (PTFE) | Gold | Gold | Bronze | 335 V | Beryllium Copper | Gold | Free Hanging (In-Line) Right Angle | Crimp | 26.5 GHz | 50 Ohms | Snap-On | Solder | 1 | Female Socket Jack | 196A RG-178B | 1000 |
