1299/15C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

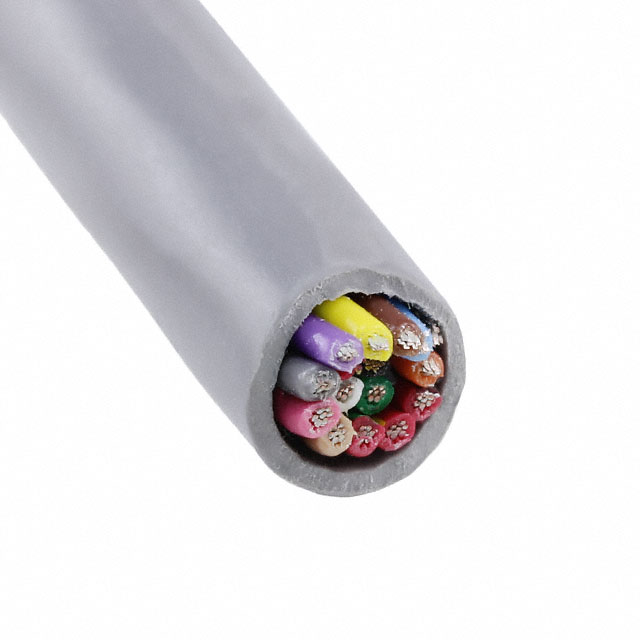

CABLE 15COND 22AWG SHLD 1000'
| Part | Shield Coverage | Shield Material | Shield Type | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Voltage | Number of Conductors | Length | Length | Wire Gauge | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Features | Conductor Material | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Foil | Slate | 0.813 mm | 0.032 in | Multi-Conductor | 300 VDC | 15 | 304.8 m | 1000 ft | 22 AWG | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | Drain Wire | Copper Tinned | Communication Control | 7.57 mm | 0.298 " | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | ||
ALPHA WIRE | 100 % | Aluminum | Foil | Slate | 0.813 mm | 0.032 in | Multi-Conductor | 300 VDC | 15 | 22 AWG | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | Drain Wire | Copper Tinned | Communication Control | 7.57 mm | 0.298 " | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | 100 ft | 30.5 m |
