WP7113 Series

Catalog

5MM INFRARED LED

...

Part	Wavelength	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Radiant Intensity (Ie) Min @ If [Min]	Type	Current - DC Forward (If) (Max)	Package / Case	Mounting Type	Viewing Angle	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Configuration	Lens Transparency	Wavelength - Dominant	Millicandela Rating	Supplier Device Package	Color	Lens Style	Lens Color	Current - Test	Height (Max) [Max] [z]	Size / Dimension [diameter]	Lens Size	Lens Size
Kingbright WP7113SF4BT-P22	880 nm	Top View	85 °C	-40 C	12 mW/sr	Infrared (IR)	50 mA	Radial	Through Hole	20 °	1.3 V
Kingbright WP7113ID14V								Radial	Through Hole	30 °		627 nm	Standard	Diffused	617 nm	22 mcd	T-1 3/4	Red	Round with Domed Top	Red	10.5 mA	8.6 mm	5 mm	5 mm	T-1 3/4
Kingbright WP7113ZGCK								Radial	Through Hole	20 °	3.3 V	515 nm	Standard	Clear	525 nm	12000 mcd	T-1 3/4	Green	Round with Domed Top	Colorless	20 mA	8.6 mm	5 mm	5 mm	T-1 3/4
Kingbright WP7113SURDK								Radial	Through Hole	30 °	1.95 V	645 nm		Diffused	630 nm	1300 mcd	T-1 3/4 (5mm)	Red	Round with Domed Top	Red	20 mA	9.85 mm	5 mm	5 mm	T-1 3/4
Kingbright WP7113SEC								Radial	Through Hole	20 °	2 V	610 nm	Standard	Clear	601 nm	2200 mcd	T-1 3/4		Round with Domed Top	Colorless	20 mA	8.6 mm	5 mm	5 mm	T-1 3/4

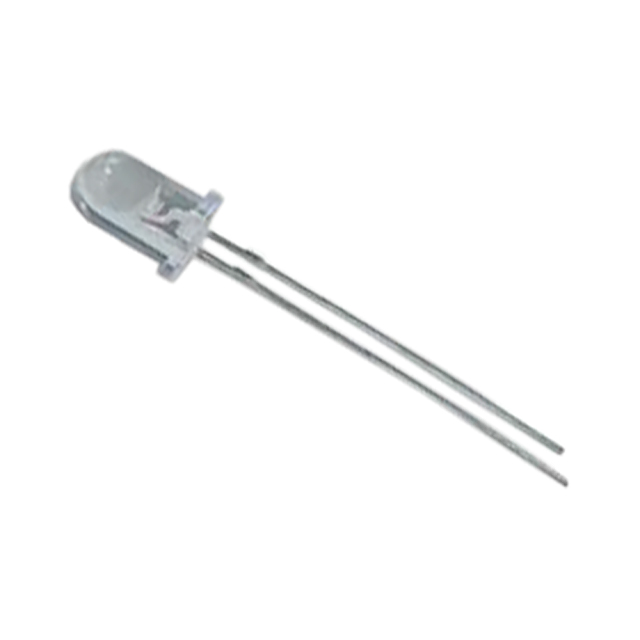

Kingbright WP7113F3C	940 nm	Top View	85 C	-40 ¯C	15 mW/sr	Infrared (IR)	50 mA	Radial	Through Hole	20 °
Kingbright WP7113NC								Radial	Through Hole	20 °	2.05 V	607 nm	Standard	Clear	602 nm	70 mcd	T-1 3/4		Round with Domed Top	Colorless	20 mA	8.6 mm	5 mm	5 mm	T-1 3/4

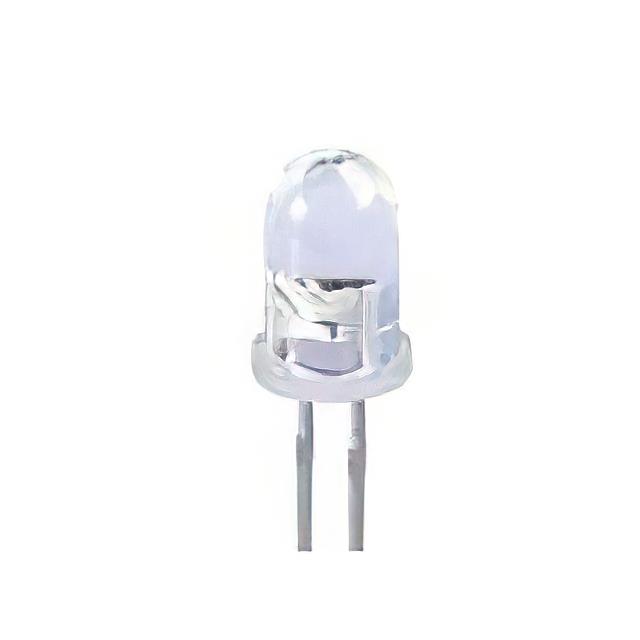

Kingbright WP7113SURCK								Radial	Through Hole	20 °	1.95 V	645 nm		Clear	630 nm	4200 mcd	T-1 3/4 (5mm)	Red	Round with Domed Top	Colorless	20 mA	9.85 mm	5 mm	5 mm	T-1 3/4
Kingbright WP7113SURDK14V								Radial	Through Hole	30 °	16 V	645 nm		Diffused	630 nm	300 mcd	T-1 3/4 (5mm)	Red	Round with Domed Top	Red		9.85 mm	5 mm	5 mm	T-1 3/4
Kingbright WP7113SYT								Radial	Through Hole	20 °	2 V	590 nm	Standard	Clear	590 nm	3100 mcd	T-1 3/4	Yellow	Round with Domed Top	Yellow	20 mA	8.6 mm	5 mm	5 mm	T-1 3/4
