LPPB101 Series

Catalog

CONN HDR 10POS 0.05 GOLD SMD

Part	Pitch - Mating	Pitch - Mating	Contact Material	Insulation Color	Contact Type	Insulation Material	Contact Finish Thickness - Mating	Contact Finish - Post	Connector Type	Contact Shape	Contact Finish Thickness - Post	Material Flammability Rating	Mounting Type	Termination	Fastening Type	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Finish - Mating	Number of Positions	Insulation Height	Insulation Height
Sullins Connector Solutions LPPB101NFSD-RC	0.05 in	1.27 mm	Phosphor Bronze	Black	Female Socket	Liquid Crystal Polymer (LCP)	Flash	Gold	Header Top or Bottom Entry	Square	Flash	UL94 V-0	Surface Mount	Solder	Push-Pull	All	125 °C	-40 °C	1	Gold	10	4.65 mm	0.183 in

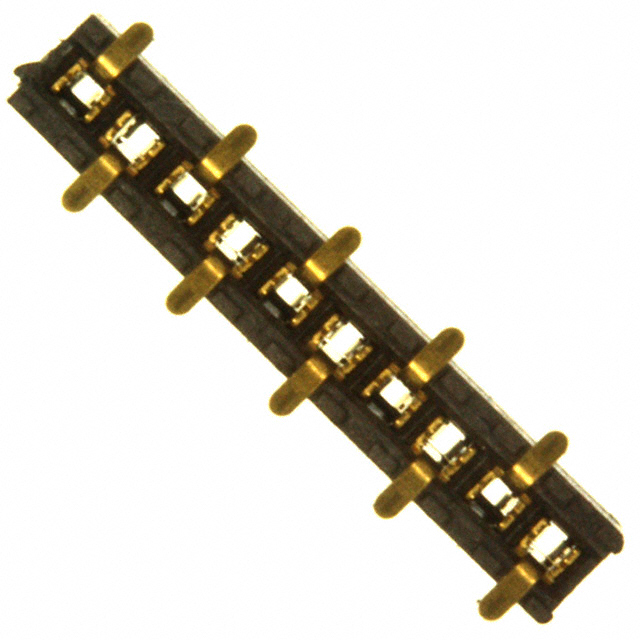

Sullins Connector Solutions LPPB101NFSC-RC	0.05 in	1.27 mm	Phosphor Bronze	Black	Female Socket	Liquid Crystal Polymer (LCP)	Flash	Gold	Header Top or Bottom Entry	Square	Flash	UL94 V-0	Surface Mount	Solder	Push-Pull	All	125 °C	-40 °C	1	Gold	10	4.65 mm	0.183 in
