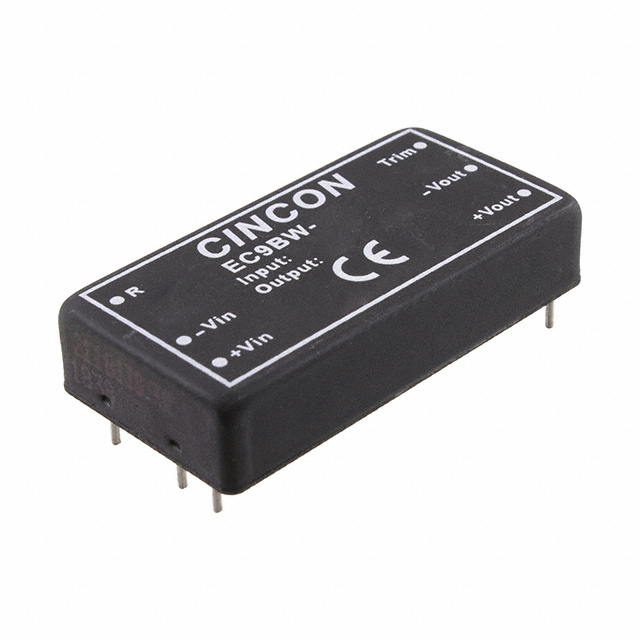

EC9BW Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
DC DC CONVERTER 12V 30W
| Part | Voltage - Input (Min) [Min] | Number of Outputs | Voltage - Isolation | Control Features | Power (Watts) | Voltage - Input (Max) [Max] | Mounting Type | Voltage - Output 1 | Size / Dimension | Applications | Standard Number | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Package / Case | Features | Current - Output (Max) [Max] | Type | Voltage - Output 2 | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | 9 V | 1 | 1.5 kV | Active Low Enable | 30 Watts | 36 V | Through Hole | 12 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) | 60950-1 | CE | -40 °C | 85 °C | 90.5 % | 6-DIP Module | OCP OTP OVP Remote On/Off SCP UVLO | 2.5 A | Isolated Module | ||
Cincon Electronics Co. LTD | 18 V | 2 | 1.5 kV | Active Low Enable | 30 Watts | 75 V | Through Hole | 15 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) | 60950-1 | CE | -40 °C | 85 °C | 91 % | 6-DIP Module | OCP OTP OVP Remote On/Off SCP UVLO | Isolated Module | -15 V | 1 A | |
Cincon Electronics Co. LTD | 9 V | 1 | 1.5 kV | Active High Enable | 30 Watts | 36 V | Through Hole | 5 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) | 60950-1 | CE | -40 °C | 85 °C | 6-DIP Module | OCP OTP OVP Remote On/Off SCP UVLO | 6 A | Isolated Module | |||
Cincon Electronics Co. LTD | 9 V | 1 | 1.5 kV | Active Low Enable | 30 Watts | 36 V | Through Hole | 5 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) | 60950-1 | CE | -40 °C | 85 °C | 6-DIP Module | OCP OTP OVP Remote On/Off SCP UVLO | 6 A | Isolated Module | |||
Cincon Electronics Co. LTD | 18 V | 1 | 1.5 kV | Active Low Enable | 30 Watts | 75 V | Through Hole | 15 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) | 60950-1 | CE | -40 °C | 85 °C | 91 % | 6-DIP Module | OCP OTP OVP Remote On/Off SCP UVLO | 2 A | Isolated Module | ||
Cincon Electronics Co. LTD | 9 V | 1 | 1.5 kV | Active High Enable | 30 Watts | 36 V | Through Hole | 15 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) | 60950-1 | CE | -40 °C | 85 °C | 90.5 % | 6-DIP Module | OCP OTP OVP Remote On/Off SCP UVLO | 2 A | Isolated Module | ||
Cincon Electronics Co. LTD | 18 V | 1 | 1.5 kV | Active Low Enable | 25 W | 75 V | Through Hole | 3.3 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) | 60950-1 | CE | -40 °C | 85 °C | 87.5 % | 6-DIP Module | OCP OTP OVP Remote On/Off SCP UVLO | 7.5 A | Isolated Module | ||
Cincon Electronics Co. LTD | 18 V | 2 | 1.5 kV | Active High Enable | 30 Watts | 75 V | Through Hole | 12 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) | 60950-1 | CE | -40 °C | 85 °C | 90.5 % | 6-DIP Module | OCP OTP OVP Remote On/Off SCP UVLO | Isolated Module | -12 V | 1.25 A | |
Cincon Electronics Co. LTD | 9 V | 2 | 1.5 kV | Active Low Enable | 30 Watts | 36 V | Through Hole | 15 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) | 60950-1 | CE | -40 °C | 85 °C | 91 % | 6-DIP Module | OCP OTP OVP Remote On/Off SCP UVLO | Isolated Module | -15 V | 1 A | |
Cincon Electronics Co. LTD | 9 V | 2 | 1.5 kV | Active Low Enable | 30 Watts | 36 V | Through Hole | 12 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) | 60950-1 | CE | -40 °C | 85 °C | 90.5 % | 6-DIP Module | OCP OTP OVP Remote On/Off SCP UVLO | Isolated Module | -12 V | 1.25 A |
